Home Product Peripherals T-FORCE SIREN GD120S AIO SSD Cooler Black

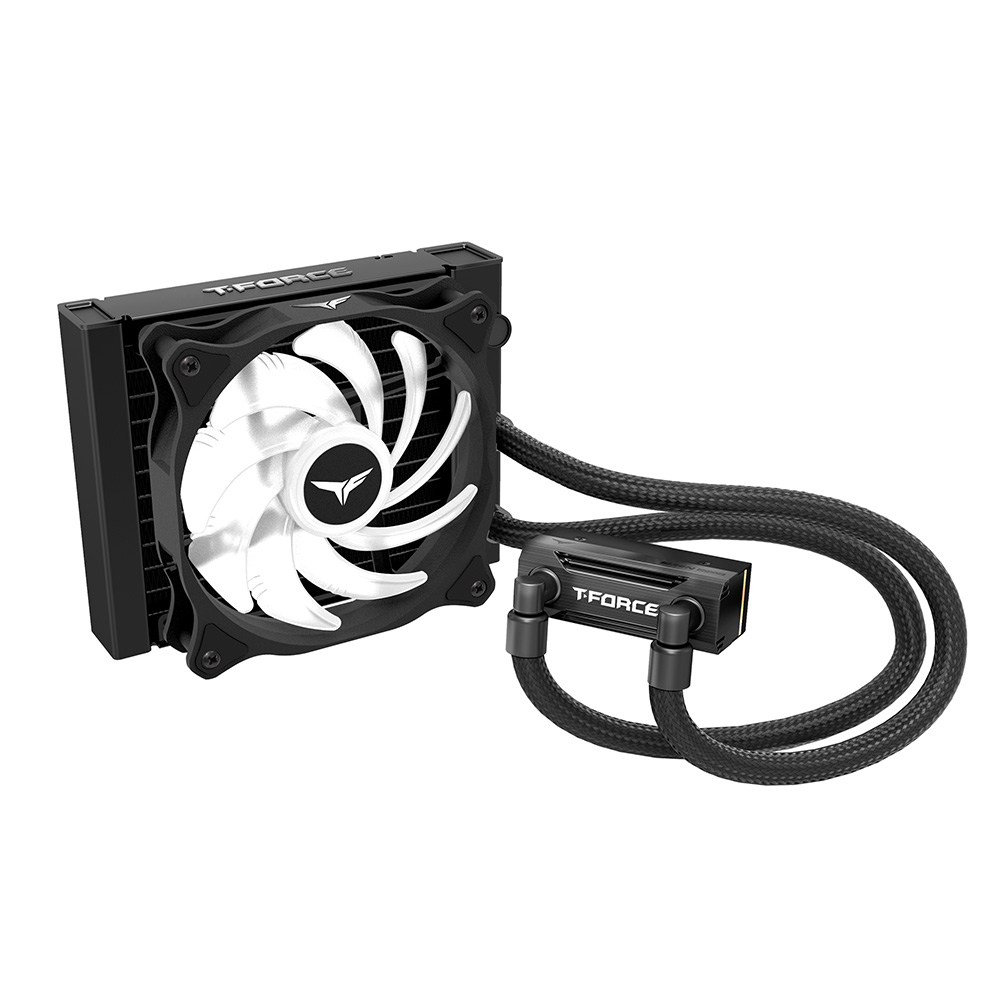

SIREN GD120S AIO SSD Cooler Black

Feature
  • The groundbreaking M.2 2280 SSD AIO liquid cooler
  • Dedicated aluminum alloy double tube water block and copper plate enhance heat cooling performance
  • Outstanding water pump structure design
  • 120mm cooling radiator
  • ARGB Intelligent PWM fan
  • Environmental sustainability and Earth conversation
  • Taiwan Invention Patent (number: I778726)
5-year limited warranty
RGB Lighting Effect
PWM
Patent Certification
Low Noise
Enhanced Tube

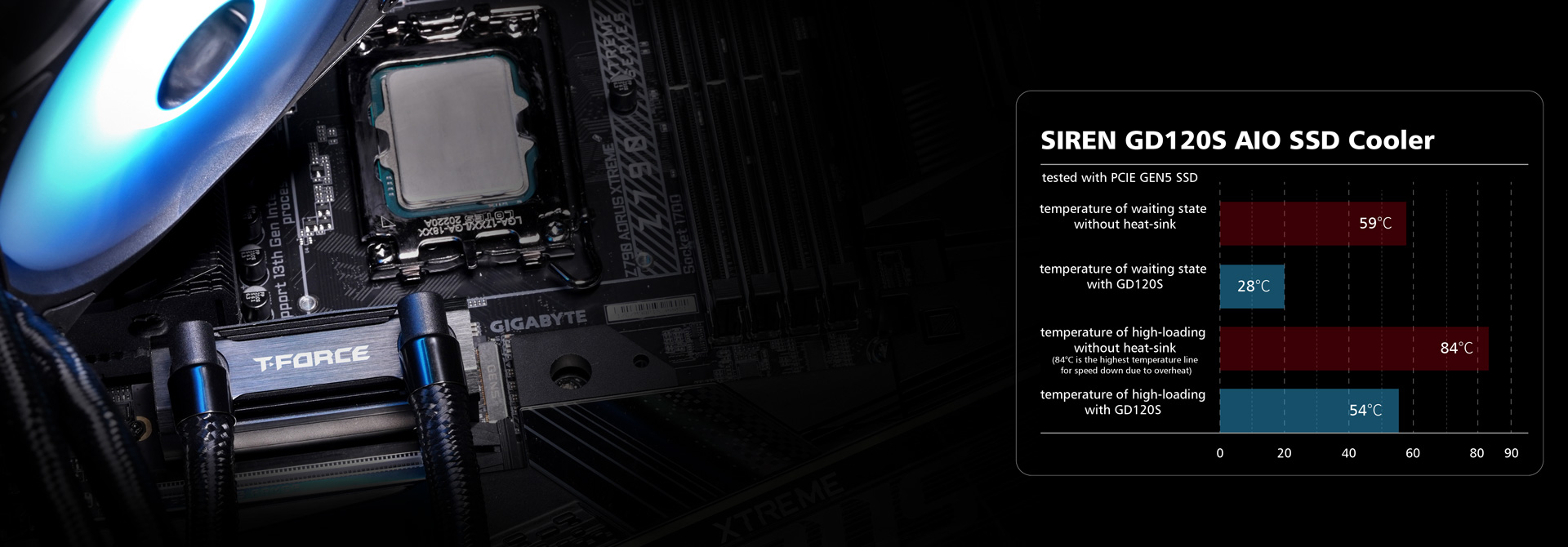

The groundbreaking M.2 2280 SSD AIO liquid cooler

The groundbreaking M.2 2280 SSD AIO liquid cooler

T-FORCE SIREN GD120S AIO SSD Cooler is the groundbreaking M.2 2280 SSD AIO liquid cooler. With the SSD water cooler head perfectly compatible with M.2 2280 SSD, the product offers incredible cooling performance of 35 %.

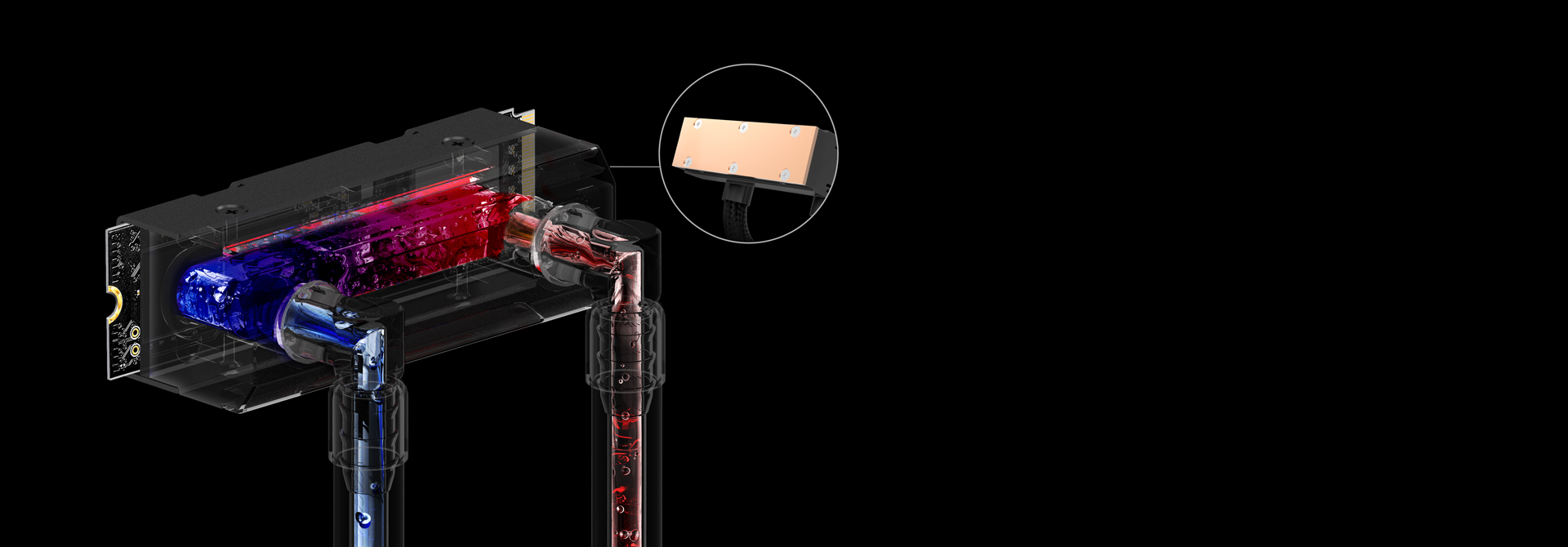

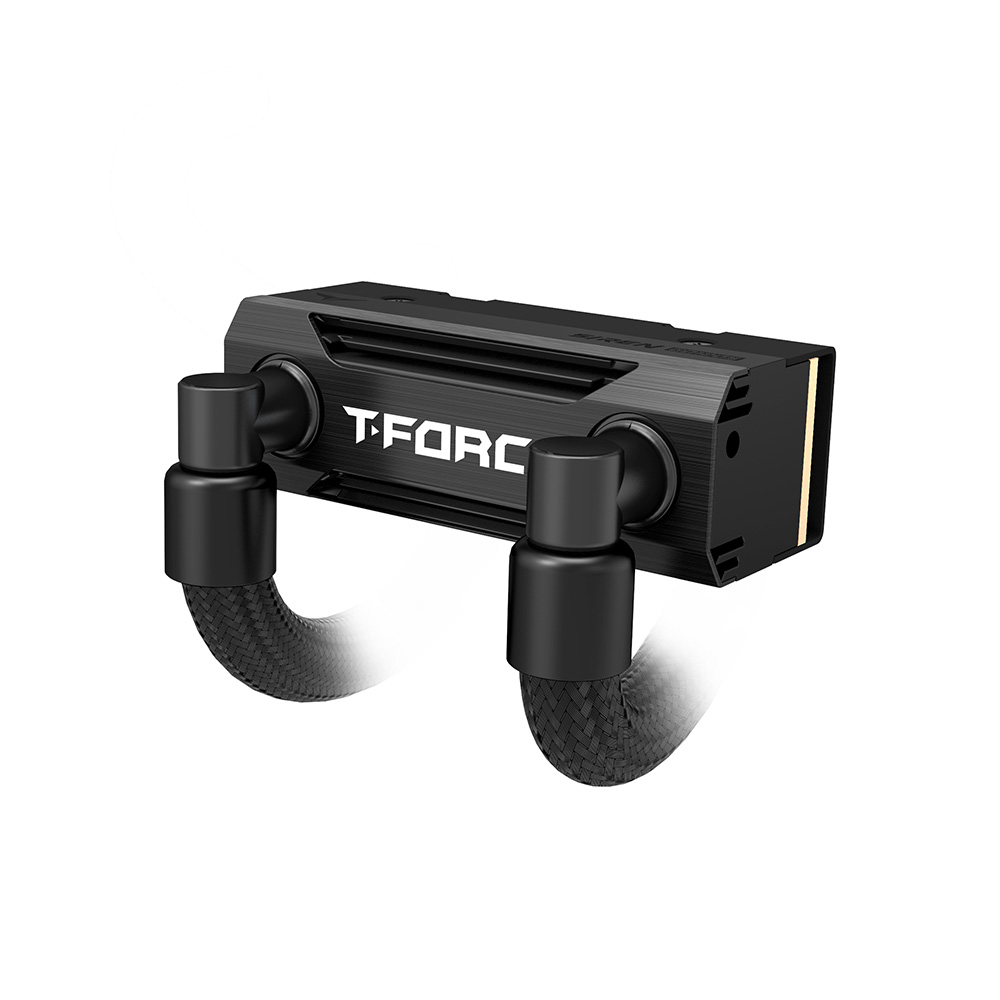

Dedicated aluminum alloy double tube water block and copper plate enhance heat cooling performance

Dedicated aluminum alloy double tube water block and copper plate enhance heat cooling performance

Dedicated aluminum alloy double tube and SSD water block together with a rack particularly designed for M.2 2280 PCIe form factor which allows the SSD to be mounted on the copper plate, providing excellent cooling performance.

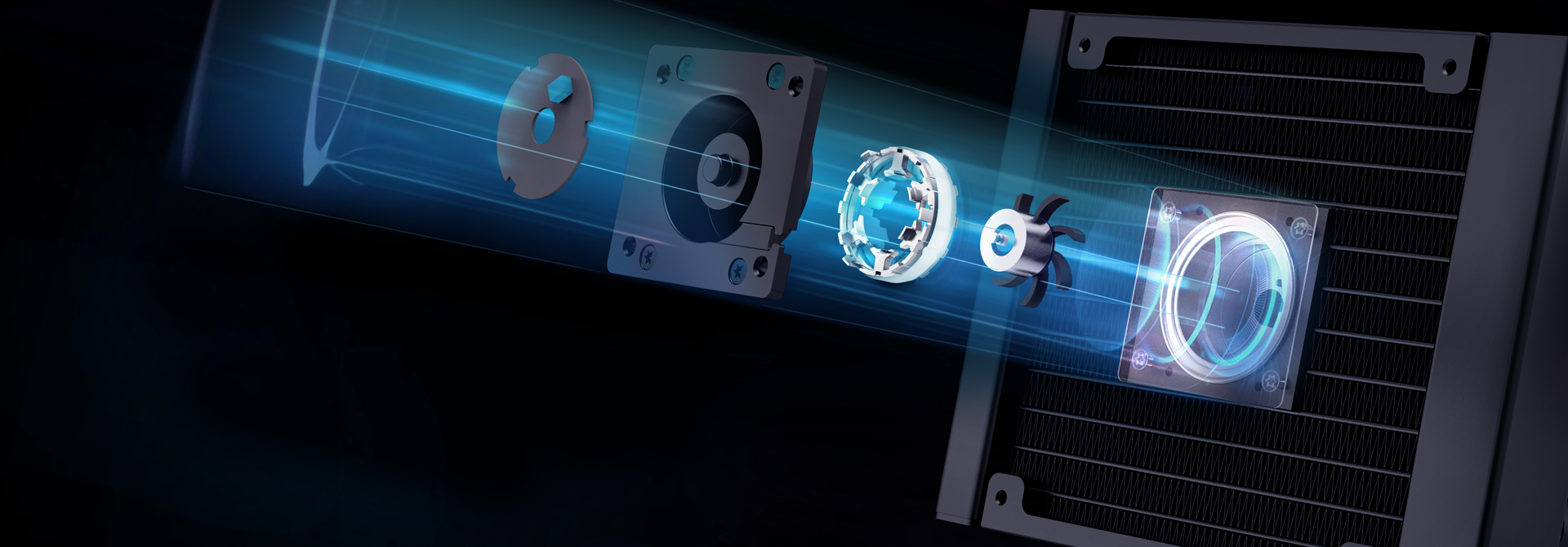

Outstanding water pump structure design

Outstanding water pump structure design

The water pump has a porcelain axis and a three-phase silent motor, allowing for operation room with low noise-level and high efficiency.

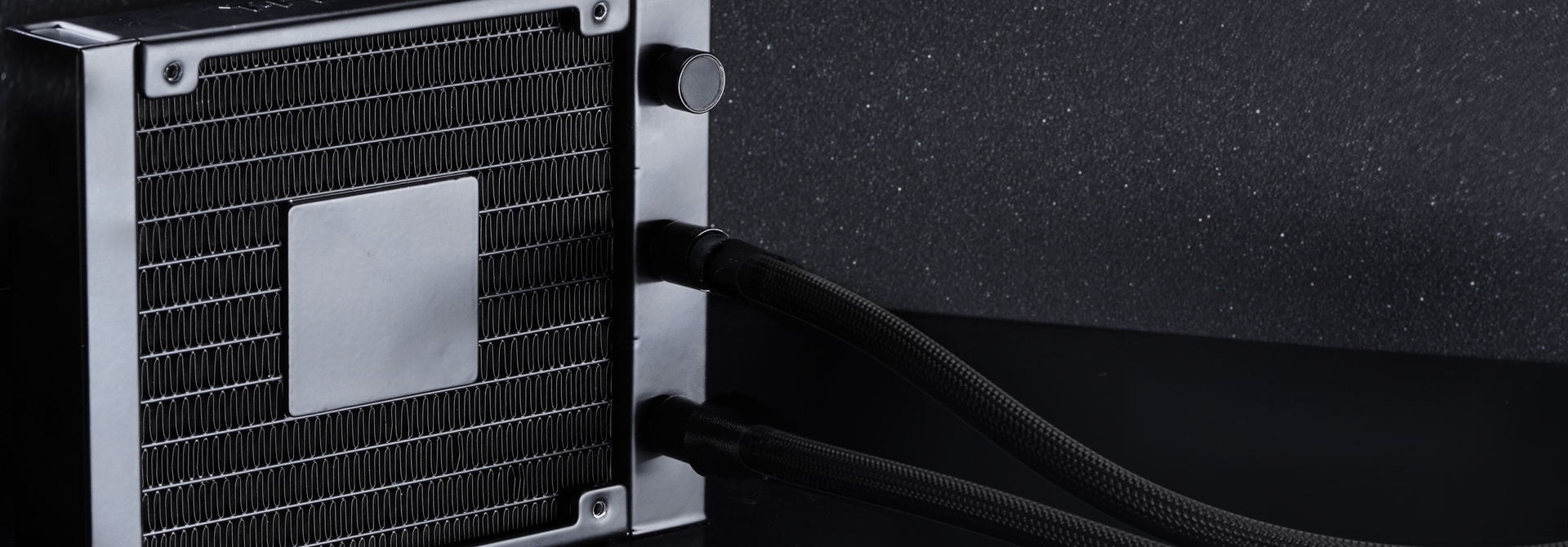

120mm cooling radiator

120mm cooling radiator

The SSD cooler adopts 120mm cooling radiator and 13 high-density jet fins. With the increased contact area, it makes SSD heat out efficiently.

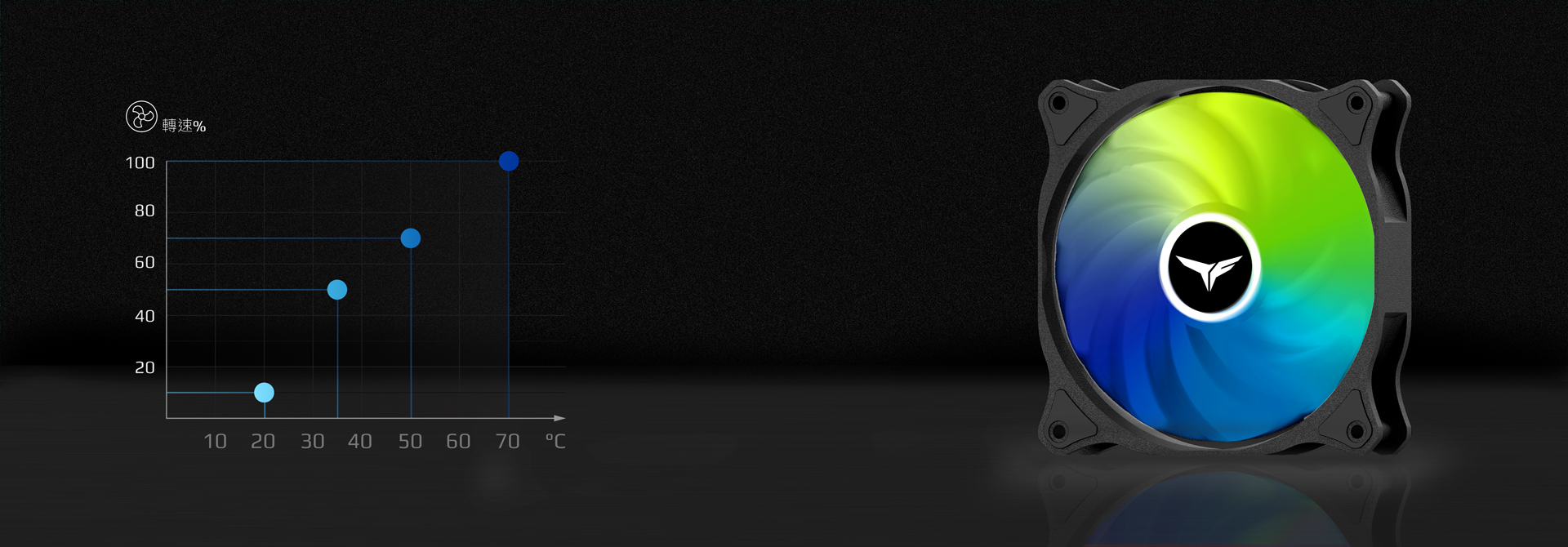

ARGB Intelligent PWM fan

ARGB Intelligent PWM fan

The ARGB intelligent PWM fan precisely adjusts fan speed by temperature,
thereby reaching optimum heat dissipation to save energy and electricity.
Environmental sustainability and Earth conversation

Environmental sustainability and Earth conversation

The entire manufacturing process adopts eco-friendly methods having passed RoHS environmental protection certifications. The product uses recyclable packaging, contributing to environmental sustainability endeavors and Earth conversation.
07
Product Specifications
SSD Socket NVMe M.2 2280
Water Block Dimension 70 x 23.8 x 28.7 mm
Block Plate Copper
Block Aluminum
Radiator Dimension 120 x 120 x 27 mm
Material Aluminum
Pump Speed 4000±10% RPM
Rated Current 0.34 A (0.45 A MAX)
Power Consumption 4.08 W (5.4 W MAX)
Noise 22 dBA
Flow 850 ml/min
Operating Temperature -20℃~+60℃
Storage Temperature -20℃~+70℃
Fan Number of Fans 1
Dimension 120 x 120 x 25 mm
Rated Voltage 12 V
Control Method 4-pin PWM
Power Consumption 1.68-3.84 W (LED 3.12 W)
Speed 600-2200 RPM
Noise 14.3-35.6 dBA
Air Flow 25.62-93.97 CFM
Air Pressure 0.26-3.53 mm-H2O
Tube Length: 400 mm
Accessories ARGB Splitter Cable x1
Warranty 5 year warranty
Notes
  • For more details about how to control the lighting effect by the software(ASUS Aura Sync / GIGABYTE RGB Fusion / MSI Mystic Light Sync / ASROCK-Polychrome Sync / BIOSTAR Advanced VIVID LED DJ), please visit the official website of the software developer(ASUS/GIGABYTE/MSI/ASRock).
  • All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.
  • To learn more about AIO Liquid Cooler warranty terms , please click here.
  • We reserve the right to modify product specifications without prior notice.
