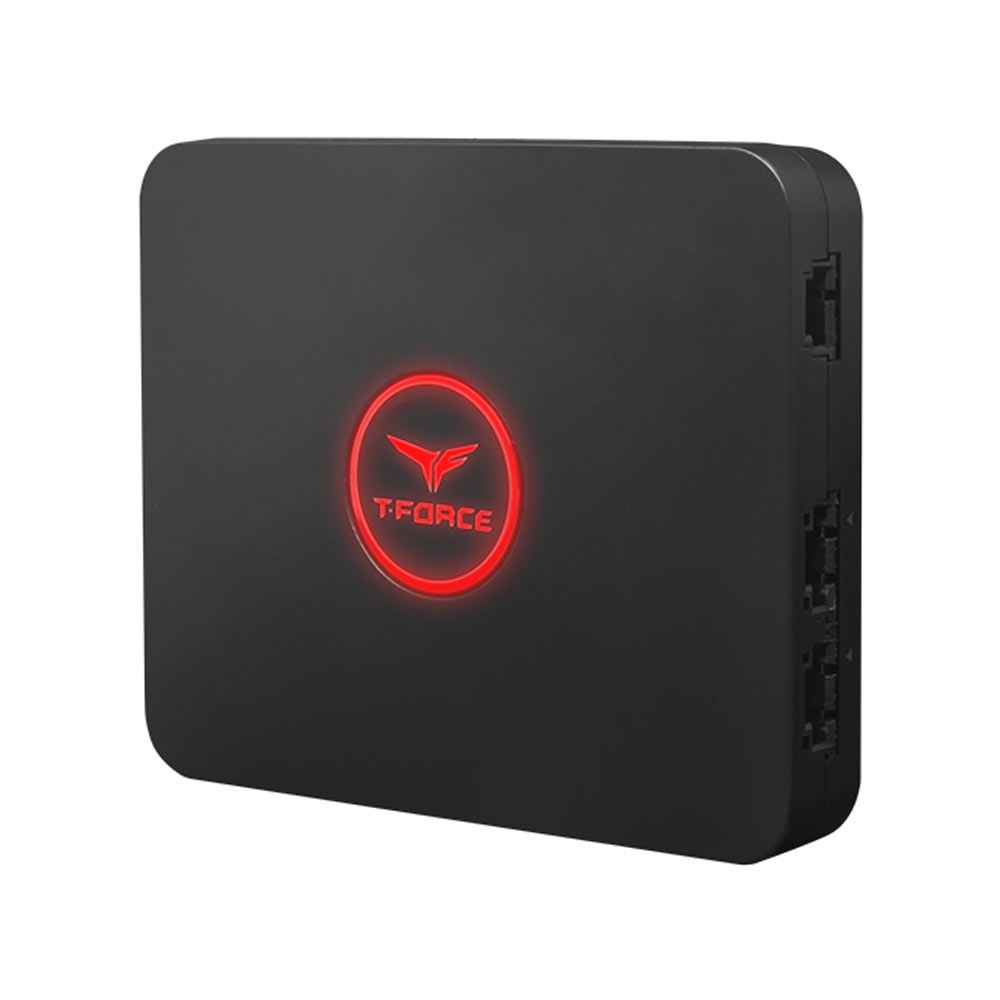

CAPTAIN RGB Control Box & RGB Strip
Feature
- Expandable support for addressable LED strips, fans and devices
- Automatic identification and automatic switching
- Support lighting effect control and software synchronization
- Independent lighting effect hardware control
- Taiwan Utility PATENT (number: M583184)
- Chinese Utility Patent (number：CN 210042292 U)
Introduction
Switch automatically with smart identification

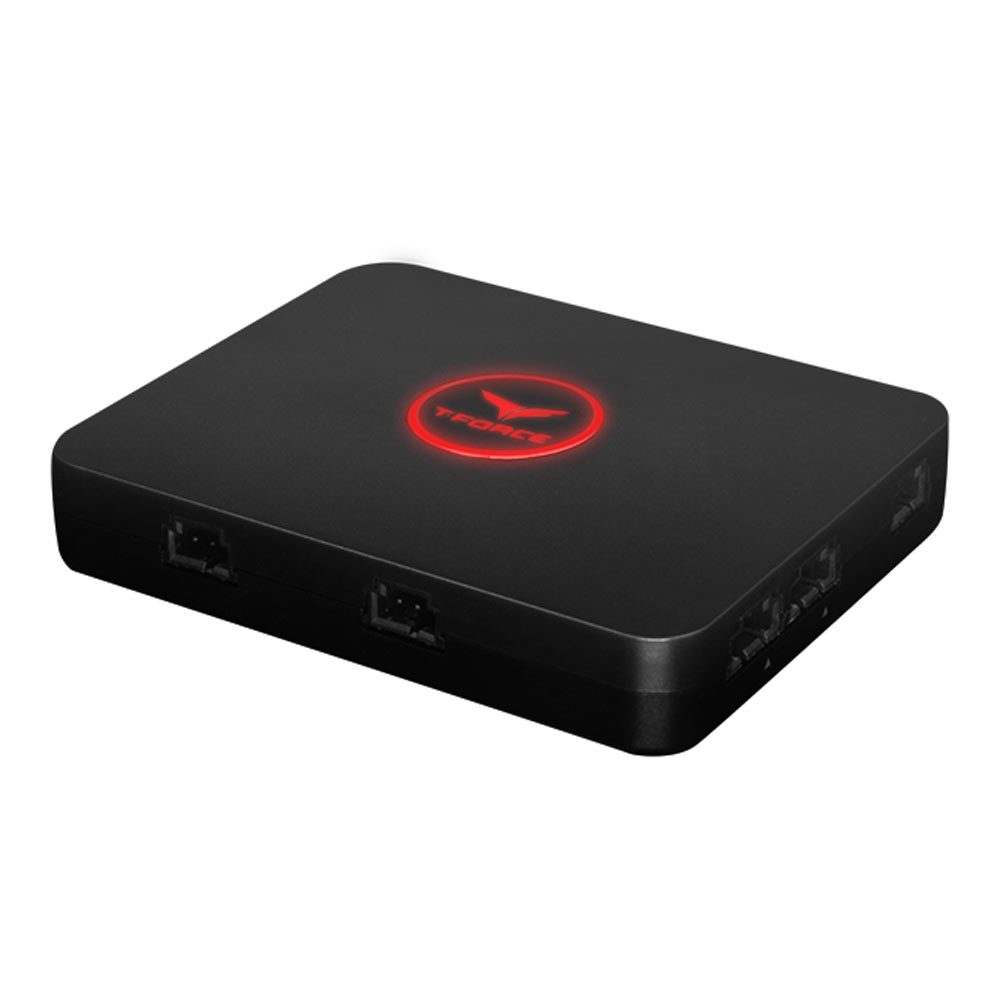

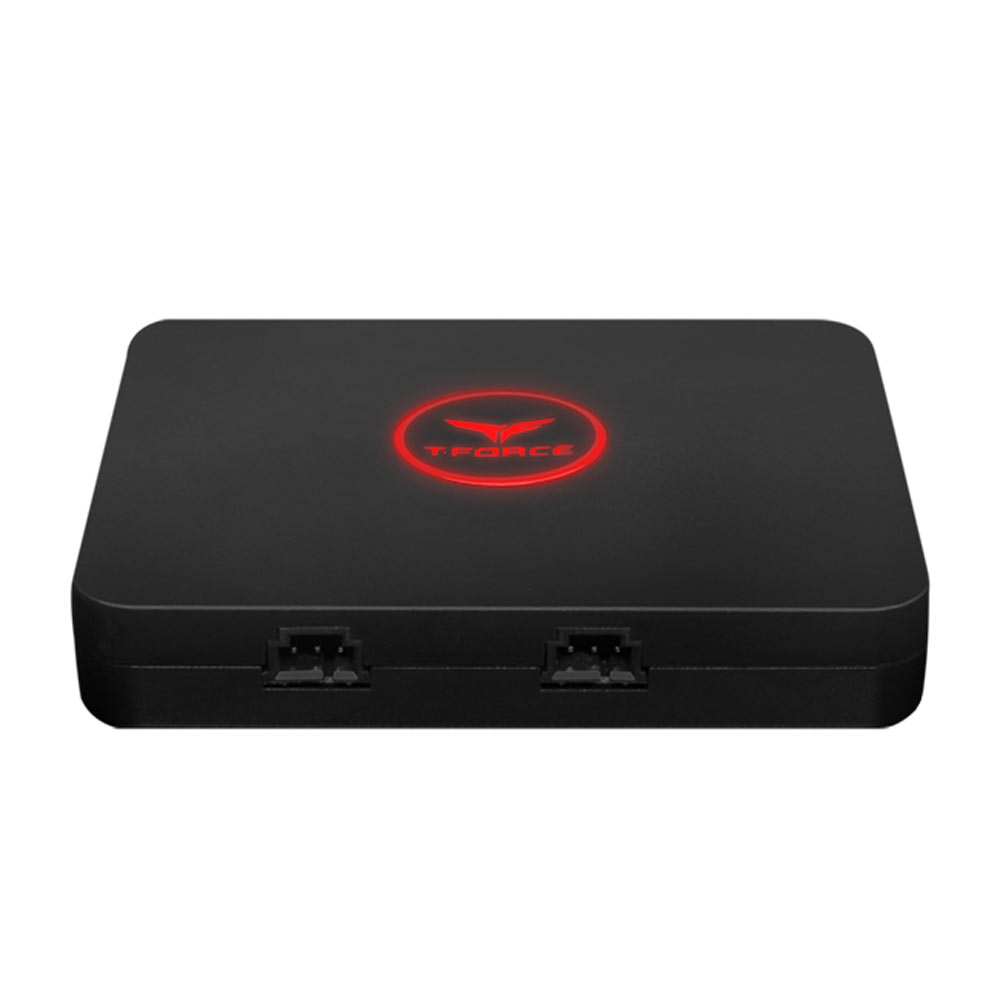

T-FORCE CAPTAIN RGB Control Box supports 4 5V ARGB output connectors and 1 12 V RGB output connector. In addition, it has smart identification ability to automatically detect external signals (5V ARGB signal/ 12V RGB signal). When detecting external RGB control signals (5V ARGB signals/ 12V RGB signal) from the motherboard, it will automatically switch to be controlled by motherboard's RGB software, so that the lighting effect is perfectly synchronized to create a dazzling gaming space. When there is no external signal, then the built-in lighting effect of T-FORCE CAPTAIN RGB Control Box controls the lighting effect. Through T-FORCE CAPTAIN RGB Control Box's physical button, personal style lighting effects can be switched and turned on instantly. So motherboards that do not support RGB lighting effect can also create eye-catching lighting effects.
Colorful and eye-catching

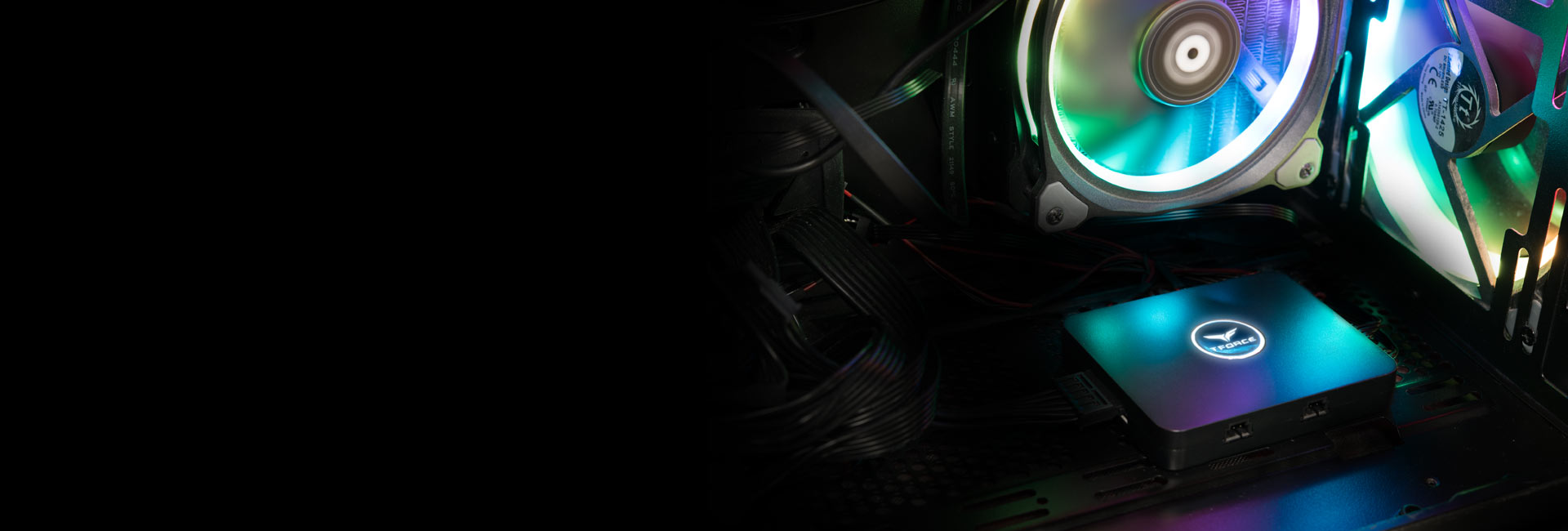

T-FORCE CAPTAIN RGB Control Box has five built-in colorful lighting effects. Just plug in the power (SATA power) and it will support ARGB and RGB devices immediately. It can support up to 4 sets of ARGB and one set of RGB strip or fan unit. Under the coordination of T-FORCE CAPTAIN RGB Control Box, the lighting effect can be extended harmoniously throughout the whole computer system. The overall visual effect is taken to the next level to create an imaginary space for gamers.
Glorious and simple style with ingenuity

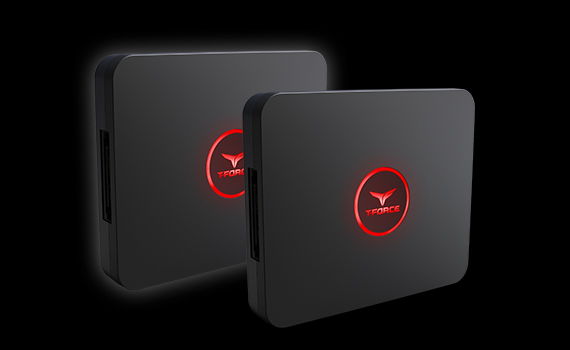

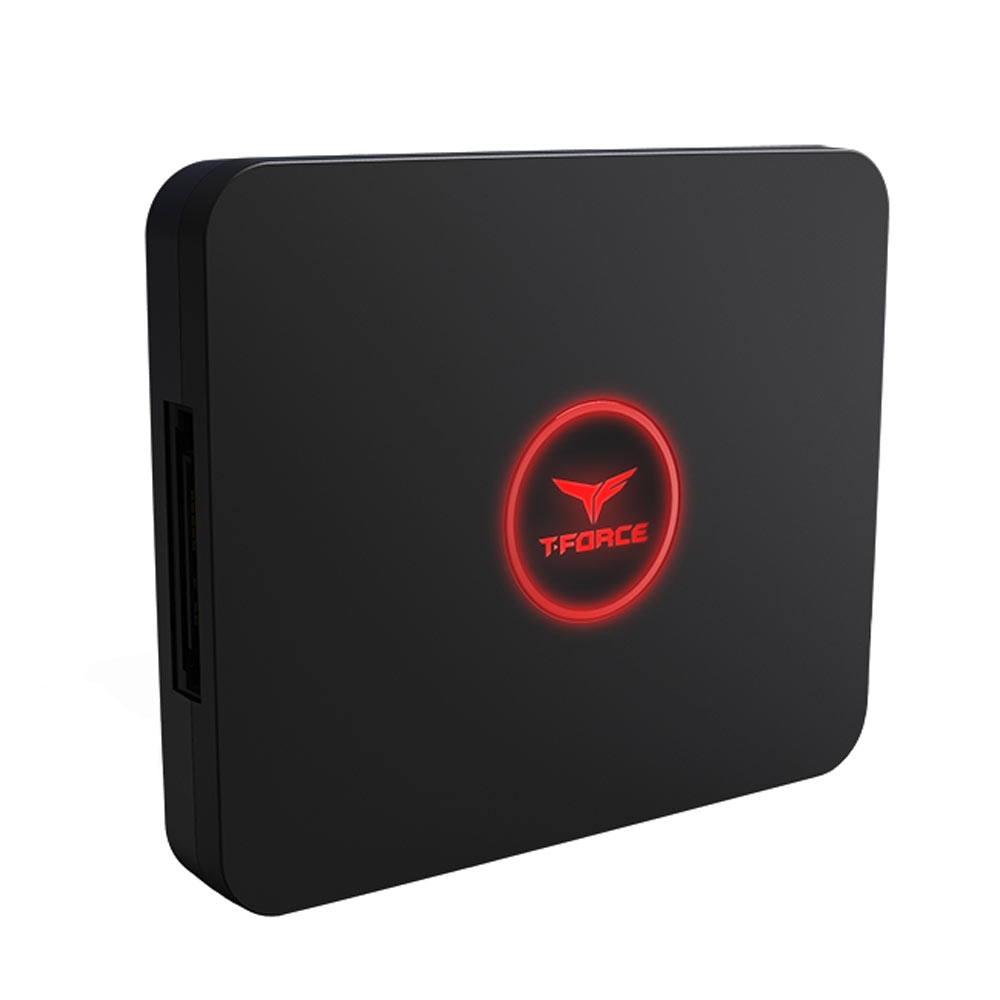

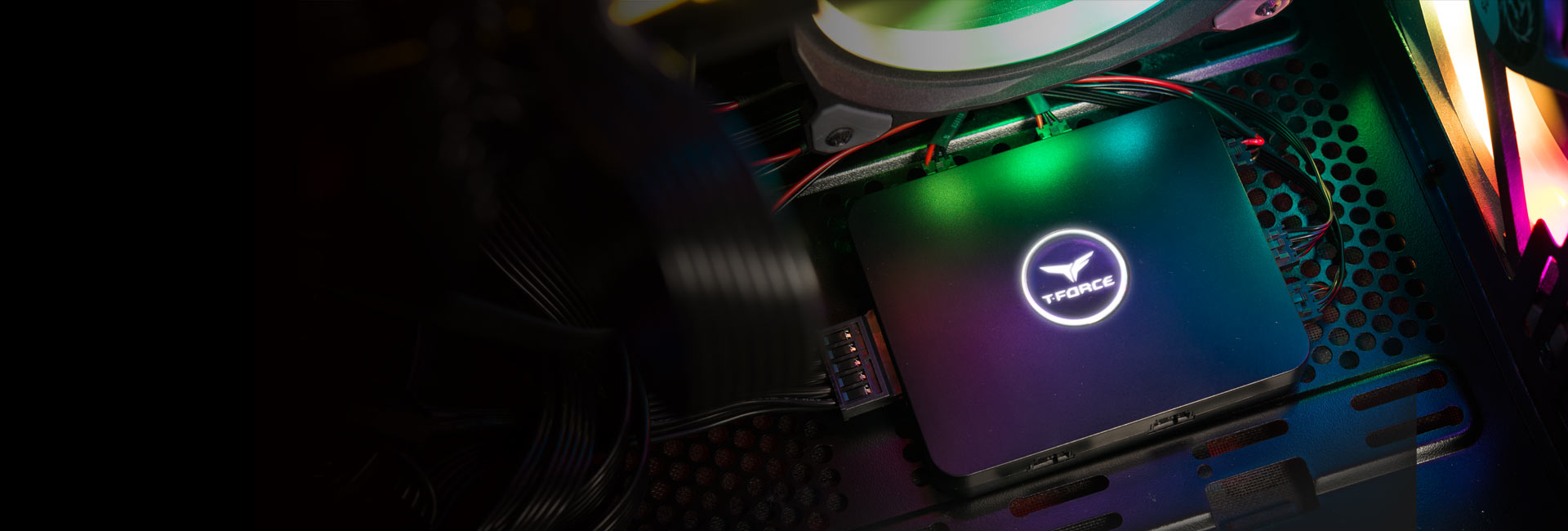

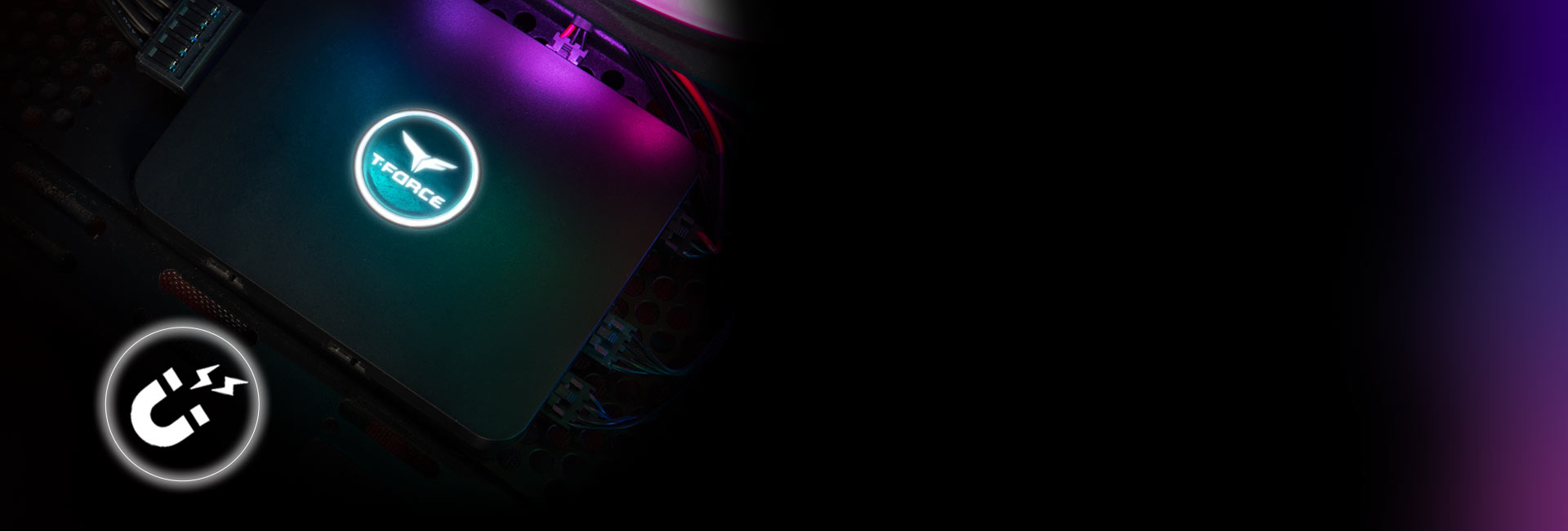

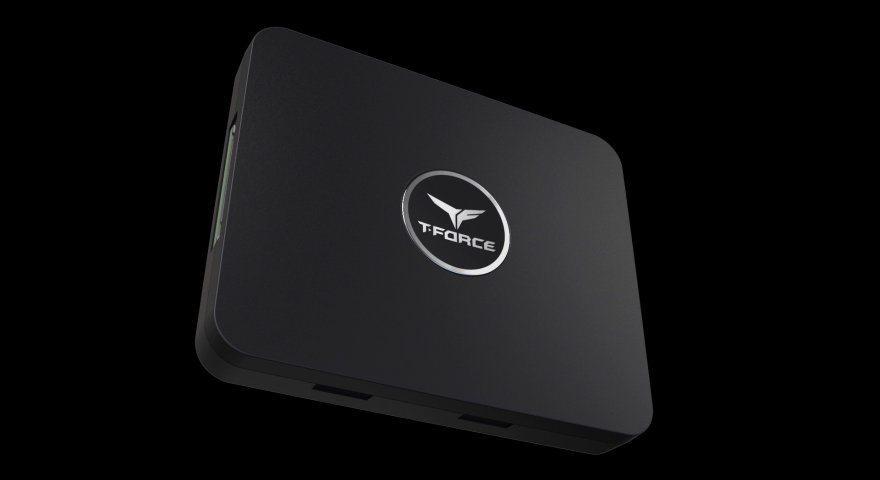

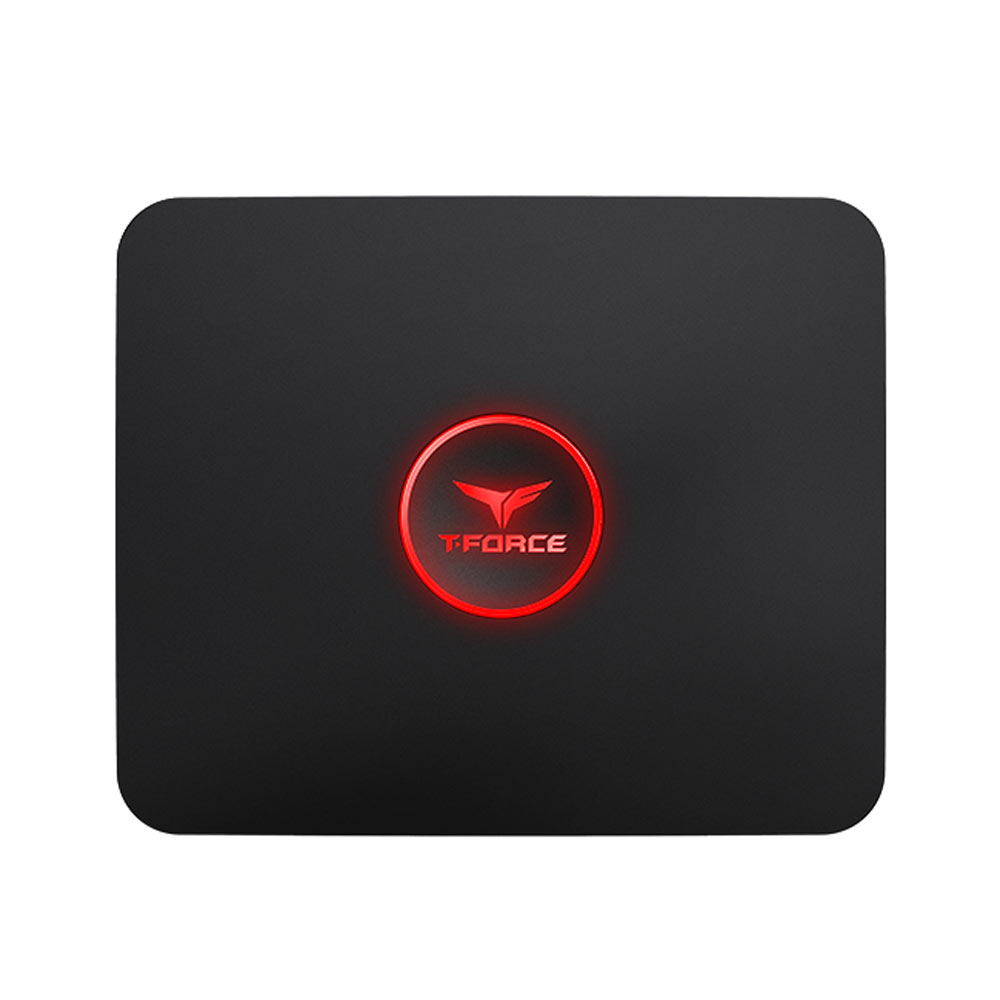

The design of T-FORCE CAPTAIN RGB Control Box is glorious and simple. Besides, the fine and smooth finish, the lighting control switch button is placed ingeniously in the T-FORCE LOGO. T-FORCE CAPTAIN RGB Control Box not only has a streamline design and is compact in size, the thoughtful magnetic feature also makes it easy to be attached on the computer case, which offering a flexible, ideal location for installation and creating the perfect computer system with FREE STYLE.
Extend lighting effects with personal style
T-FORCE CAPTAIN RGB Control Box offers gamers an advanced and integrated visual enjoyment. T-FORCE RGB programmable LED strip is included in the box. The light strip has a magnetic design that can easily and instantly attach on computer case's metal surface that contained iron. Every ARGB LED can be light up independently. Gamers can also link them freely together to present more lighting effects, and explore unlimited of possibilities in a unique lighting atmosphere.
Unique originality and exclusive patent
Developed by the T-FORCE team according to gamers' needs, T-FORCE CAPTAIN RGB Control Box's exclusive gaming RGB environment controller has exclusive utility model patent. We listen and understand gamers' needs when using the RGB lighting effect control box, and we solve pain points experienced by gamers while using RGB products. We offer gamers a more complete and more coordinated RGB lighting control solution.
T-FORCE CAPTAIN RGB Control Box Supports Variety Kinds of Controlled Software
T-FORCE CAPTAIN RGB Control Box supports ASUS Aura Sync / MSI Mystic Light Sync / ASROCK-Polychrome Sync software. These lightning controlled software allows gamers to control lighting effects and lighting synchronization. It creates a unique, dazzling color aesthetics and offers a brilliant RGB system!
Product Specifications
| Model | CAPTAIN |

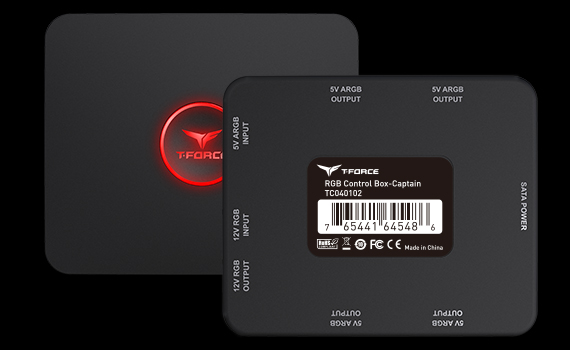

| Interface | Signal Input - Via 5V ARGB 3 pin header x 1port - Via 12V RGB 4 pin header x 1port Signal Output - Via 5V ARGB 3 pin header x 4port - Via 12V RGB 4 pin header x 1port Switch bottom - Hardware light control by build in IC solution, control by switch |
| Voltage | SATA power |
| Operation Temperature | 0˚C ~ 70˚C |
| Weight | 75g |
| Dimensions | 94.4(L) x 78(W) x 16(H)mm |
| Operating System | Windows10 / 8.1 / 8 / 7 / Vista® |
| Accessories | 30cm ARGB strip x2 SATA power cable x1 LED extension cable 3pin x2 LED extension cable 4pin x2 Addressable LED extension cable x2 User guide x1 Hook and loop fastener x1 Double-sides tape x6 Metal plate x1 |
| Warranty | 1-year limited warranty |
Notes
- Please read the instructions carefully before use.
- Before using this product, ensure all connectors and cables are free of obstructions, breakage and damage to avoid short-circuiting.
- To avoid device short-circuiting or electrocution, please turn off the power or unplug the power cable before changing connections or moving the device.
- Before connecting to other devices, please turn off the power first. Ensure all devices have been connected properly before turning the power on.
- Before connecting to the motherboard end (signal source device), verify if the signal source port is 5V or 12V to avoid damaging the device.
- Do not place the product in locations with high humidity, dust or extreme temperatures, failure to do so will impact the proper operation of the product.
- For any technical problems related to this product, please contact customer service or your dealer for assistance.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.
- We reserve the right to modify product specifications without prior notice.
26.Mar.2020
