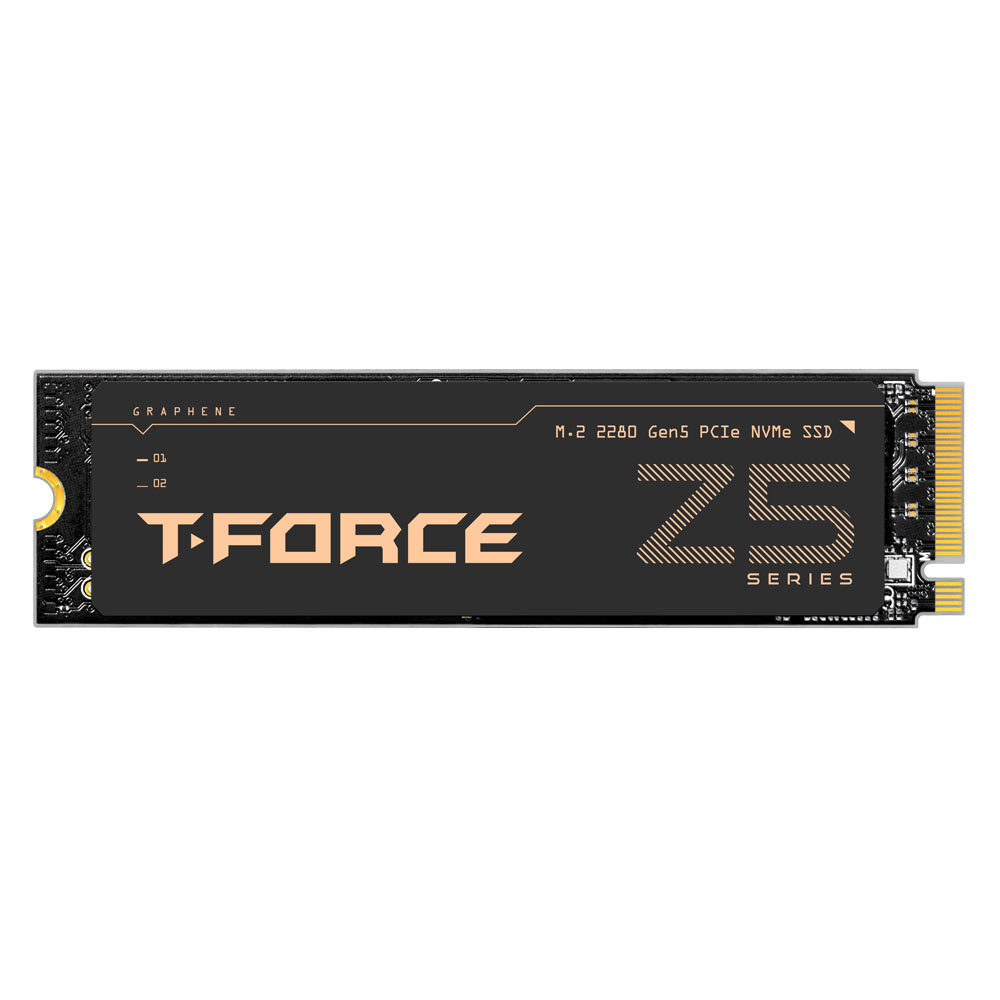

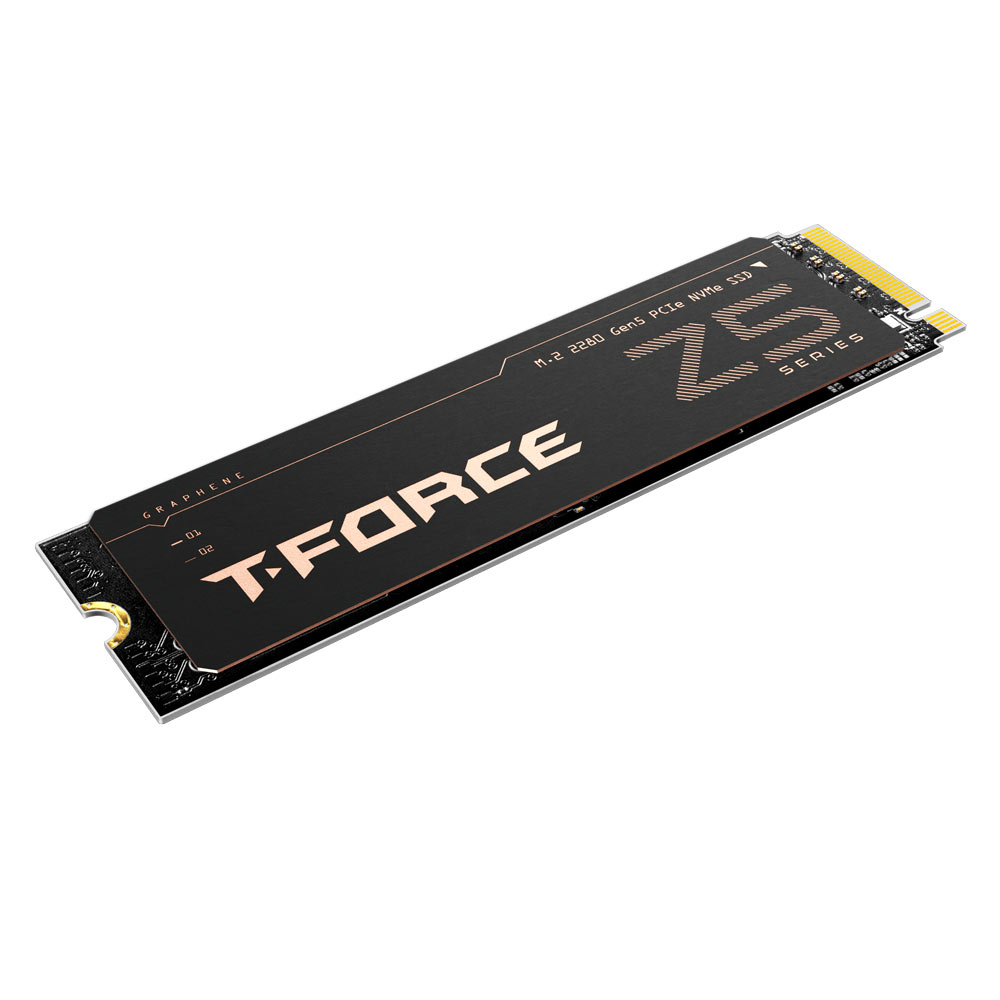

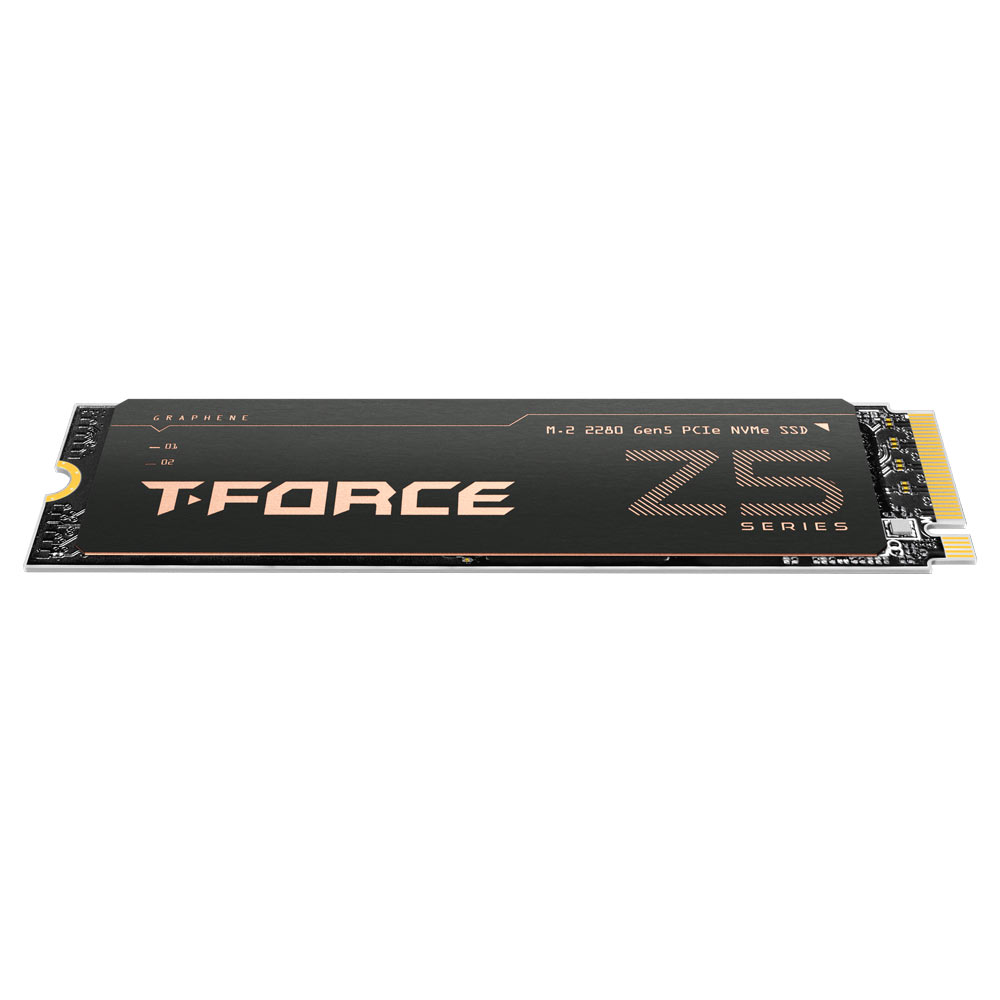

Z540 M.2 PCIe SSD
Feature
- Astonishing new-generation impeccable speed to unleash gaming performance
- The miraculous force of graphene
- The best heat dissipation solution
- Intelligent thermal conditioning
- Concrete actions to safeguard Earth
- Patented S.M.A.R.T. monitoring master
- Quality service for user assurance
- Patented graphene heatsink
US invention patent (certificate no. : US11051392B2)
Taiwan invention patent (certificate no. : I703921)
China utility patent (certificate no. : CN 211019739 U) - S.M.A.R.T. patented software
Taiwan invention patent : I751753
Introduction

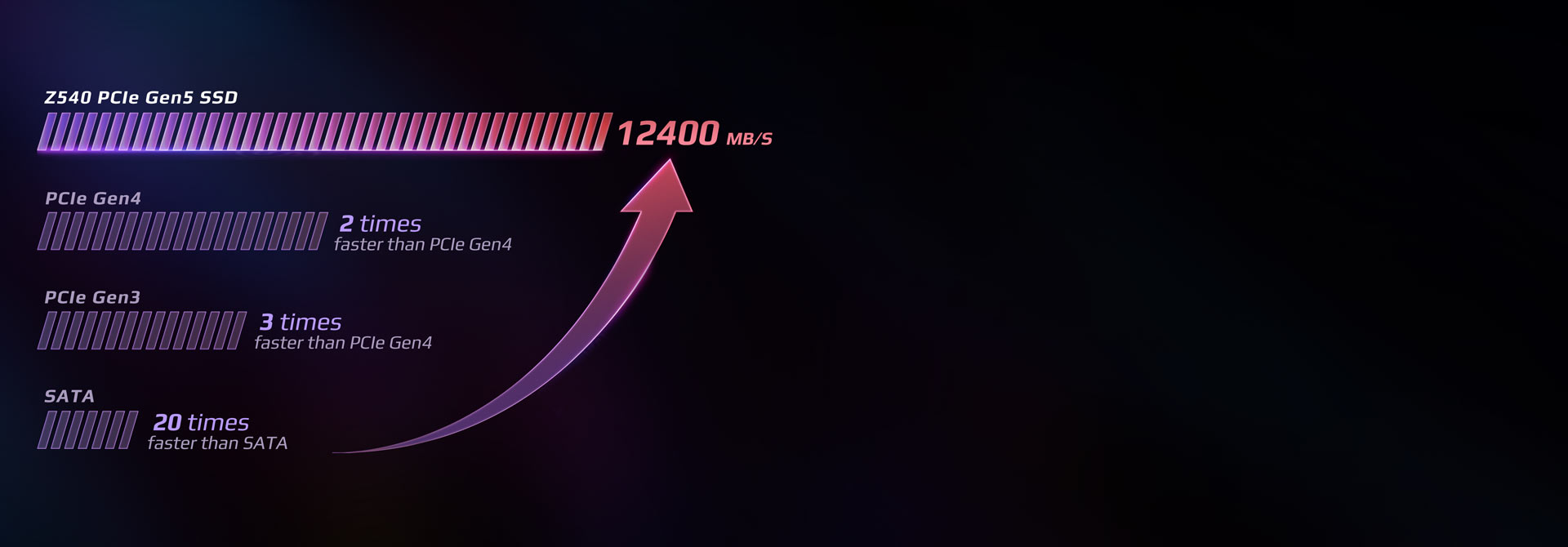

Astonishing new-generation impeccable speed to unleash gaming performance
T-FORCE Z540 M.2 PCIe 5.0 SSD adopts the latest PCIe Gen5x4 interface and supports the latest NVMe 2.0 protocol. It offers astonishing continuous read/write speeds of 12,400 and 11,800 MB/s, enabling users to unleash impeccable speed in launching games and enjoy carefree gaming experiences.

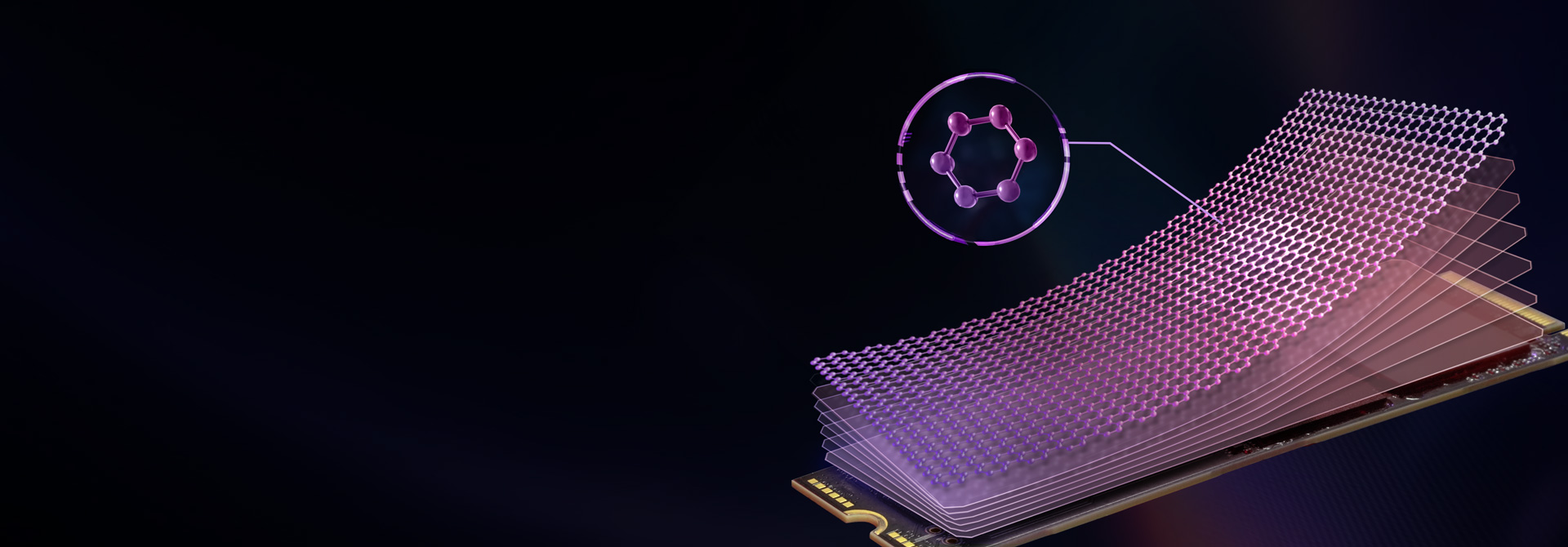

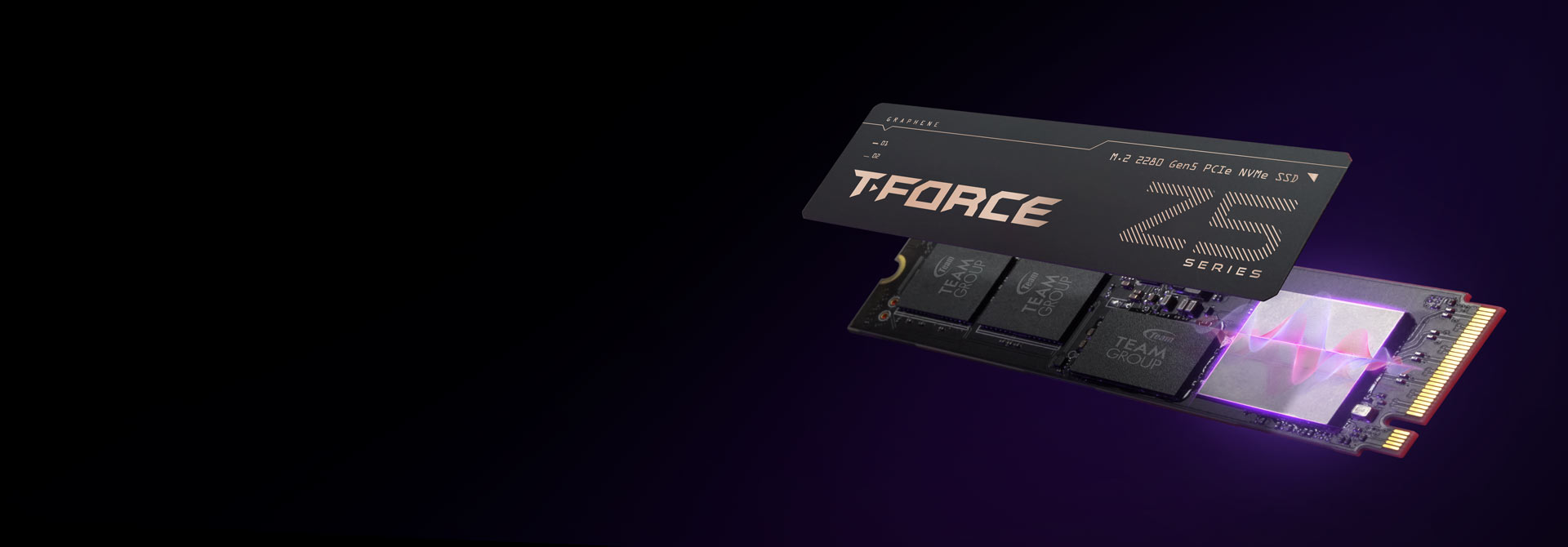

The miraculous force of graphene
The miraculous graphene boasts a perfect hexagonal honeycomb structure. It features exceptional diagonal conductivity that allows heat at the primary heat source to be rapidly transferred away horizontally, delivering excellent heat dissipation performance.

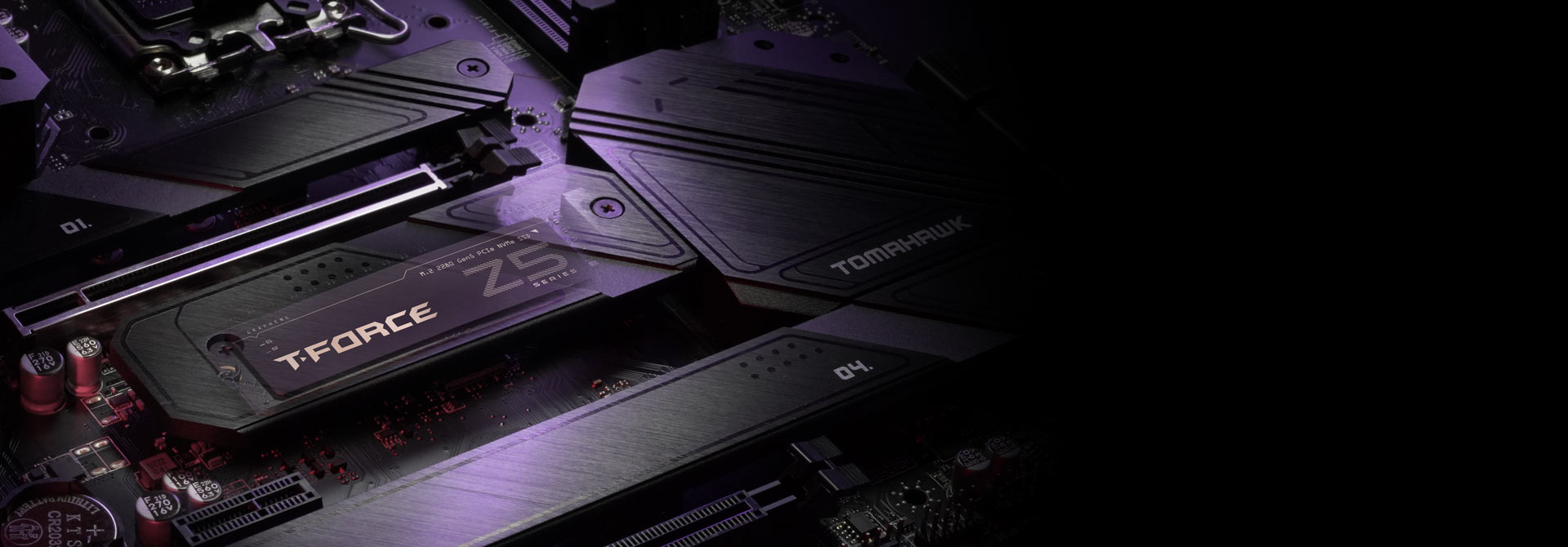

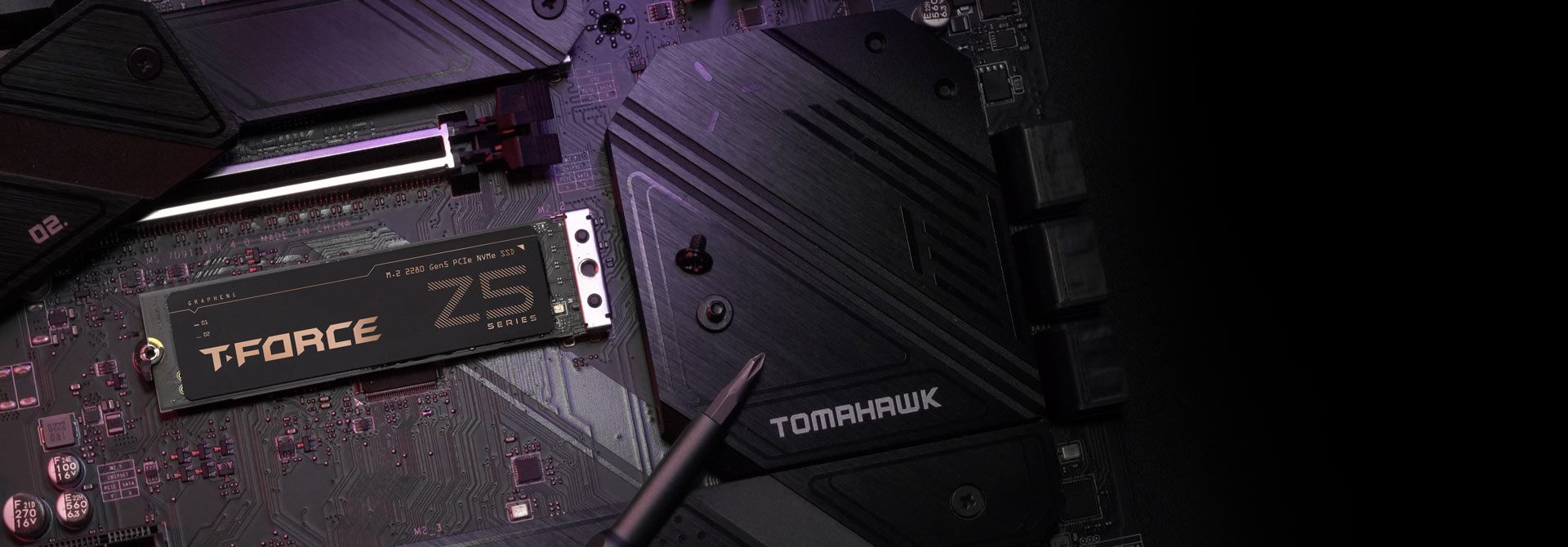

The best heat dissipation solution
The ultra-thin graphene heatsink can be complimentary to any original motherboard heatsink. T-FORCE Z540 M.2 PCIe 5.0 SSD yields better heat dissipation performance than the original motherboard heatsink alone, making it the best heat dissipation solution for original motherboard heatsinks.
Intelligent thermal conditioning
The latest intelligent thermal conditional technologies are incorporated with internal temperature sensors to automatically adjust energy output for effective monitoring and control, prevent SSD from overheating, protect data integrity, and effectively extend SSD service life.
Quality service for user assurance
It is tested through the T-FORCE laboratory's rigorous quality control and testing mechanism and comes with a five-year warranty for user assurance.

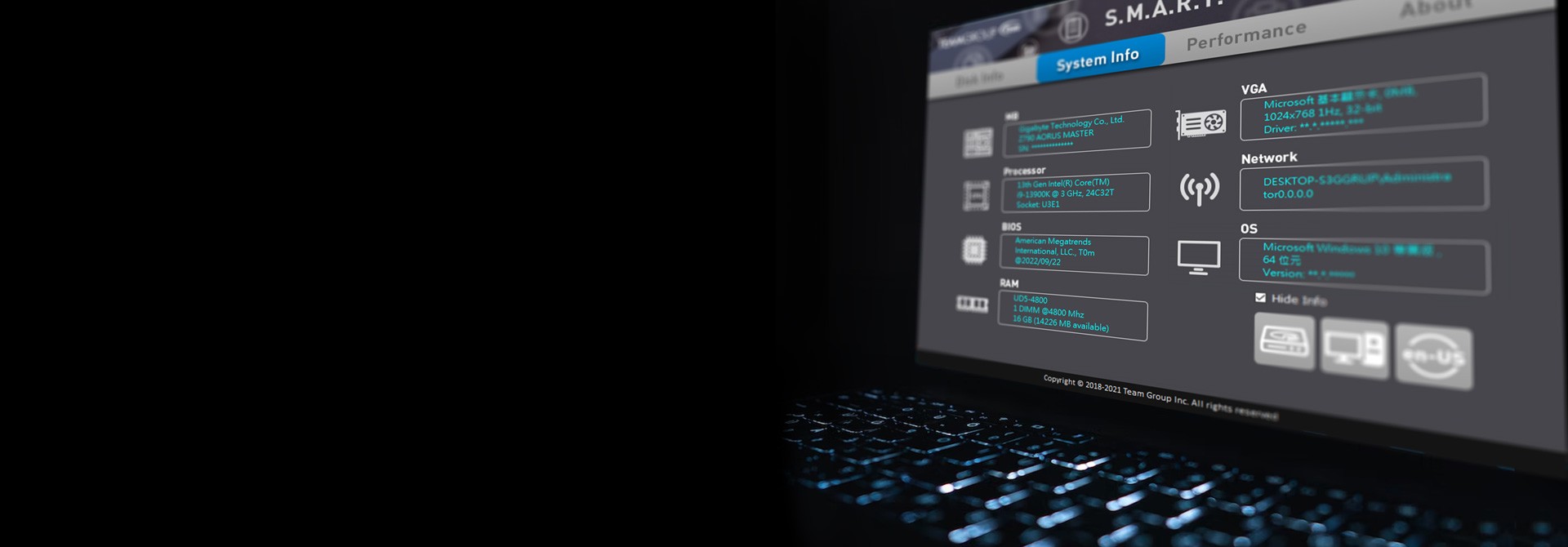

Patented S.M.A.R.T. monitoring master
The exclusive patented intelligent monitoring software S.M.A.R.T. enables users to monitor product conditions anytime. It also offers easy and quick setting options and testing to monitor product quality and performance.

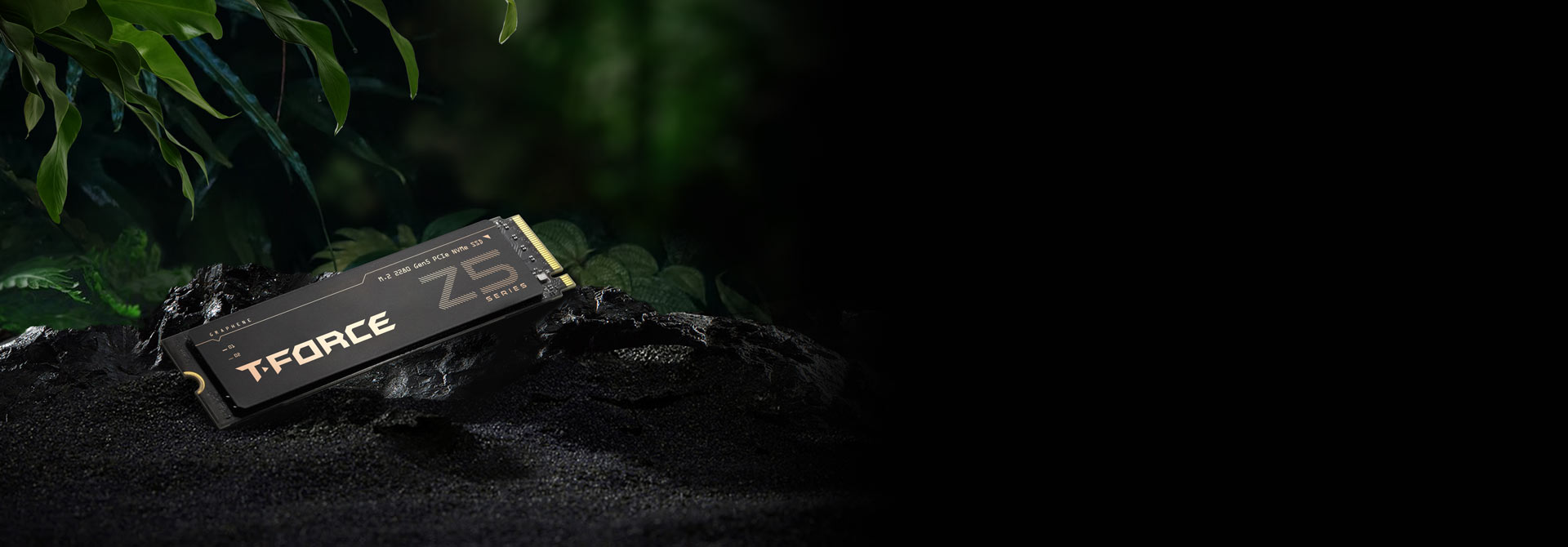

Concrete actions to safeguard Earth
The ultra-thin graphene heatsink is made with 100% recyclable graphene. The entire manufacturing processes take place in a halogen-free and lead-free environment, contributing to environmental protection efforts.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| Z540 M.2 PCIe SSD | 4TB | up to 12,400 MB/s | up to 11,800 MB/s | 2400TBW | YES | TM8FF1004T0C129 | ADD |
| Z540 M.2 PCIe SSD | 2TB | up to 12,400 MB/s | up to 11,800 MB/s | 1200TBW | YES | TM8FF1002T0C129 | ADD |
| Z540 M.2 PCIe SSD | 1TB | up to 11,700 MB/s | up to 9,500 MB/s | 600TBW | YES | TM8FF1001T0C129 | ADD |
More Product Specifications
Interface
PCIe Gen5x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
Weight
13g
Dimensions
80.0(L) x 22.0(W) x 3.7(H)mm
Vibration
80Hz~2000Hz/20G
Shock
1500G/0.5ms
MTBF
1,700,000 Hours
Operating System
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- MAC OS 10.4 or later
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- There is high-power heat generated by the high transmission rate of Gen5 NVMe SSDs. To avoid the speed reduction caused by over heat, we suggest that Gen5 NVMe SSDs be used with additional heat sinks or even cooling fans. Team Group Inc. also provides liquid coolers, SSD fans and other related products for users, aimed at offering experiences of the best performance. If the Gen5 NVMe SSDs are not used with the heat sinks or coolers tested by labs of Team Group Inc, they may be malfunctioned or even damaged.
- It is advised that power supplies of above 850W are used with Gen5 NVMe SSD to ensure power stability of the motherboard system.
- As tested by T-FORCE Lab, the highest performance may differ when using AMD/Intel CPU.
- Team Group Inc keeps developing cooling solutions and cooperating with the motherboard manufacturers, such like the application to laptops or console games, always focusing on develop better solutions.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference. We reserve the right to modify product specifications without prior notice.
