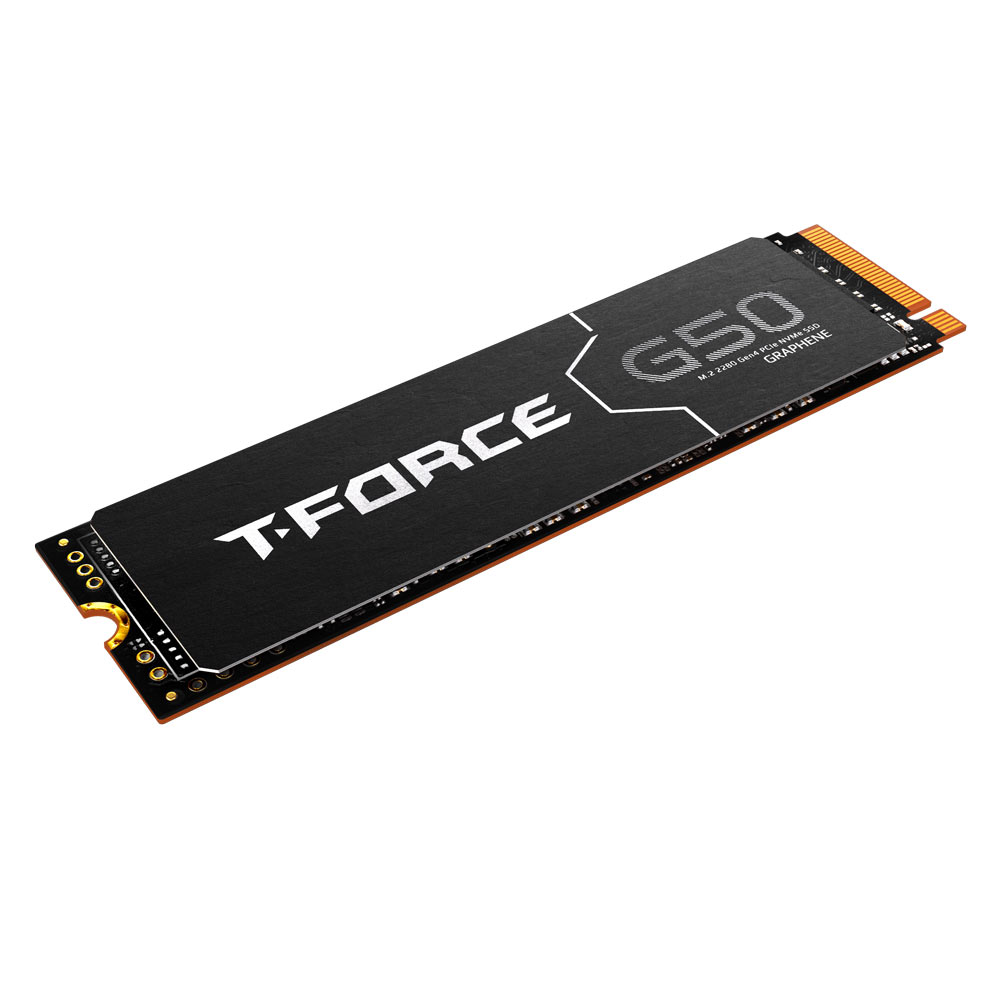

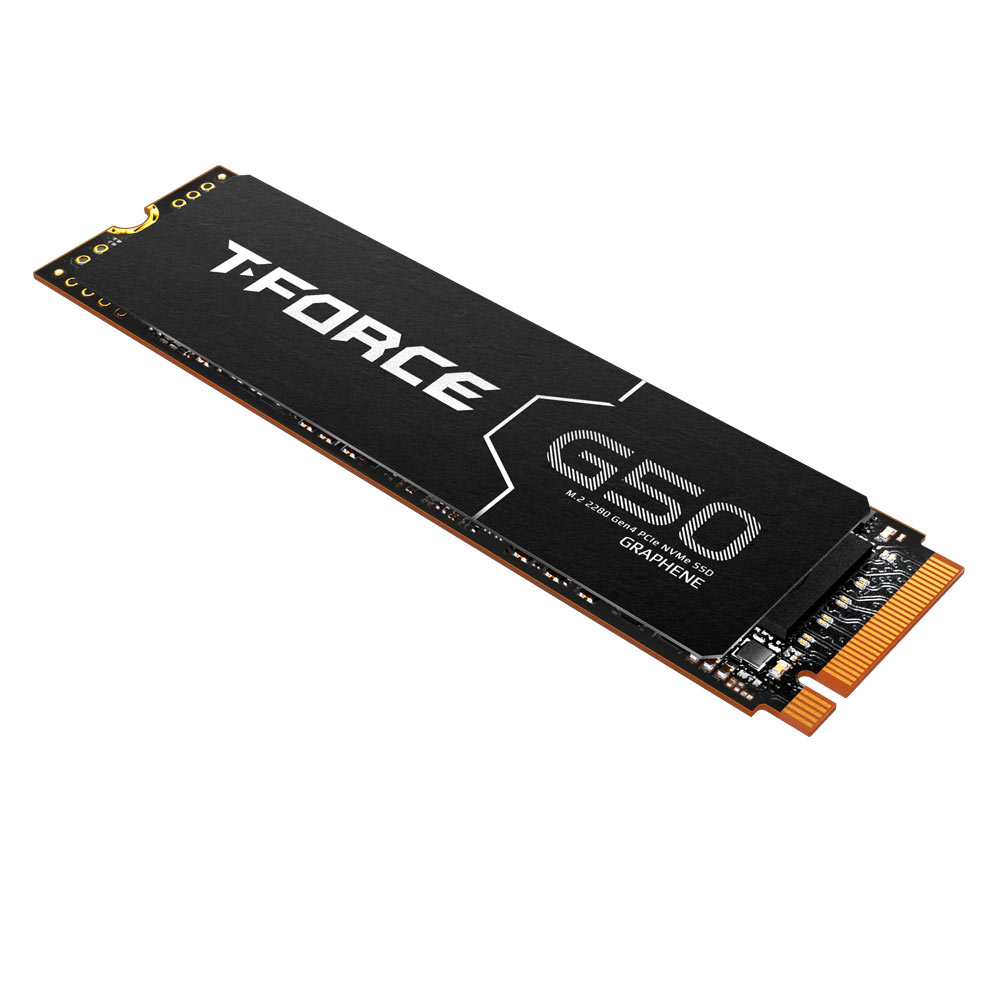

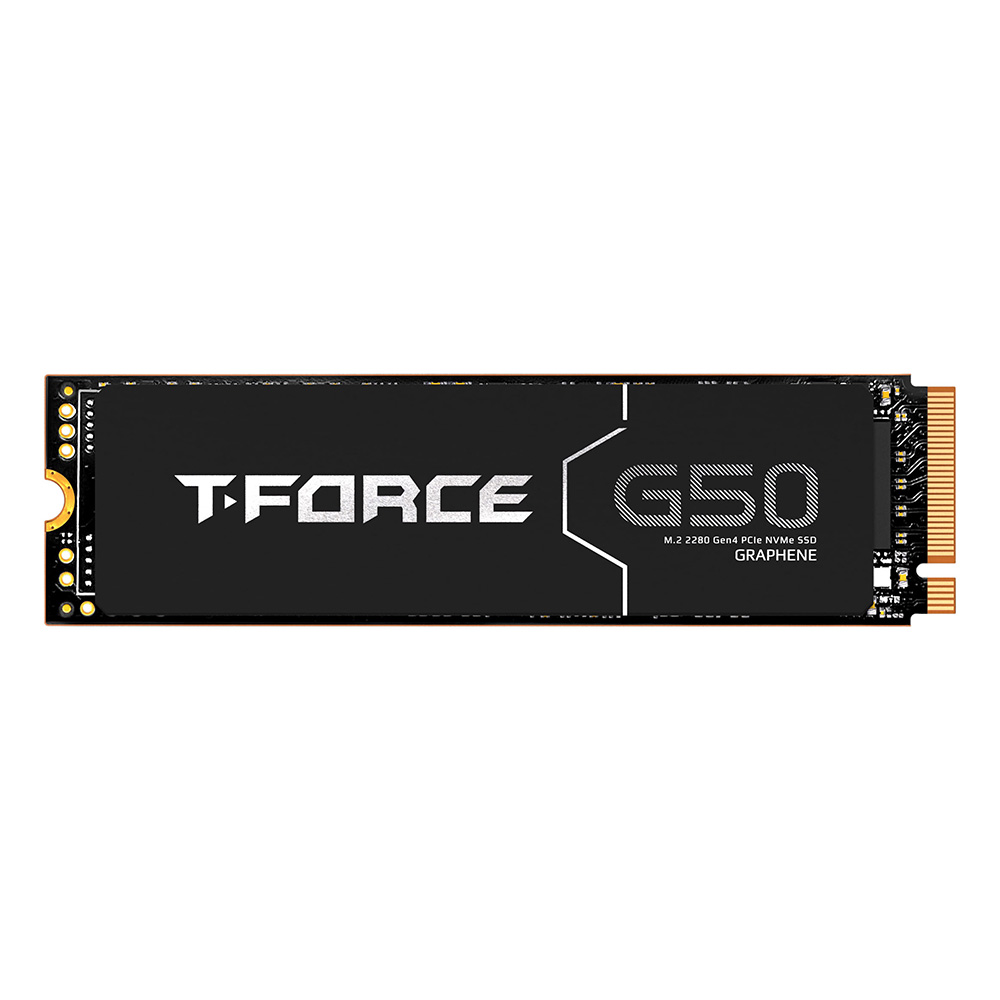

G50 M.2 PCIe SSD
Feature
- A new choice for gaming upgrade
- Preset controller solutions
- Different caching grading systems offered to cover users’ needs
- Ultra-thin patented graphene heat-sink makes installations painless
- Optimized performance operation that balances reliability and lifetime
- Smart product status monitoring system
- An environmental protector
- Patented graphene heatsink
US invention patent (certificate no.: US11051392B2)
Taiwan invention patent (certificate no.: I703921)
China utility patent (certificate no.: CN 211019739 U) - S.M.A.R.T. software patent
Taiwan invention patent (No.: I751753)
Introduction

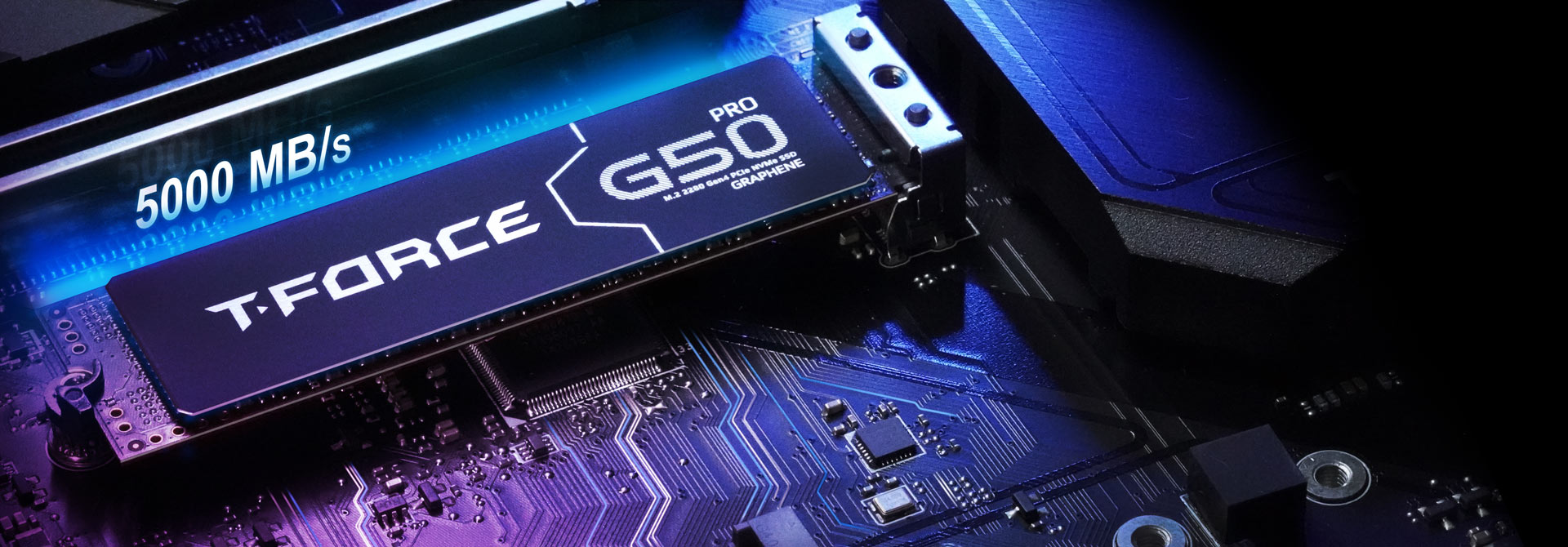

A new choice for gaming upgrade
T-FORCE G50 Pro / G50 PCIe4.0 SSD adopt PCIe Gen4x4 interface. Having read and write speeds reaching 5000 MB/s, the SSDs allow users to enjoy gaming on a new level with easy upgrades and storage capacity increase.
Preset controller solutions
T-FORCE G50 Pro / G50 PCIe4.0 SSD use InnoGrit controller solutions by default, allowing users a peace of mind in their usage experience.
Different caching grading systems offered to cover users' needs
The SSDs come with different grading systems to suit different needs: T-FORCE G50 Pro PCIe4.0 SSD supports DRAM Caching and SLC Caching, whereas T-FORCE G50 PCIe4.0 SSD only supports SLC Caching. Choose the one that suits you best.
Ultra-thin patented graphene heat-sink makes installations painless
The patented ultra-thin heat-sink is made from the optimal heat conductive material—graphene, offering painless, interference-free installations on gaming PCs, gaming, laptops, and PS5 consoles.
Optimized performance operation that balances reliability and lifetime
Windows TRIM SSD Optimization makes sure Free Block is made into use upon being released to speed up transmission and write performances. The wear-leveling technology and ECC enhance data transmission reliability while prolonging SSD lifetime.

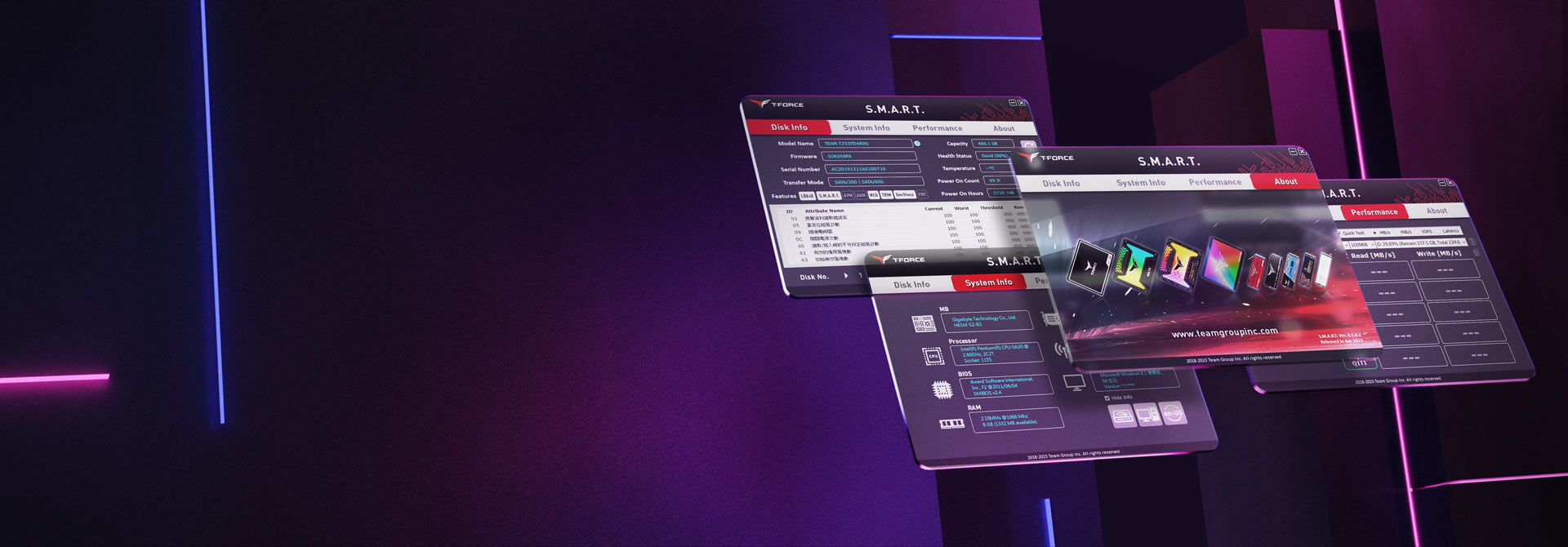

Smart product status monitoring system
TEAMGROUP’s patented S.M.A.R.T. monitoring software tracks SSD status at all times and conducts fast and simple settings and inspections to monitor the SSD’s quality status and performance.
An environmental protector
The entire production is lead-free and halogen-free, RoHS-compliant, and adopts recyclable environmentally friendly materials for packaging to conserve Earth by being eco-friendly.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| G50 M.2 PCIe SSD | 2TB | up to 5,000 MB/s | up to 4,500 MB/s | 1300TBW | NO | TM8FFE002T0C129 | ADD |
| G50 M.2 PCIe SSD | 1TB | up to 5,000 MB/s | up to 4,800 MB/s | 650TBW | NO | TM8FFE001T0C129 | ADD |
| G50 M.2 PCIe SSD | 512GB | up to 5,000 MB/s | up to 3,500 MB/s | 325TBW | NO | TM8FFE512G0C129 | ADD |
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
Weight
7g
Dimensions
80.0(L) x 22.0(W) x 3.7(H)mm
Vibration
80Hz~2,000Hz/20G
Shock
1,500G/0.5ms
MTBF
3,000,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the foll owing operating systems:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- MAC OS 10.4 or later
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference. We reserve the right to modify product specifications without prior notice.
