CARDEA A440 M.2 PCIe SSD
Feature
- Enjoy the lightning speed of the PCIe Gen4 x4
- Featuring two patented heat sinks
- Effective cooling—flexible installation
- Supports the latest NVMe standard
- Taiwan Utility Patent (number: M541645)
- Taiwan Invention Patent (number: I703921)
- China Utility Patent (number: CN 211019739 U)
Introduction
Enjoy the lightning speed of the PCIe Gen4 x4
Supports the latest PCIe Gen4 x4 specification, reaching 7,000/6,900 Mb/s, provides outstanding performance 15 times faster than ordinary SATA SSDs, and is backward compatible with PCIe 3.0 ports.
Featuring two patented heat sinks
The first in the industry to incorporate two patented heat sinks, giving you the benefits of a patented high-strength aluminum heat sink and a patented ultra-thin graphene heat sink at the same time, so you can choose your preferred method for dissipating heat.
Effective cooling—flexible installation

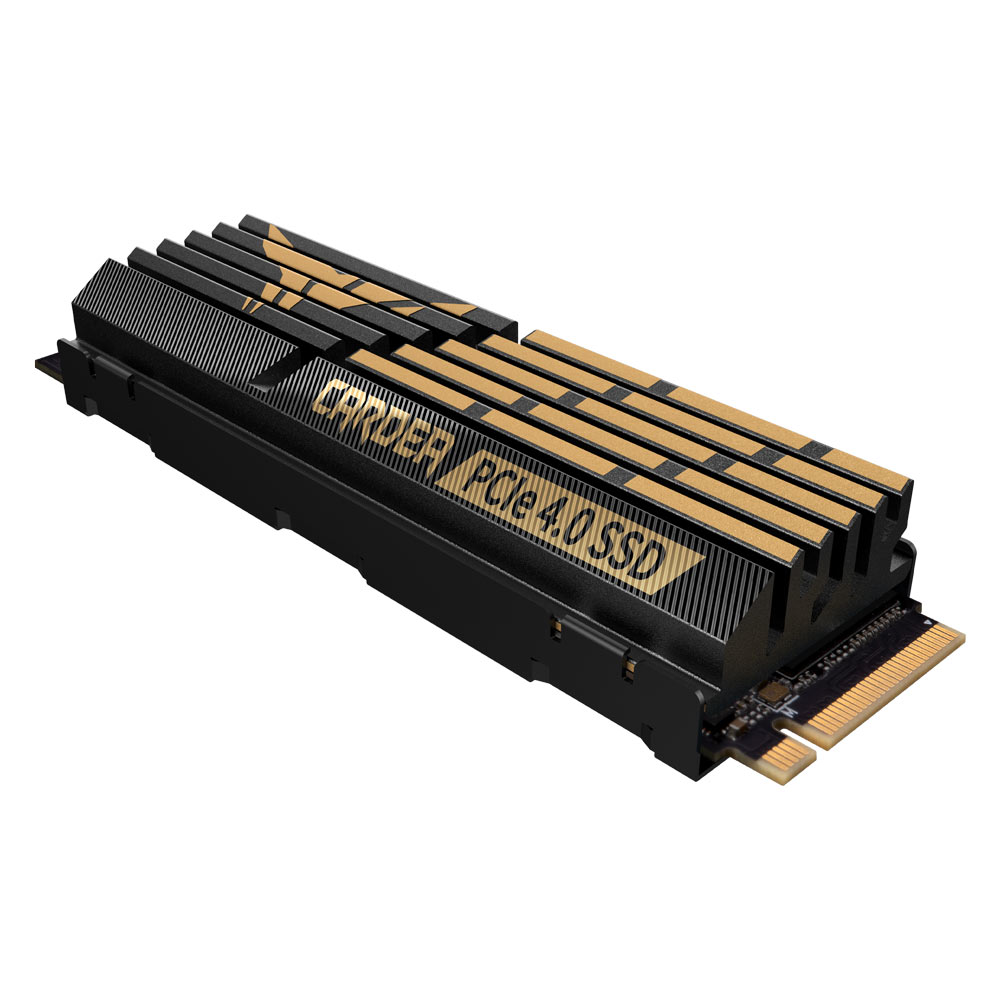

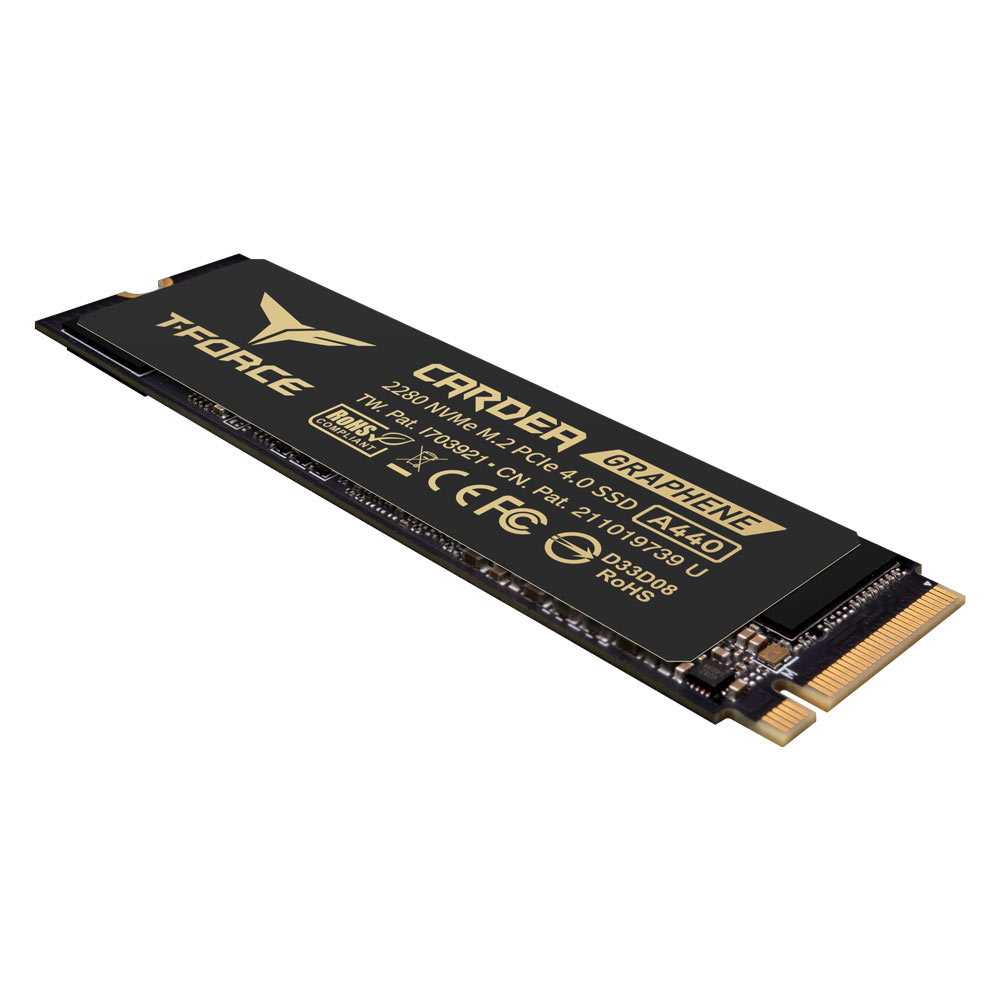

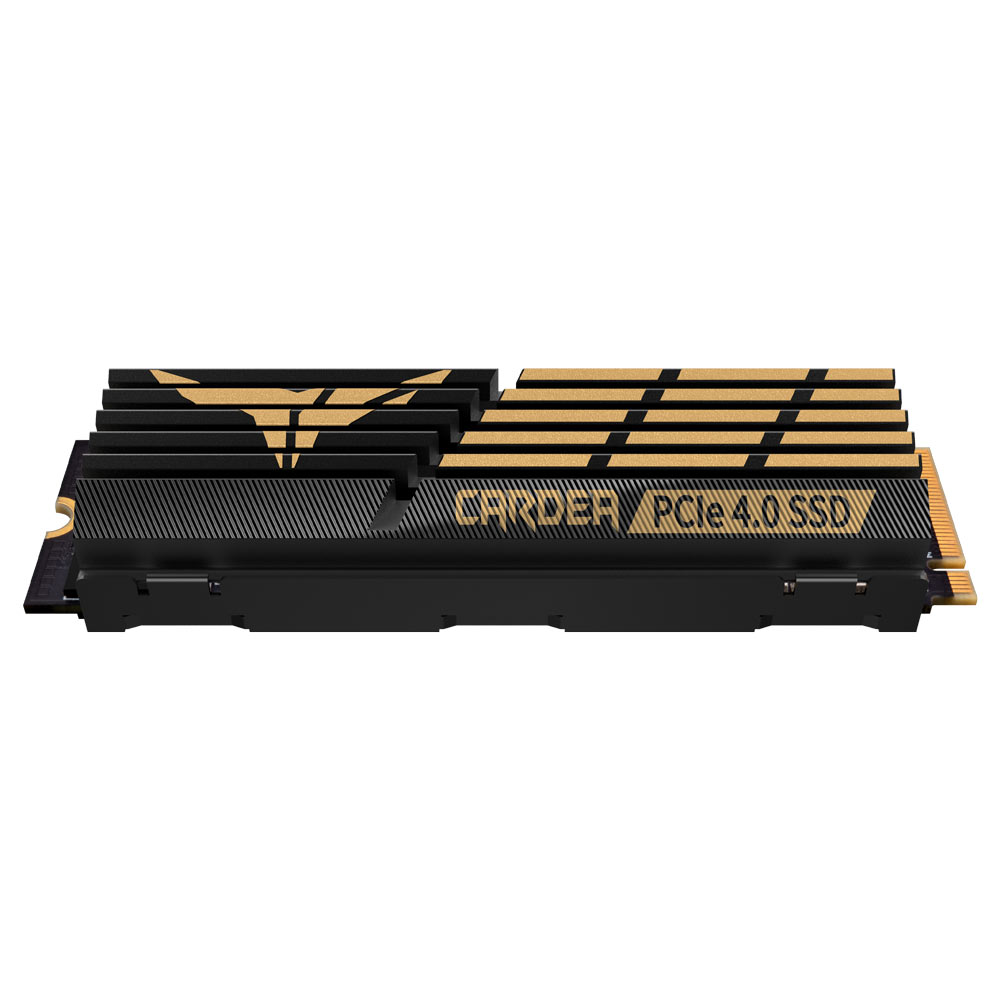

The patented high-strength aluminum heat sink features a unique thermal diversion design, capable of effectively reducing the temperature by up to 15%. The patented ultra-thin graphene heat sink features graphene material with excellent thermal conduction performance, delivering heat dissipation rates of up to 9%. Two patented heat sinks allow for flexible assembly without interference issues.
Supports the latest NVMe standard
Supports the latest NVMe standard, optimizes the NVM sets distribution mechanism and Predictable Latency Mode (PLM), effectively reducing latency, while minimizing read/write damage and improving system QoS. Uses the latest Read Recovery Level (RRL) technology to extend the SSD's service life.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| CARDEA A440 M.2 PCIe SSD | 8TB | up to 7,000 MB/s | up to 6,000 MB/s | 6000TBW | YES | TM8FPZ008T0C327 | ADD |
| CARDEA A440 M.2 PCIe SSD | 4TB | up to 7,000 MB/s | up to 6,900 MB/s | 3000TBW | YES | TM8FPZ004T0C327 | ADD |
| CARDEA A440 M.2 PCIe SSD | 2TB | up to 7,000 MB/s | up to 6,900 MB/s | 1400TBW | YES | TM8FPZ002T0C327 | ADD |
| CARDEA A440 M.2 PCIe SSD | 1TB | up to 7,000 MB/s | up to 5,500 MB/s | 700TBW | YES | TM8FPZ001T0C327 | ADD |
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
1TB Read/Write: up to 650K/700K
2TB Read/Write: up to 650K/700K
4TB Read/Write: up to 1,000K/1,000K
8TB Read/Write: up to 900K/1,000K
2TB Read/Write: up to 650K/700K
4TB Read/Write: up to 1,000K/1,000K
8TB Read/Write: up to 900K/1,000K
Weight
13g (with Graphene heat sink)
46g (with Aluminum heat sink)
46g (with Aluminum heat sink)
Dimensions
80.0(L) x 22.0(W) x 3.7(H) mm (with Graphene heat sink)
80.0(L) x 23.4(W) x 12.9(H) mm (with Aluminum heat sink)
80.0(L) x 23.4(W) x 12.9(H) mm (with Aluminum heat sink)
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1500G/0.5ms
MTBF
3,000,000 Hours
Operating System
System Requirements:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
