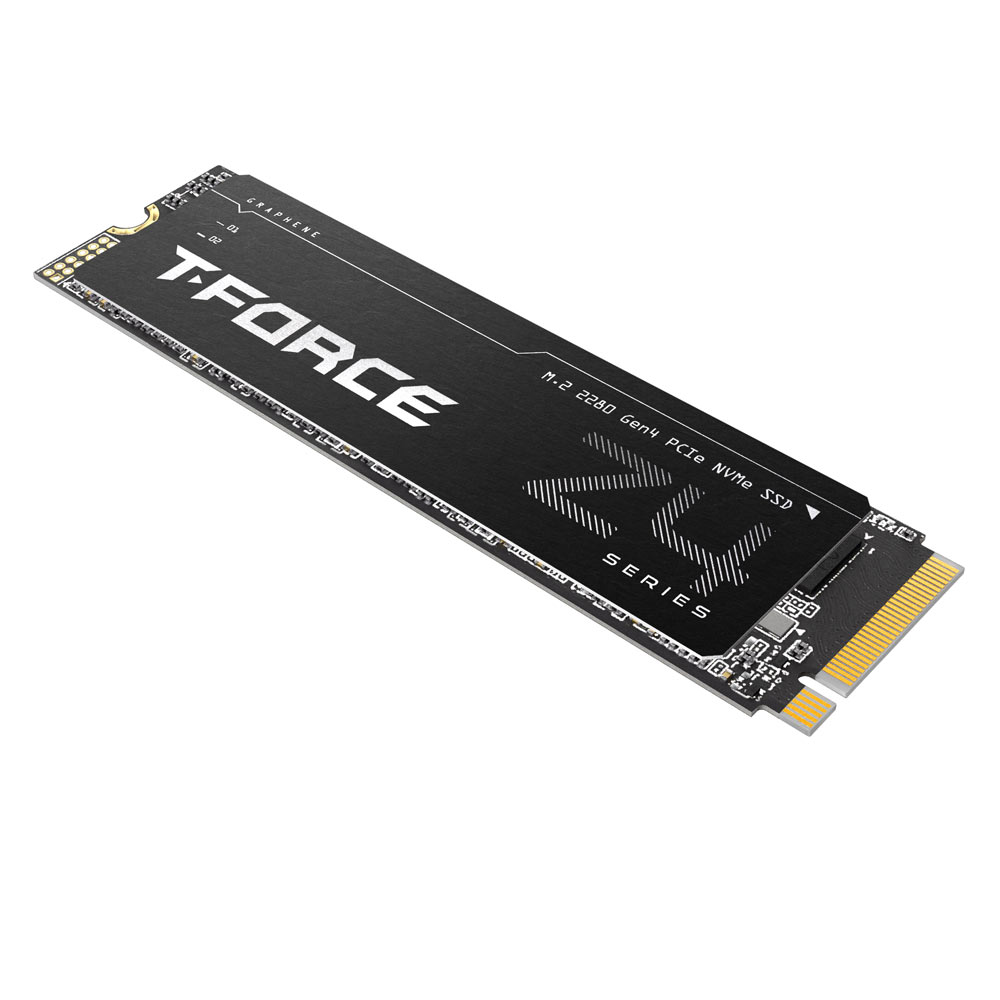

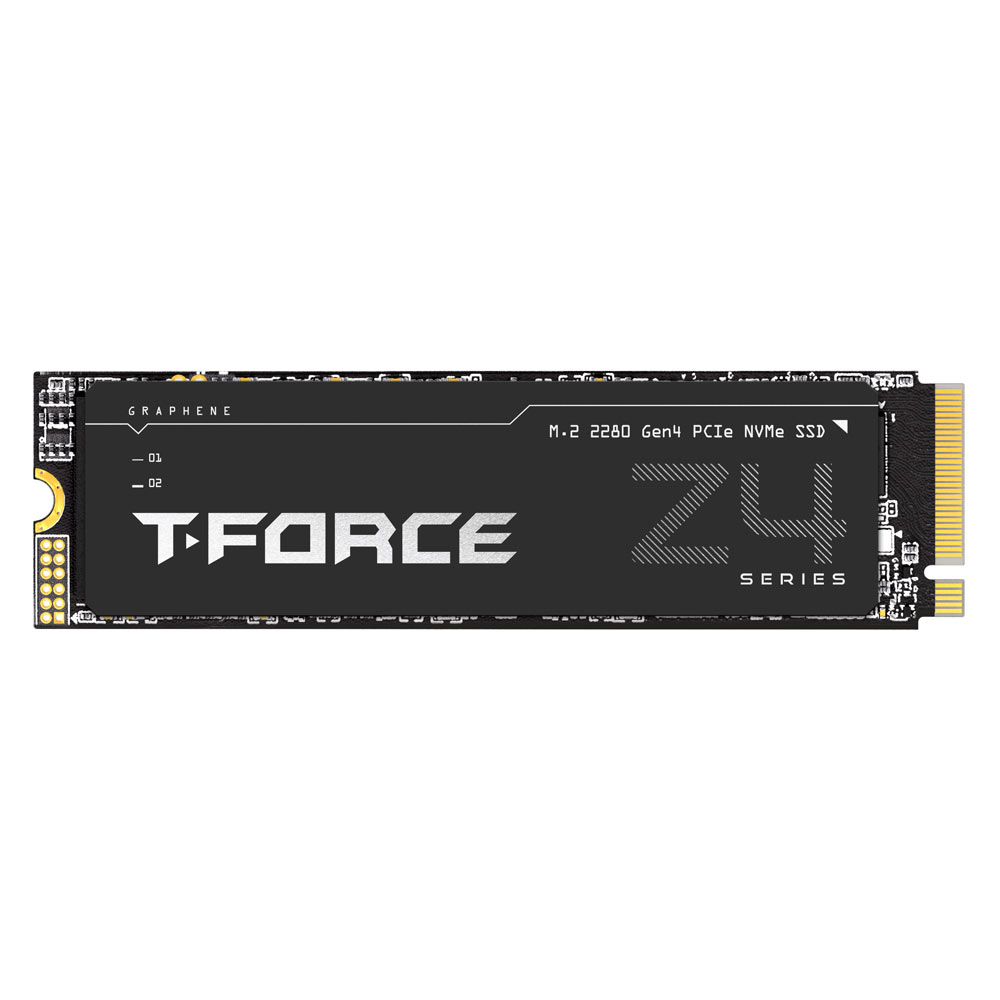

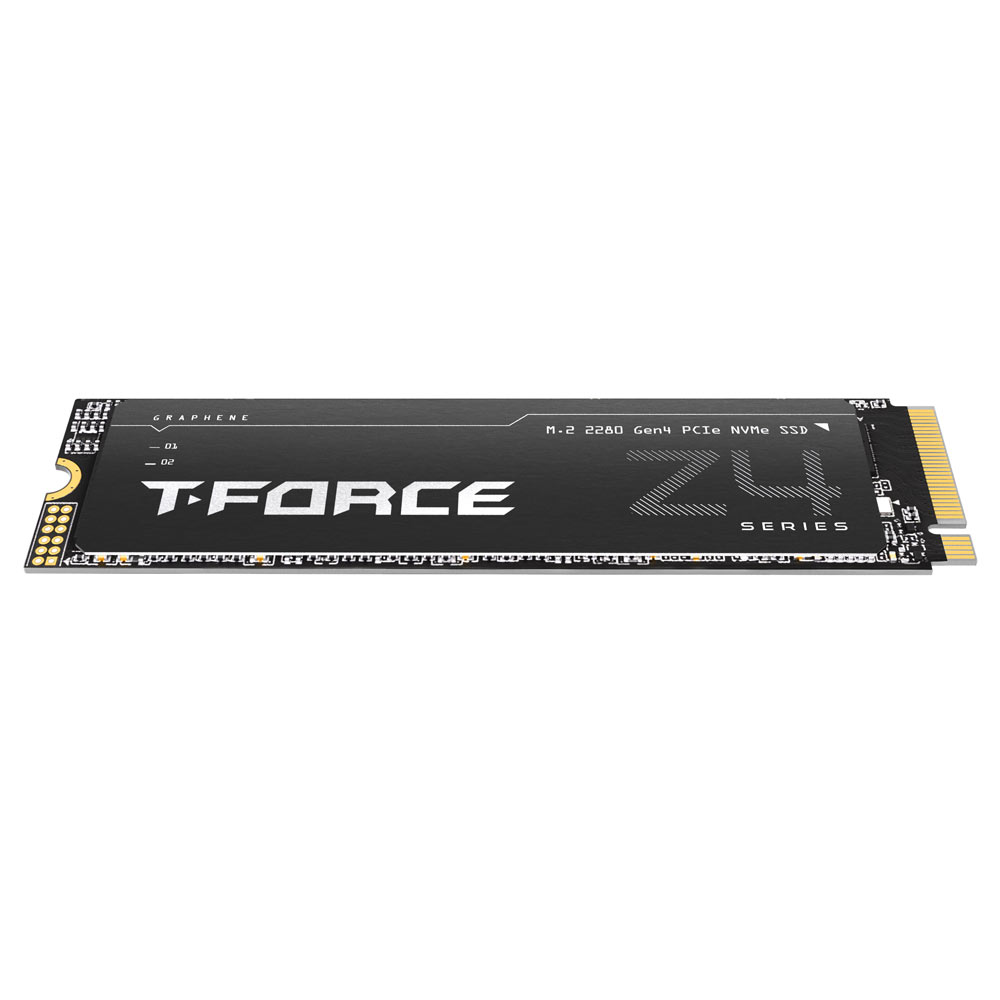

Z44A7 M.2 PCIe SSD
Feature
- Effortless upgrade for professional gaming
- Patented graphene heatsink for enhanced heat dissipation and system operating stability
- Best choice for NB capacity upgrade
- Intelligent management technology – trustworthy reliability
- Patented intelligent health monitoring system
- Eco-friendly product contributing to conserving Earth
- Patented graphene heatsink
US invention patent (certificate no.: US11051392B2)
Taiwan invention patent (certificate no.: I703921)
China utility patent (certificate no.: CN 211019739 U) - S.M.A.R.T. software patent
Taiwan invention patent (No.: I751753)
Introduction

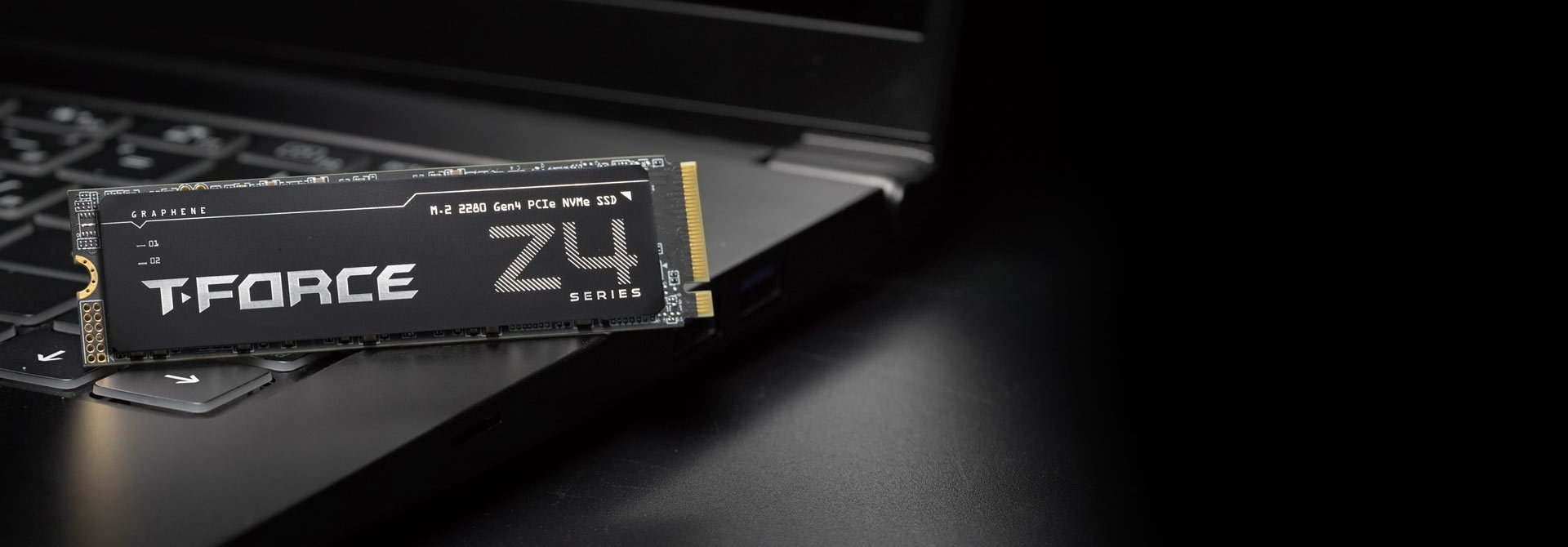

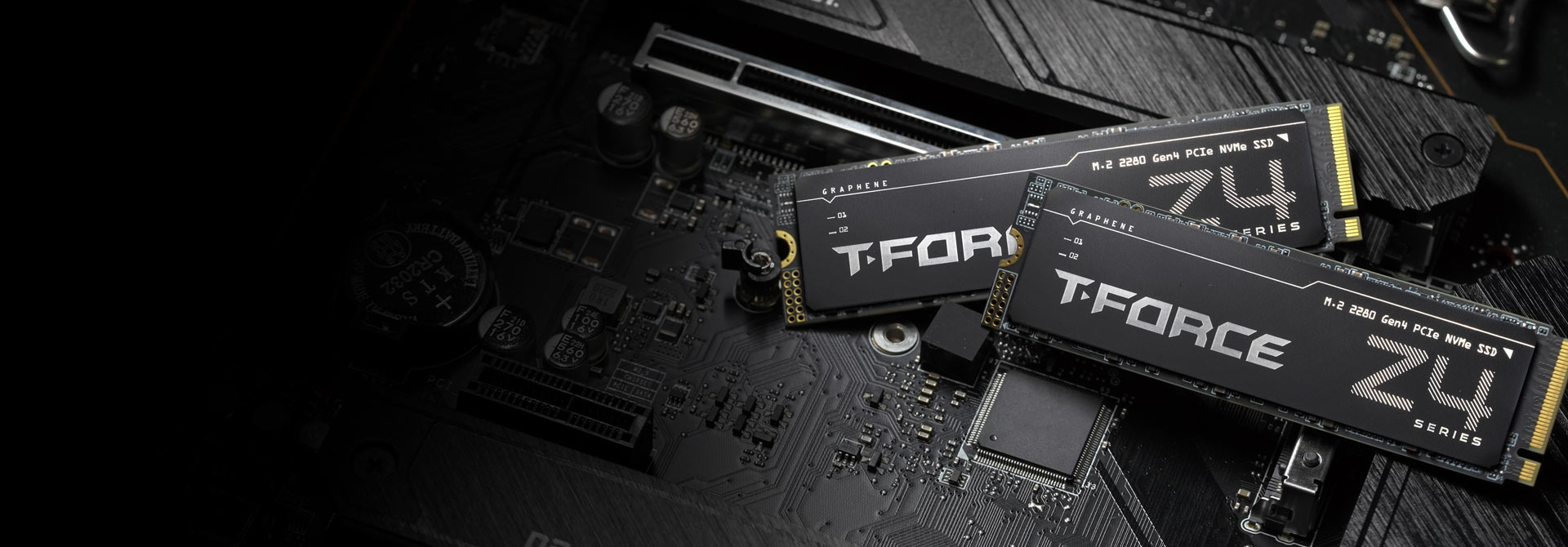

Effortless upgrade for professional gaming
T-FORCE Z44A Series PCIe SSD comes in three speed specifications, Z44A3, Z44A5, and Z44A7 with a maximum read speed of 3500MB/s, 5000MB/s, and 7000MB/s respectively. Catering to varied demands for read speed and capacity, users can upgrade their professional gaming equipment effortlessly.

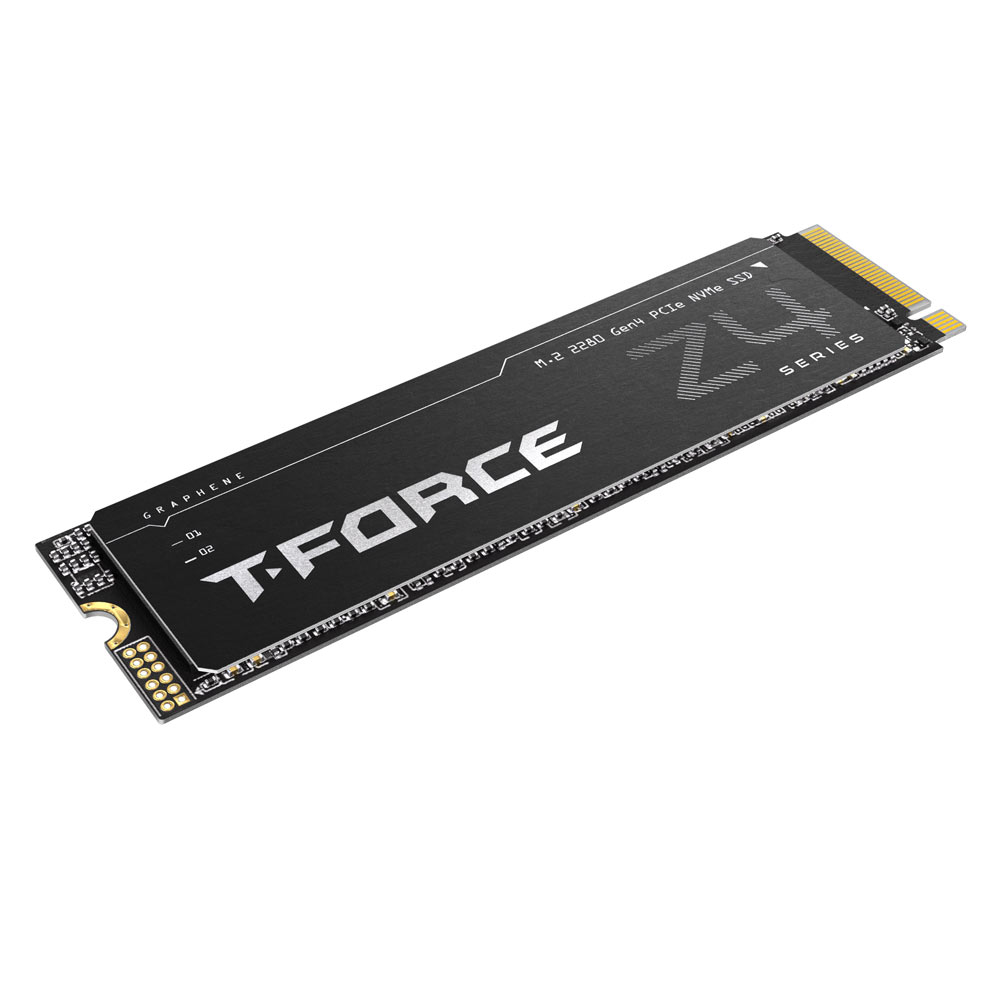

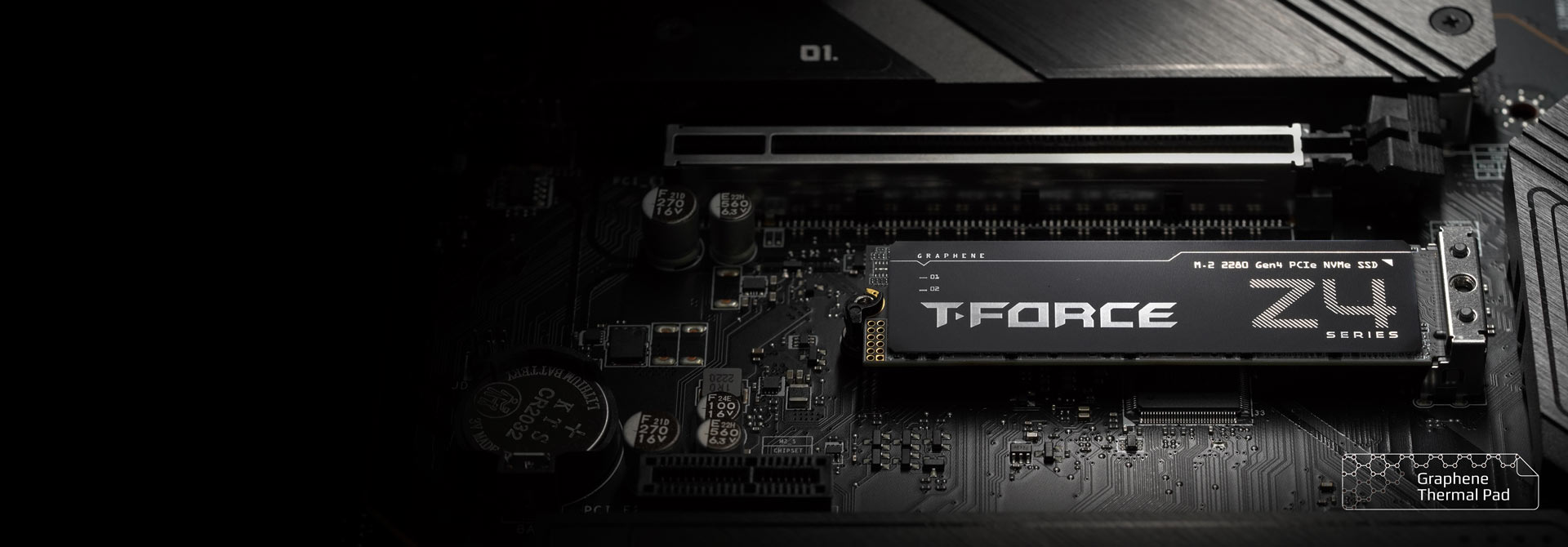

Patented graphene heatsink for enhanced heat dissipation and system operating stability
It adopts TEAMGROUP’s exclusive patented graphene heatsink which enhances heat dissipation performance and enables better system operating stability.

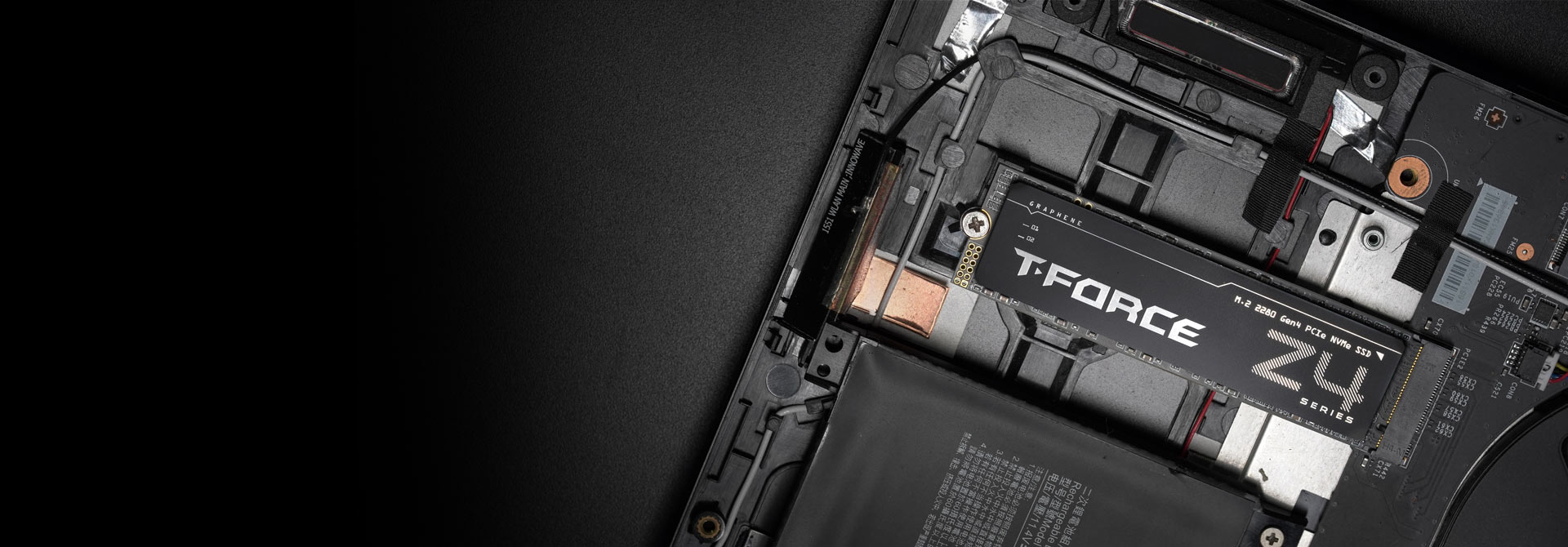

Best choice for NB capacity upgrade
Less than 1mm thick, it perfectly eradicates any possible mechanical interference. It is undoubtedly the best choice for NB capacity upgrade.
Intelligent management technology – trustworthy reliability
The built-in smart algorithm management mechanism includes functions such as GC (garbage collection), TRIM command, LDPC (Low Density Parity Check Code) error correction mechanism, E2E data protection, etc. The mechanism enhances operation efficiency and prolongs SSD service life. It also ensures data security and maximizes performance and data transfer stability.
Patented intelligent health monitoring system
It is equipped with the exclusive patented S.M.A.R.T. monitoring software that monitors product status at all times. It also monitors product quality and performance through fast and easy setting and inspection.
Eco-friendly product contributing to conserving Earth
The entire manufacturing process is completed in a lead-free environment in compliance with RoHS environmental protection regulations. All packaging is made of recyclable materials, contributing to sustainability endeavors.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| Z44A7 M.2 PCIe SSD | 4TB | up to 6,900 MB/s | up to 6,100 MB/s | 2000TBW | NO | TM8FPV004T0C129 | ADD |
| Z44A7 M.2 PCIe SSD | 2TB | up to 7,000 MB/s | up to 6,100 MB/s | 1000TBW | NO | TM8FPV002T0C129 | ADD |
| Z44A7 M.2 PCIe SSD | 1TB | up to 7,000 MB/s | up to 5,500 MB/s | 500TBW | NO | TM8FPV001T0C129 | ADD |
| Z44A7 M.2 PCIe SSD | 512GB | up to 6,400 MB/s | up to 3,600 MB/s | 250TBW | NO | TM8FPV512G0C129 | ADD |
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
Weight
7g
Dimensions
80.0(L) x 22.0(W) x 3.7(H)mm
Vibration
80Hz~2000Hz/20G
Shock
1500G/0.5ms
MTBF
1,700,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the foll owing operating systems:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- MAC OS 10.4 or later
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
19.Mar.2024
