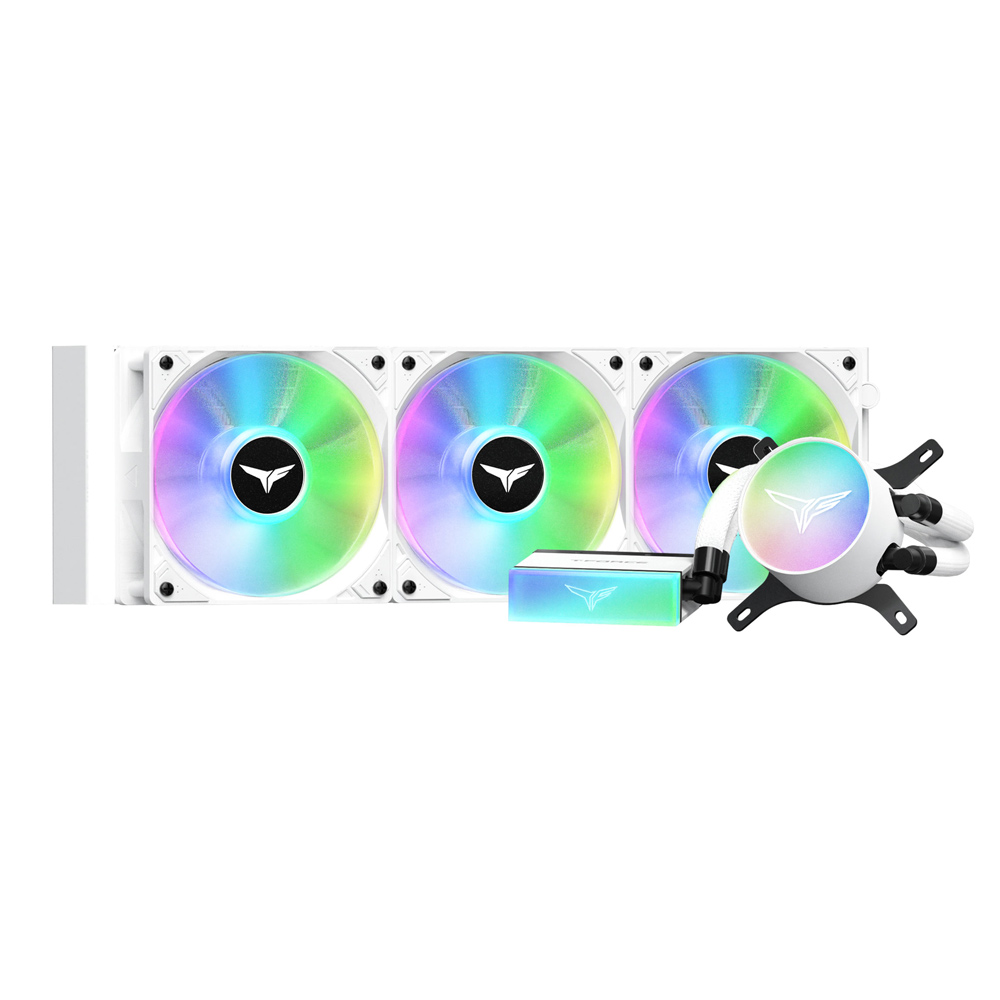

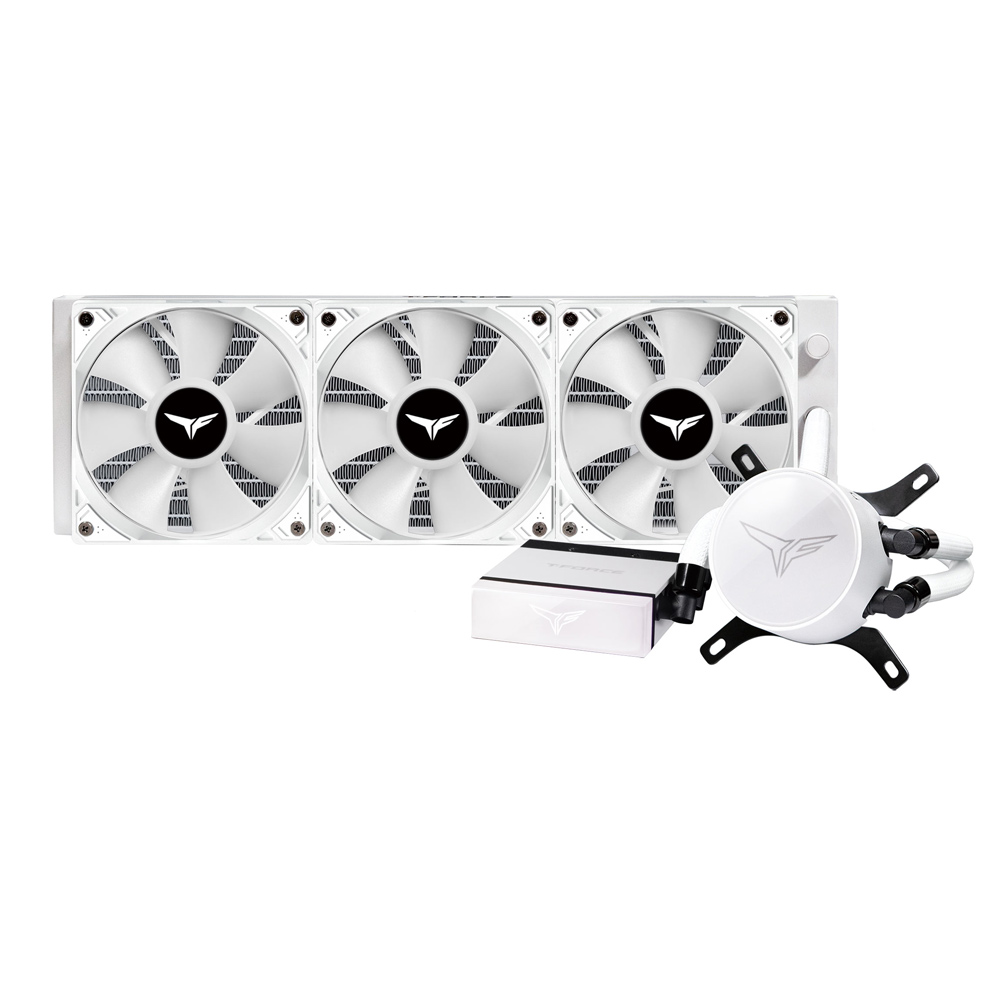

SIREN DUO360 AIO ARGB CPU & SSD Liquid Cooler
Feature
- Unique all-in-one cooling for CPUs & SSDs
- Detachable magnetic light module
- Dual ARGB mirror design
- 4000RPM pump delivers outstanding cooling performances
- Large & efficient 360mm cooling surface radiator
- 120mm ARGB hydraulic bearing fan
- AIO Dual Cooling Structure Patent
Taiwan Invention Patent (number: I847215)
Introduction

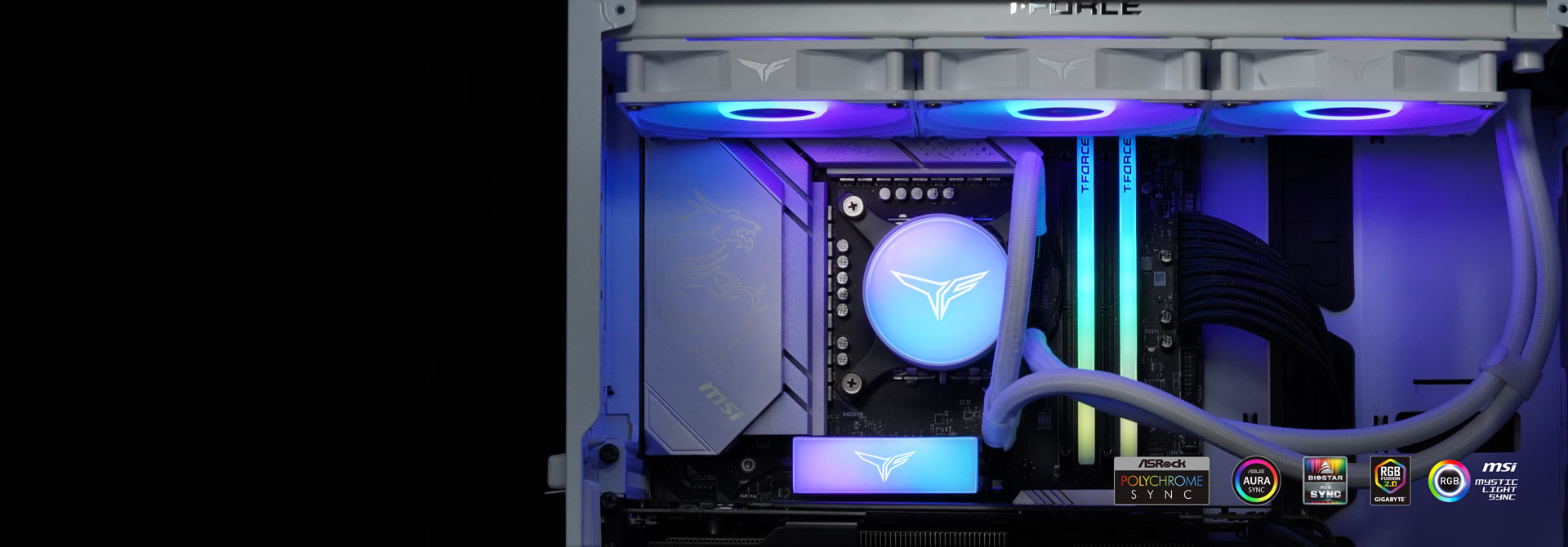

Unique all-in-one cooling for CPUs & SSDs
The SIREN DUO360 is the first AIO cooler with the design of CPU and PCIe SSD duo water blocks that supports multiple Intel and AMD CPU sockets. The PCIe SSD water block is also compatible with M.2 2280 SSDs and delivers an outstanding cooling performance.

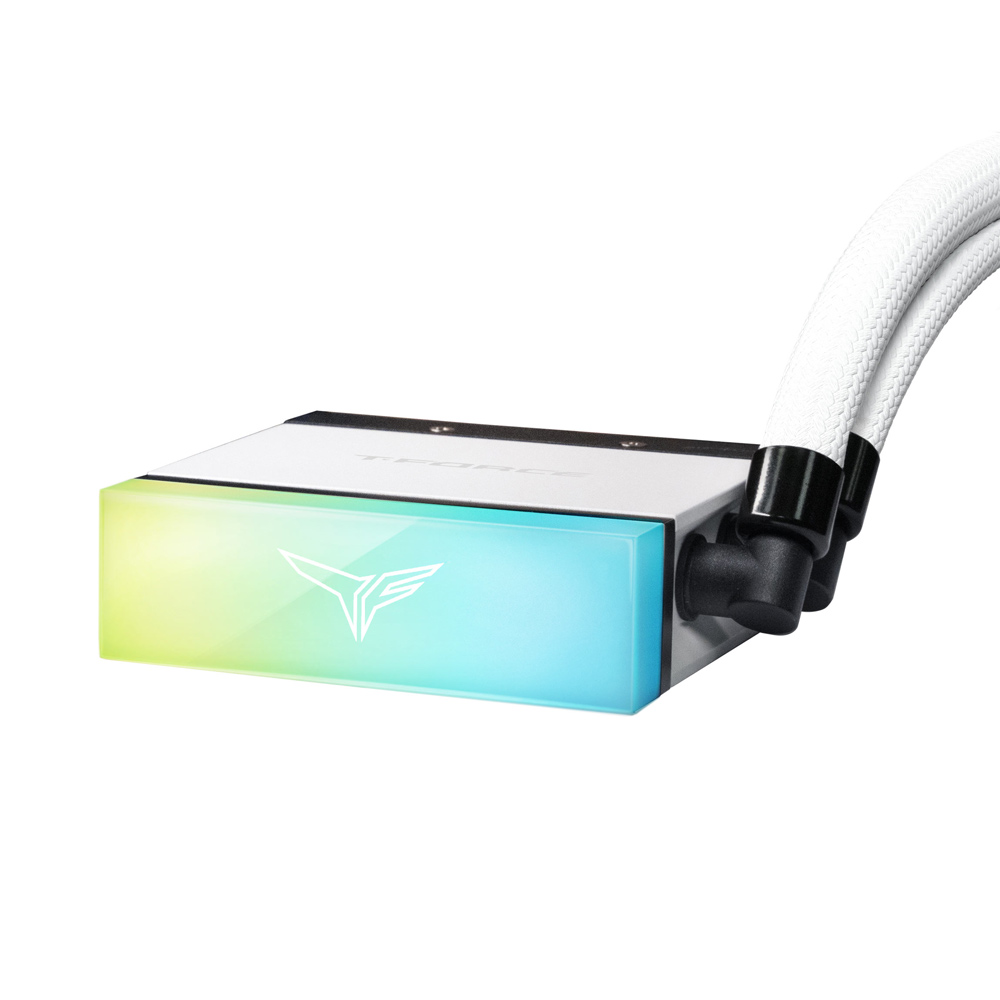

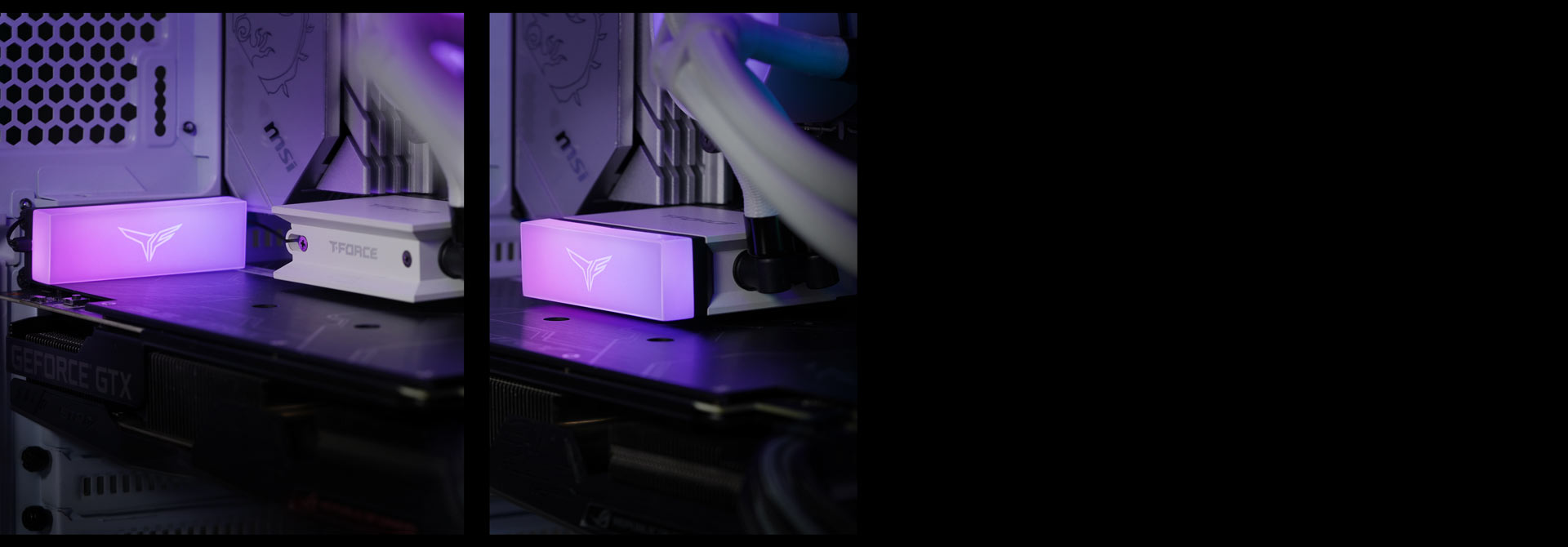

Detachable magnetic light module
The water block exclusively compatible with M.2 PCIe 2280 SSDs is also equipped with a detachable magnetic light module that can adhere to the top of the block or anywhere on the PC case.

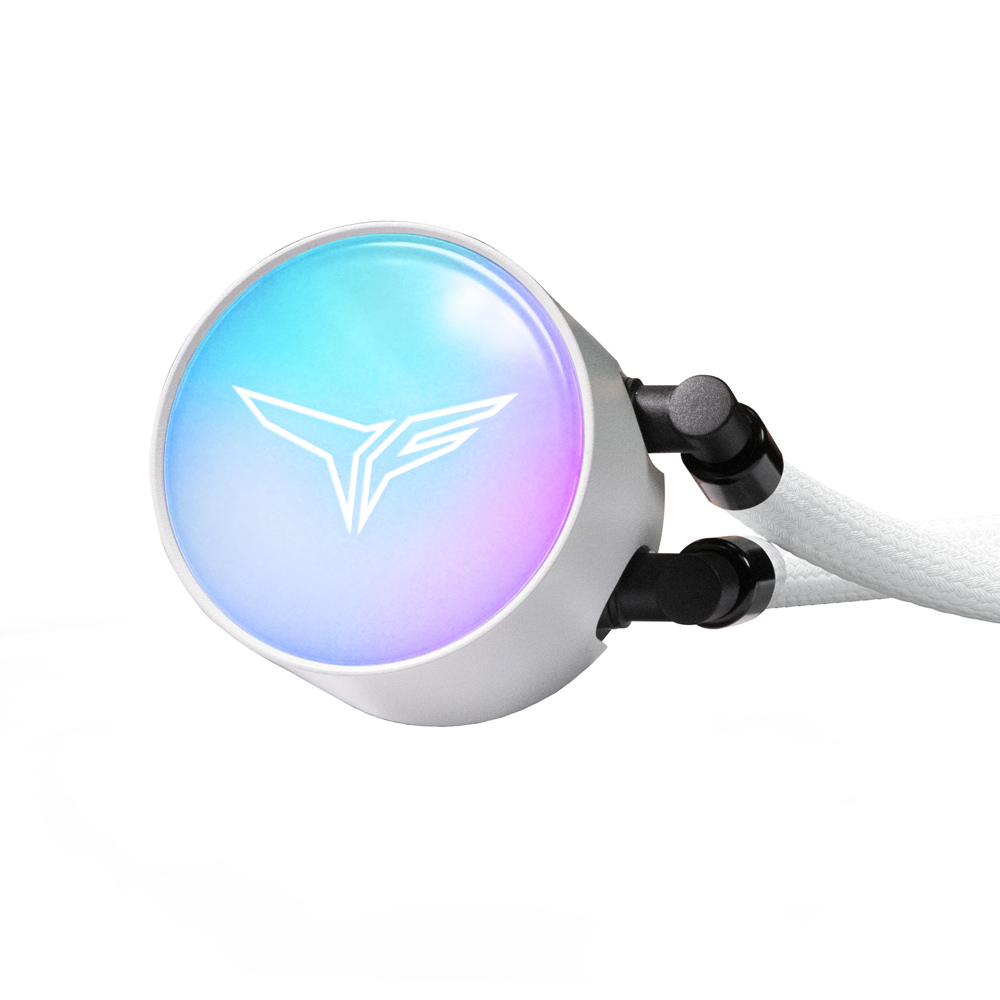

Dual ARGB mirror design
The dual mirror ARGB water blocks design supports lighting controllers such as ASUS Aura Sync, ASROCK-Polychrome Sync, BIOSTAR Advanced VIVID LED DJ, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, etc., delivering a stunning lighting experience.
4000RPM pump delivers outstanding cooling performances
The SIREN DUO360 is equipped with a high-speed 4000RPRM pump. After the cooling liquid flows through the PCIe SSD and CPU water block, it enters the large radiator for heat dissipation, which is accelerated with a fan. The outstanding design delivers incredibly cooling performances.

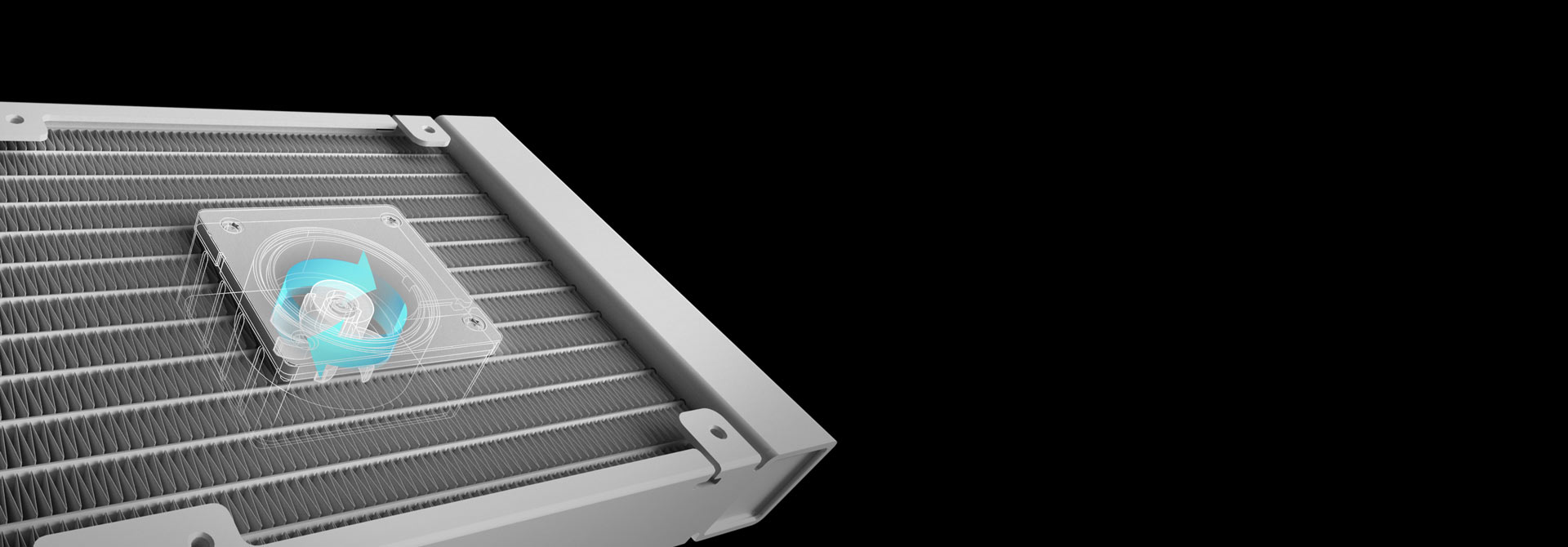

Large & efficient 360mm radiator
The SIREN DUO360 has a large 360mm radiator with a high-density jet fin that increases the cooling surface to effectively dissipate waste generated by the CPU and SSD.

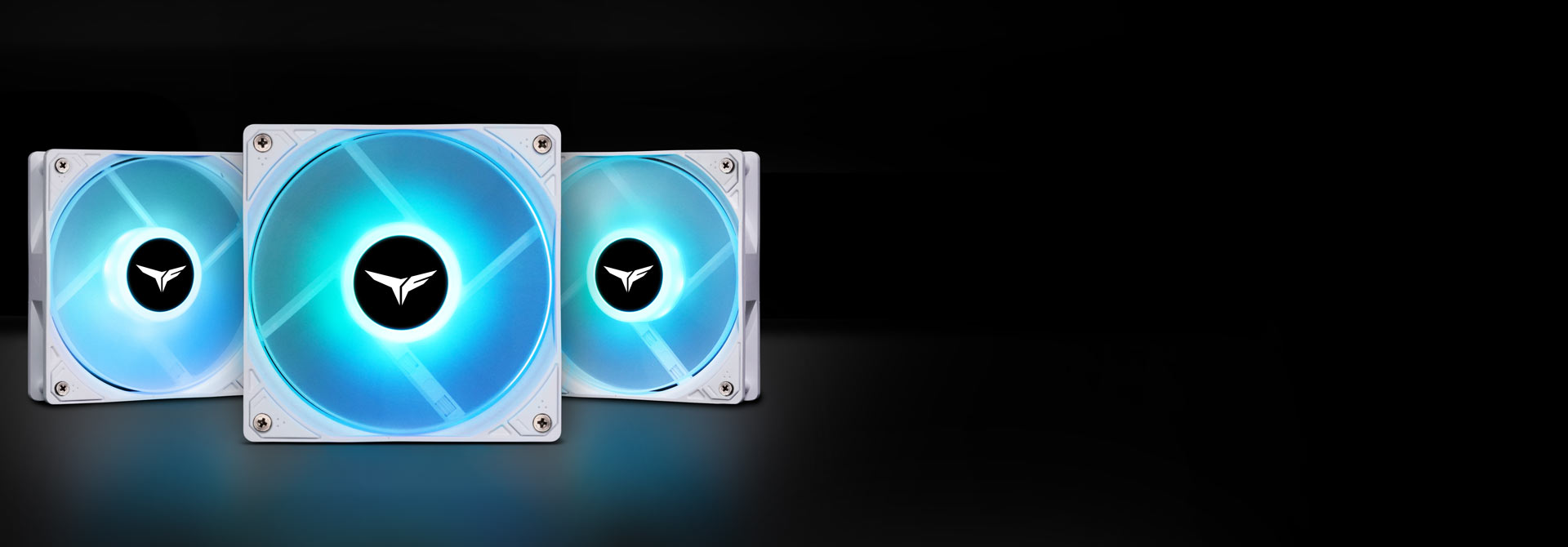

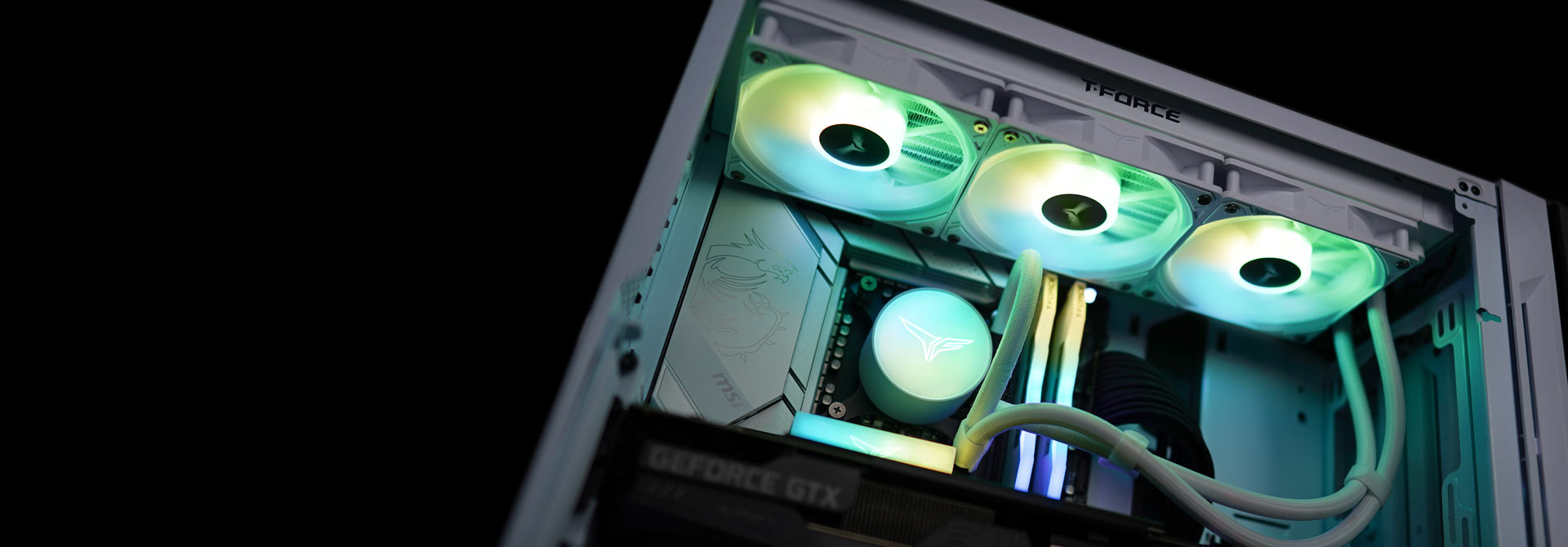

120mm ARGB Hydraulic Bearing Fan
The SIREN DUO360 offers three powerful ARGB fans, and the hydraulic bearing design ensures silent and reliable cooling even under high-speed performances.

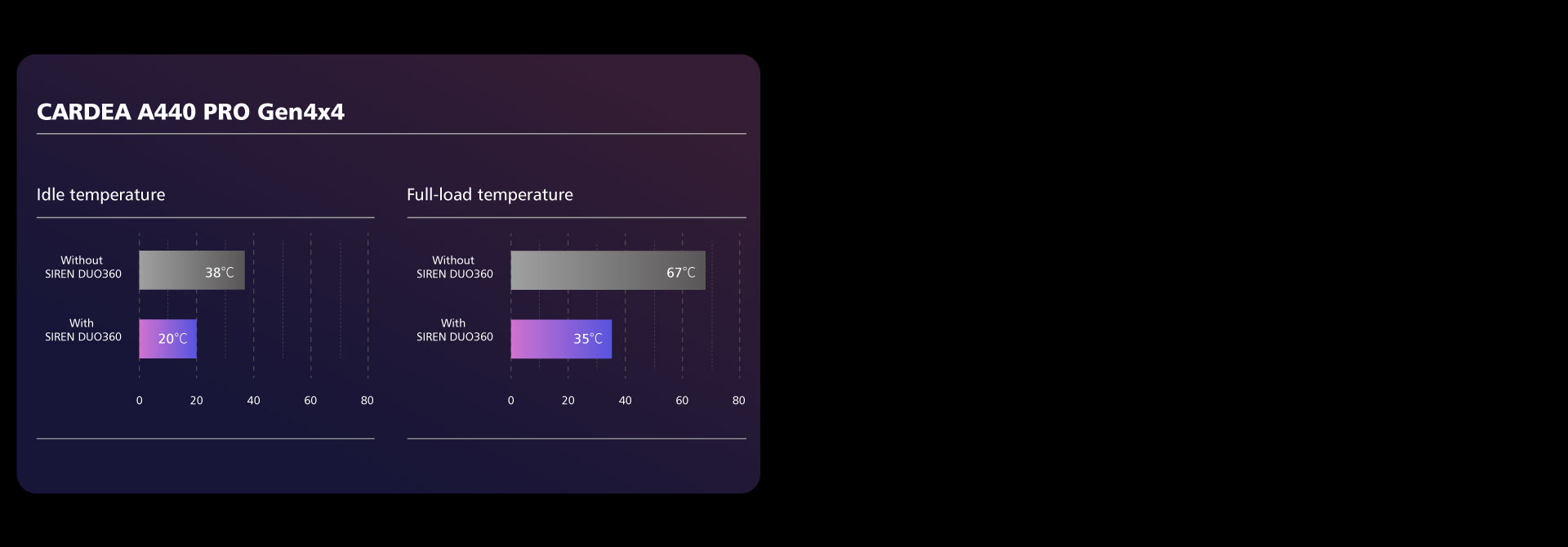

Temperature Range with Cooling from SIREN DUO360
- Mother Board: GIGABYTE Z690 AORUS XTREME
- CPU: Intel® Core™ i5-12400
- GPU: GeForce GT 710
- SSD: T-FORCE CARDEA A440 PRO Gen4 x4 4TB (Without heat sink)
- Testing Software: Crystal Disk Mark 8 for SSD & AIDA 64 for CPU (Both operating at full load)
- Ambient temperature: 25℃ (±1℃)
- Test Times:
SSD: Keep your computer idle for 5 minutes(idle temperature)CDM1GB, 3 rounds, TEST ALL (full-load temperature)
CPU: Test at full load for 30 minutes

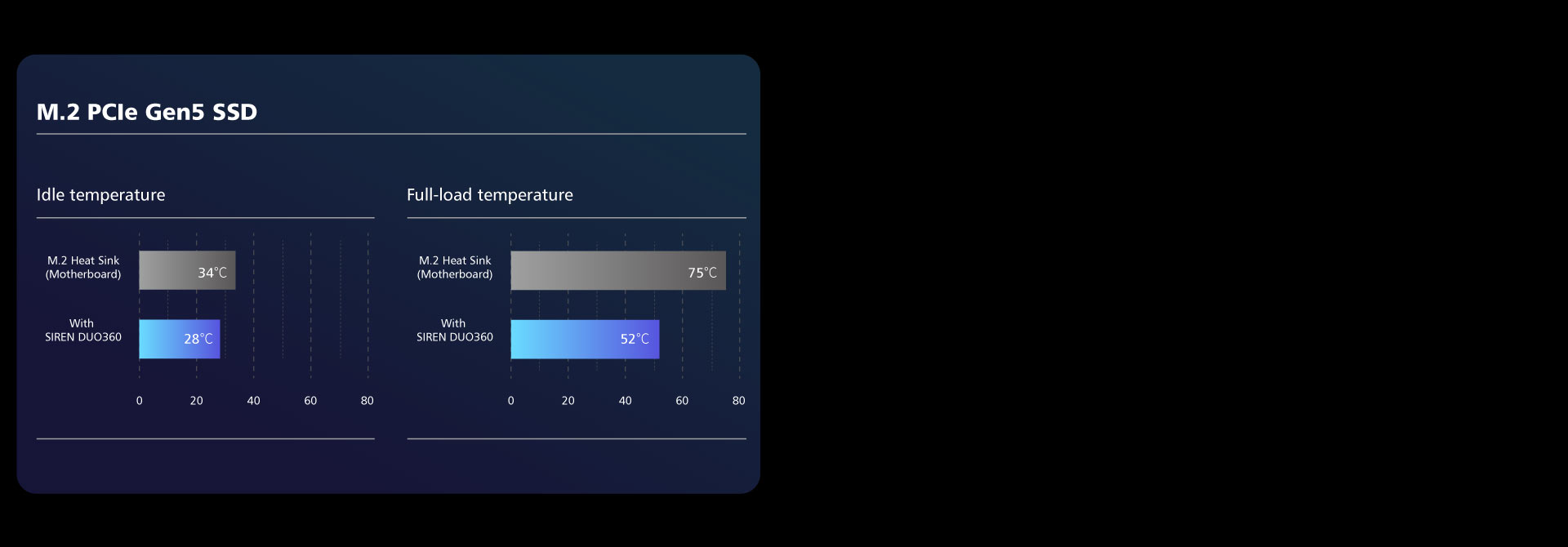

Temperature Range with Cooling from SIREN DUO360
- Mother Board: GIGABYTE X670 AORUS PRO AX
- CPU: AMD Ryzen7 7700X
- GPU: GeForce GT 710
- SSD: M.2 PCIe Gen5 SSD (Without heat sink)
- Testing Software: Crystal Disk Mark 8 for SSD & AIDA 64 for CPU (Both operating at full load)
- Ambient temperature: 25℃ (±1℃)
- Test Times:
SSD: Keep your computer idle for 5 minutes(idle temperature)CDM1GB, 5 rounds, TEST ALL (full-load temperature)
CPU: Test at full load for 30 minutes
Product Specifications
| Compatibility | CPU Socket | Intel: LGA 1700/1150/1151/1155/1156/1200/1366/2011/2011-3/2066 AMD: AM5/AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 |
| SSD Socket | M.2 PCIe 2280 SSD | |

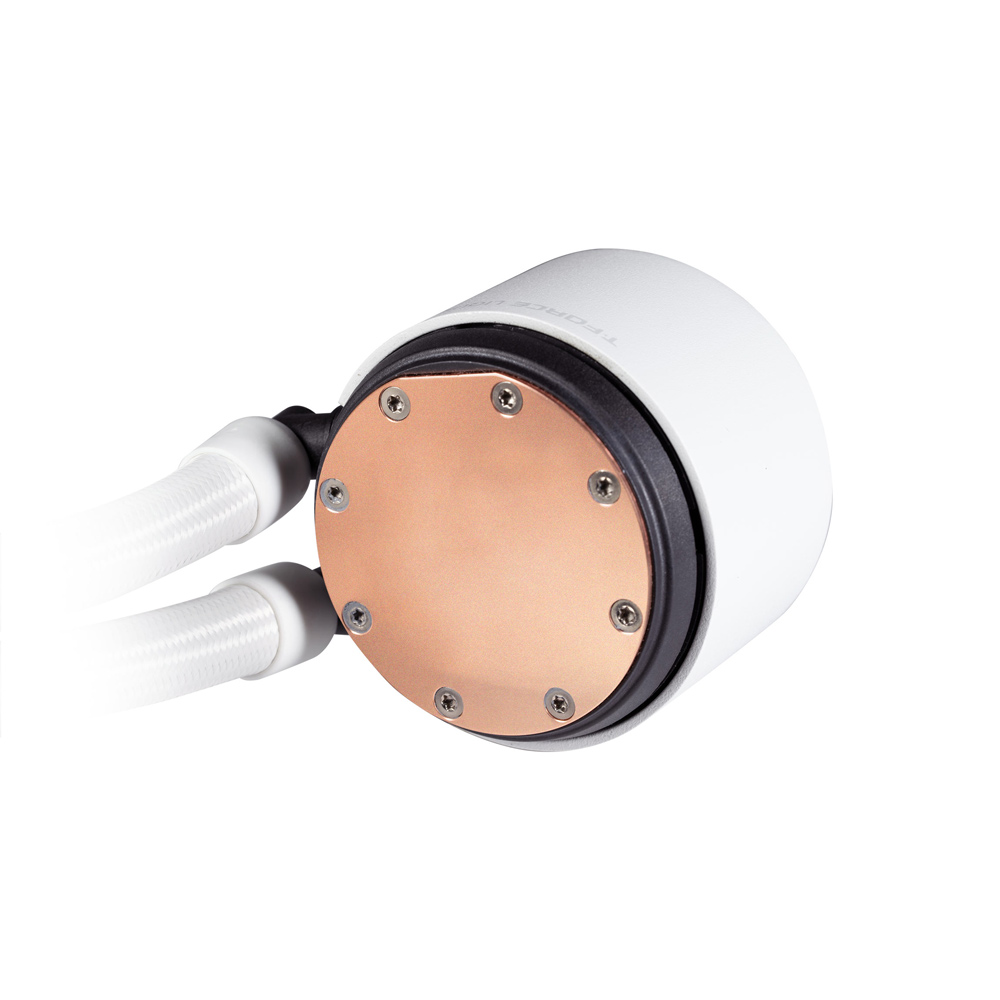

| CPU Water Block | Dimension | Φ65.5*49 mm |
| Block Plate | Copper | |
| Block | Aluminum | |
| SSD Water Block | Dimension | 78 x 58 x 23.6 mm |
| Block Plate | Copper | |
| Block | Aluminum | |
| SSD Lighting Module | Dimension | 78 x 23.6 x 20.8 mm |
| Radiator | Dimension | 396 x 120 x 27 mm |
| Materia | Aluminum | |
| Pump | Speed | 4000±10% RPM |
| Rated Current | 0.34 A (0.45 A MAX) | |
| Power Consumption | 4.08 W (5.4 W MAX) | |
| Noise | 22 dBA | |
| Flow | 850 ml/min | |
| Operating Temperature | -20℃~+60℃ | |
| Storage Temperature | -20℃~+70℃ | |
| Fan | Number of Fans | 3 |
| Dimension | 120 x 120 x 25 mm | |
| Rated Voltage | 12 V | |
| Control Method | 4-pin PWM | |
| Power Consumption | 0.6-4.2 W (LED 3.12 W) | |
| Speed | 600-2200±300 RPM | |
| Noise | 36.45 dBA (Max:39.5 dBA | |
| Air Flow | 60.2-70.07 CFM | |
| Air Pressure | 2.89-3.88 mm-H2O | |
| Tube | Radiator to SSD Water Block: 430 mm | |
| Radiator to CPU Water Block: 400 mm | ||
| CPU Water Block to SSD Water Block: 230 mm | ||
| Accessories | 1 to 3 ARGB Splitter Cable x1 | |
| Warranty | 2-year limited warranty | |
Notes
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.
- We reserve the right to modify product specifications without prior notice.
- To learn more about AIO Liquid Cooler warranty terms, please click here.
