CARDEA Z44Q M.2 PCIe SSD
Feature
- Enjoy PCIe Gen4, large capacity and fast speed all at once
- Two types of patented heat spreaders for you to choose from
- Effective cooling and installation is so easy
- Support the latest NVMe specification
- Taiwan Utility Patent (number: M541645)
- Taiwan Invention Patent (number: I703921)
- China Utility Patent (number: CN 211019739 U)
Introduction
Enjoy PCIe Gen4, large capacity and fast speed all at once

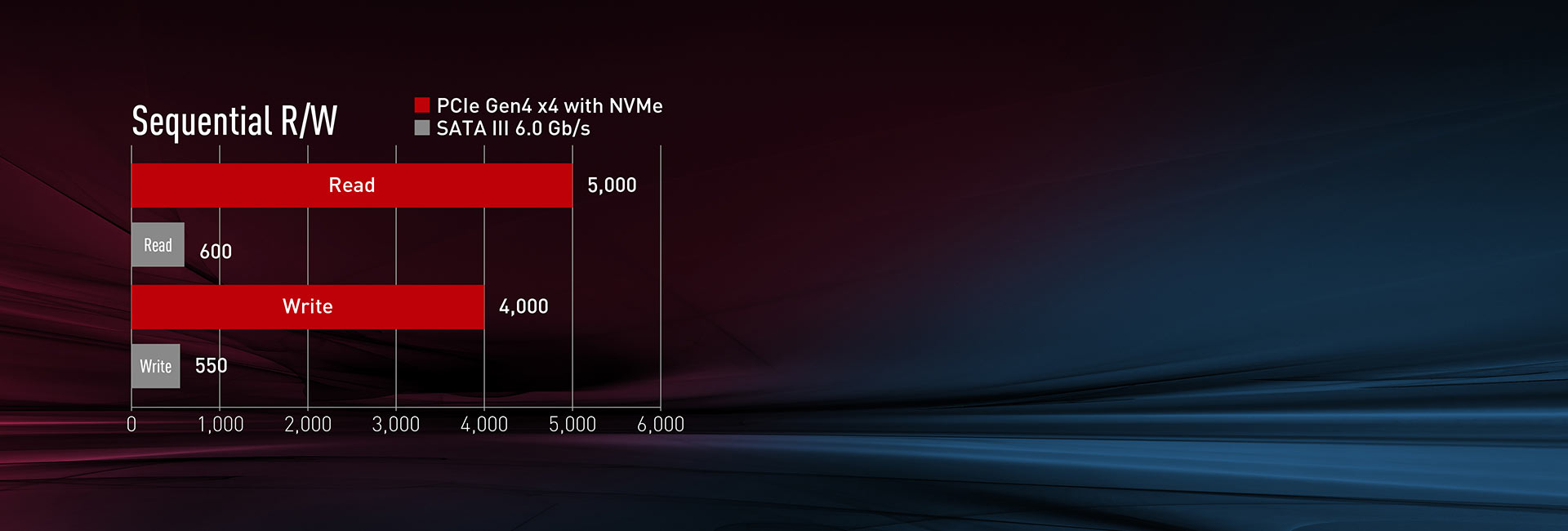

T-FORCE CARDEA PCIe 4.0 Z44Q SSD adopts QLC Flash and supports the latest PCIe Gen4x4 interface specifications, and has a capacity of up to 4TB to choose from. Up to 5,000/4,000 MB/s, provides superior performance that is 15 times faster than ordinary SATA SSD. At the same time, it is backward compatible with PCIe 3.0 interface.

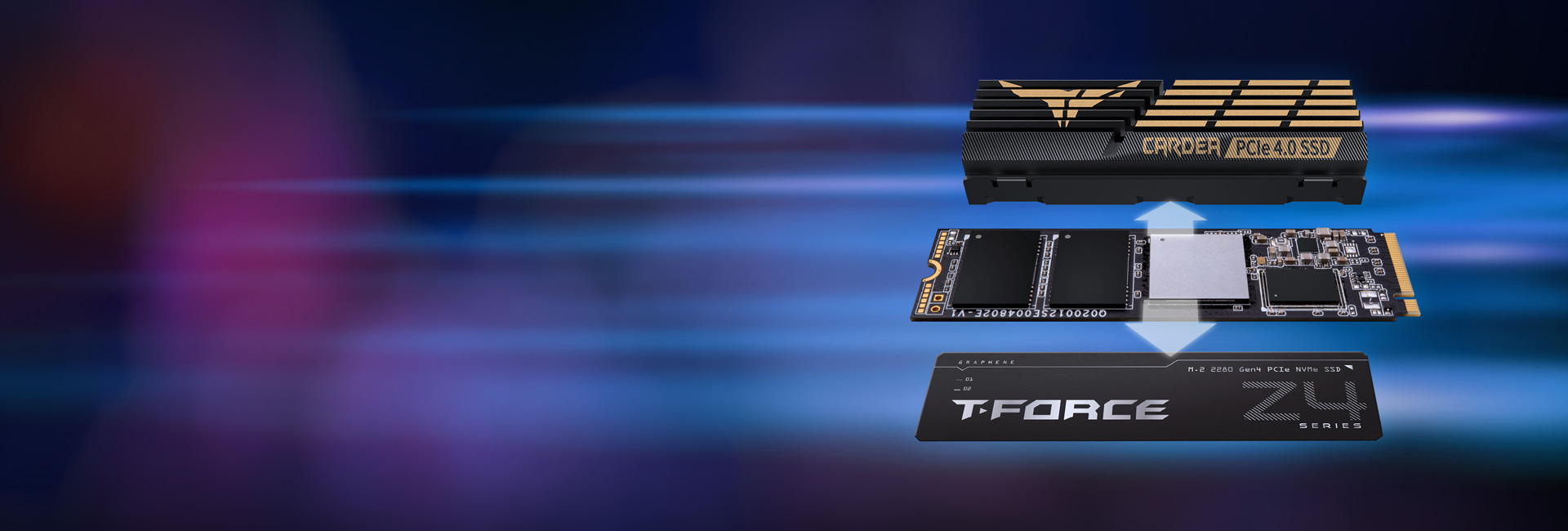

Two types of patented heat spreaders for you to choose from

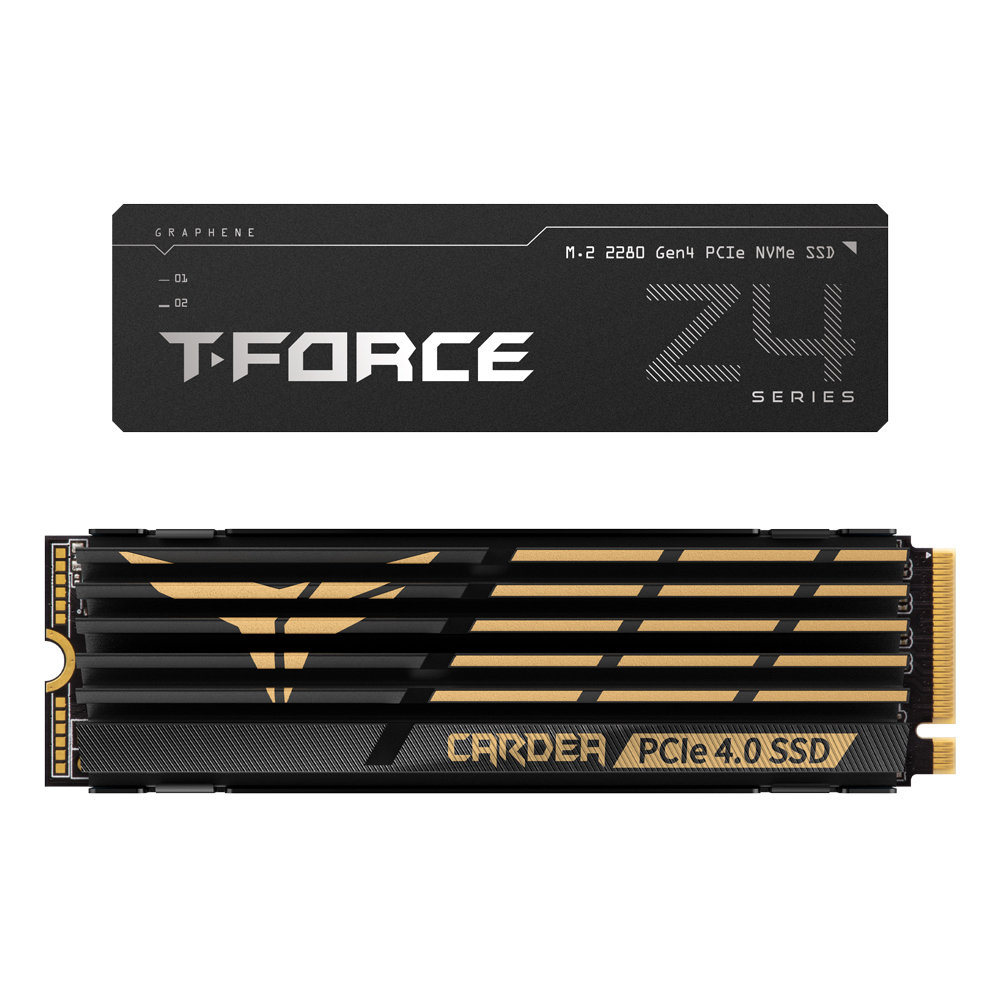

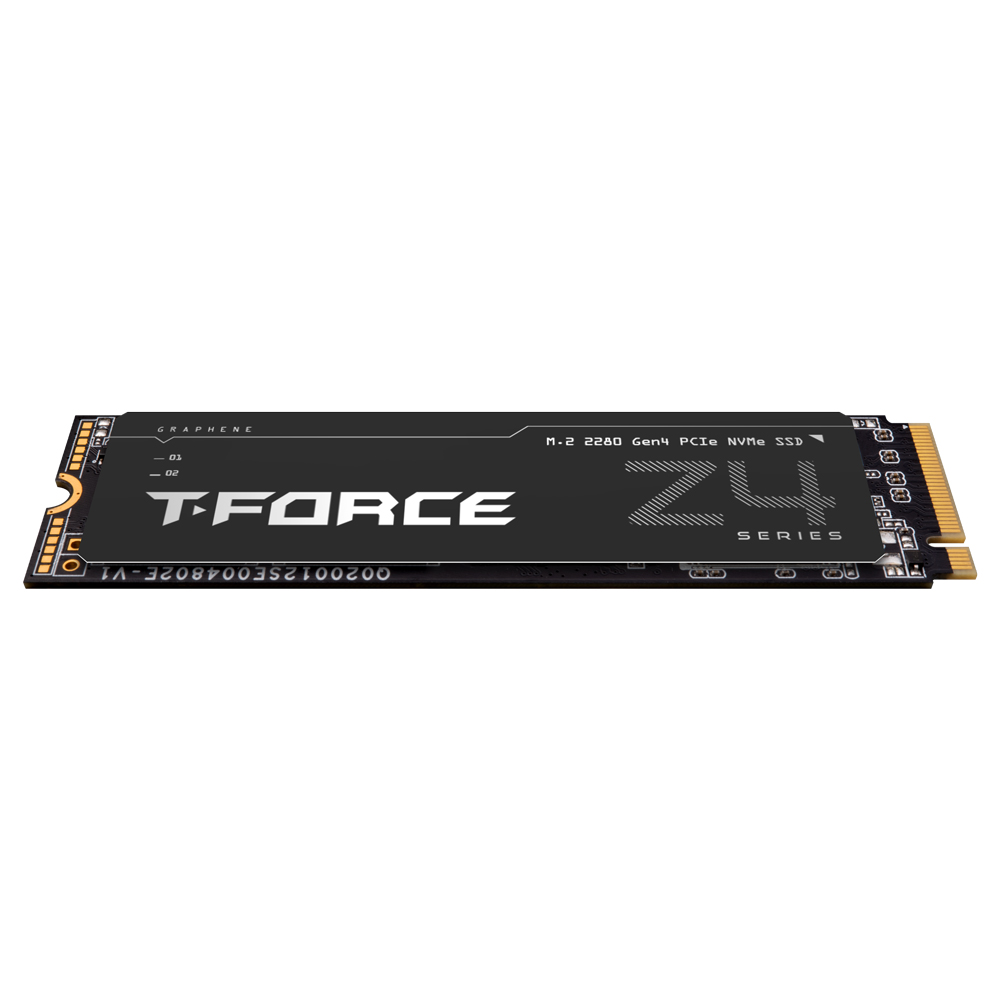

It is the first in the industry to offer two patented cooling modules, allowing you to choose your preferred cooling method between the patented aluminum fin type heat spreader with superior performance and the patented ultra-thin graphene heat spreader.
Effective cooling and installation is so easy

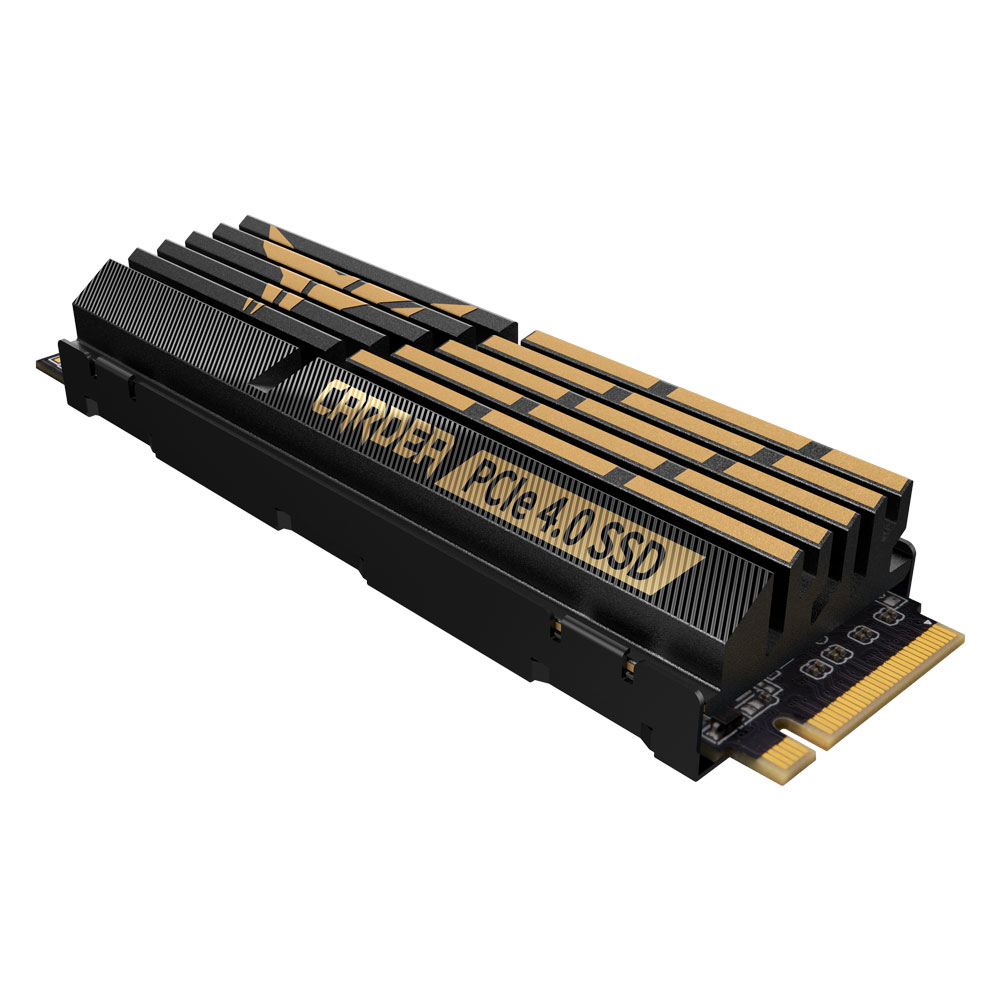

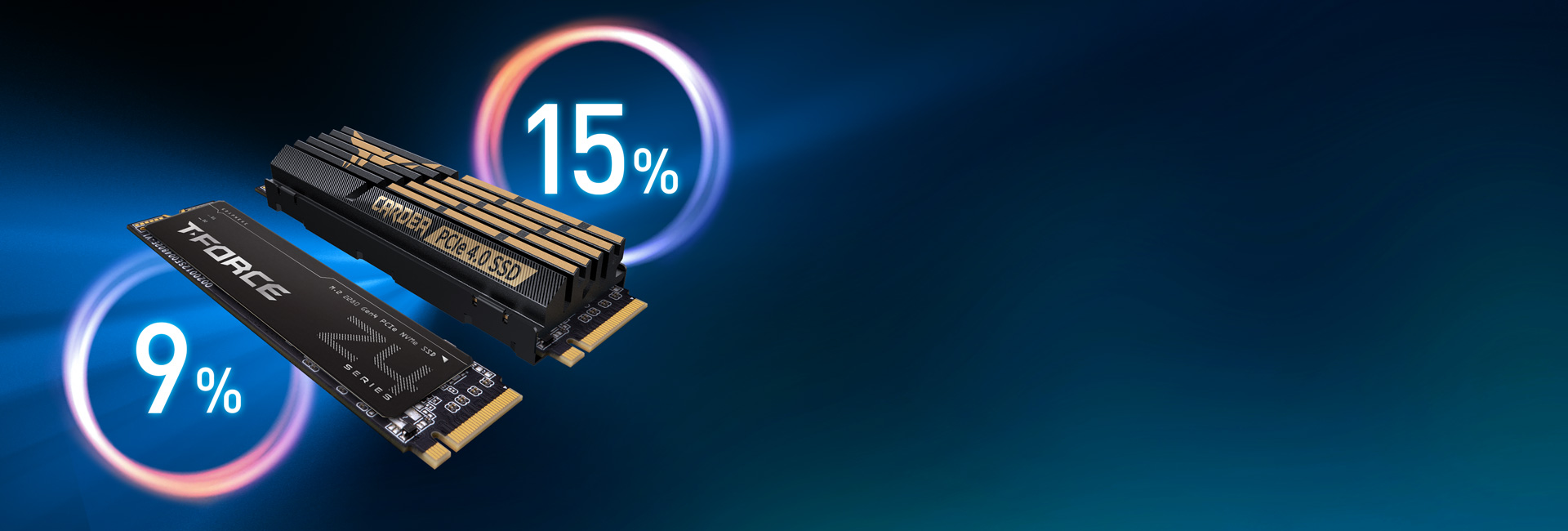

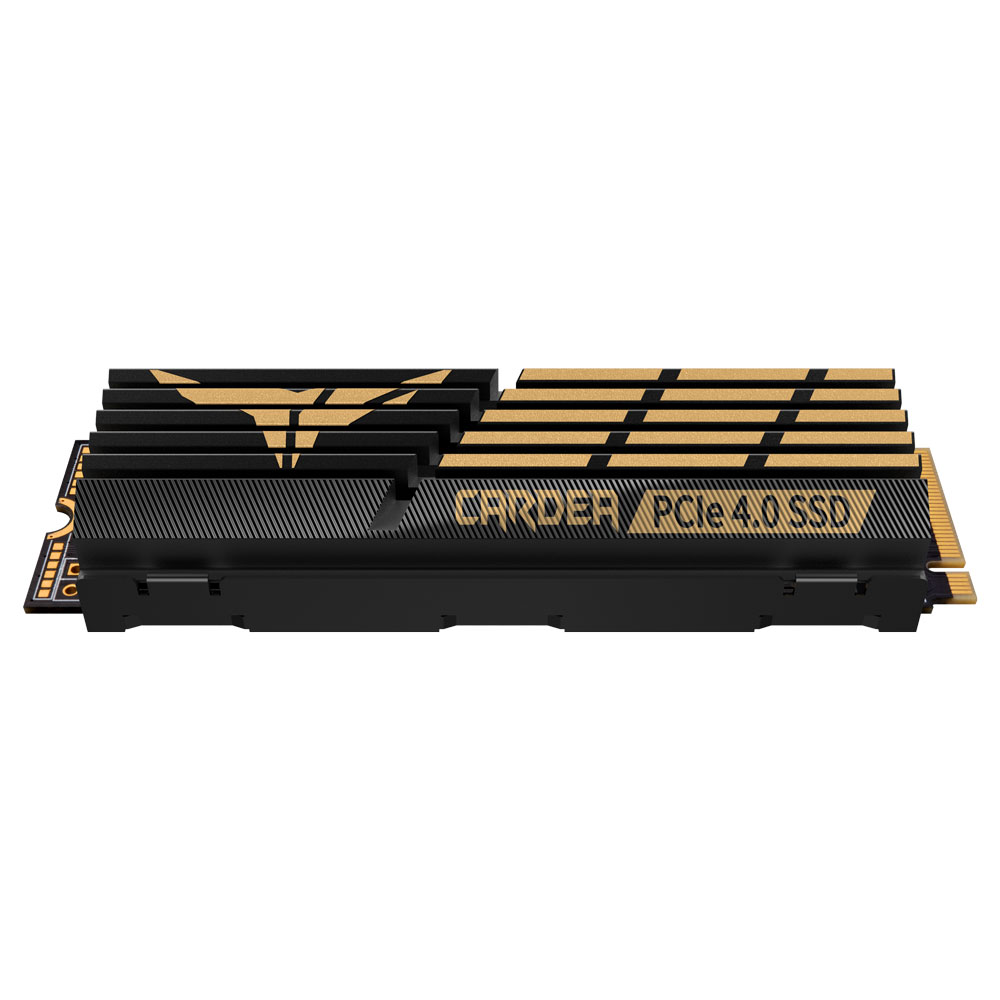

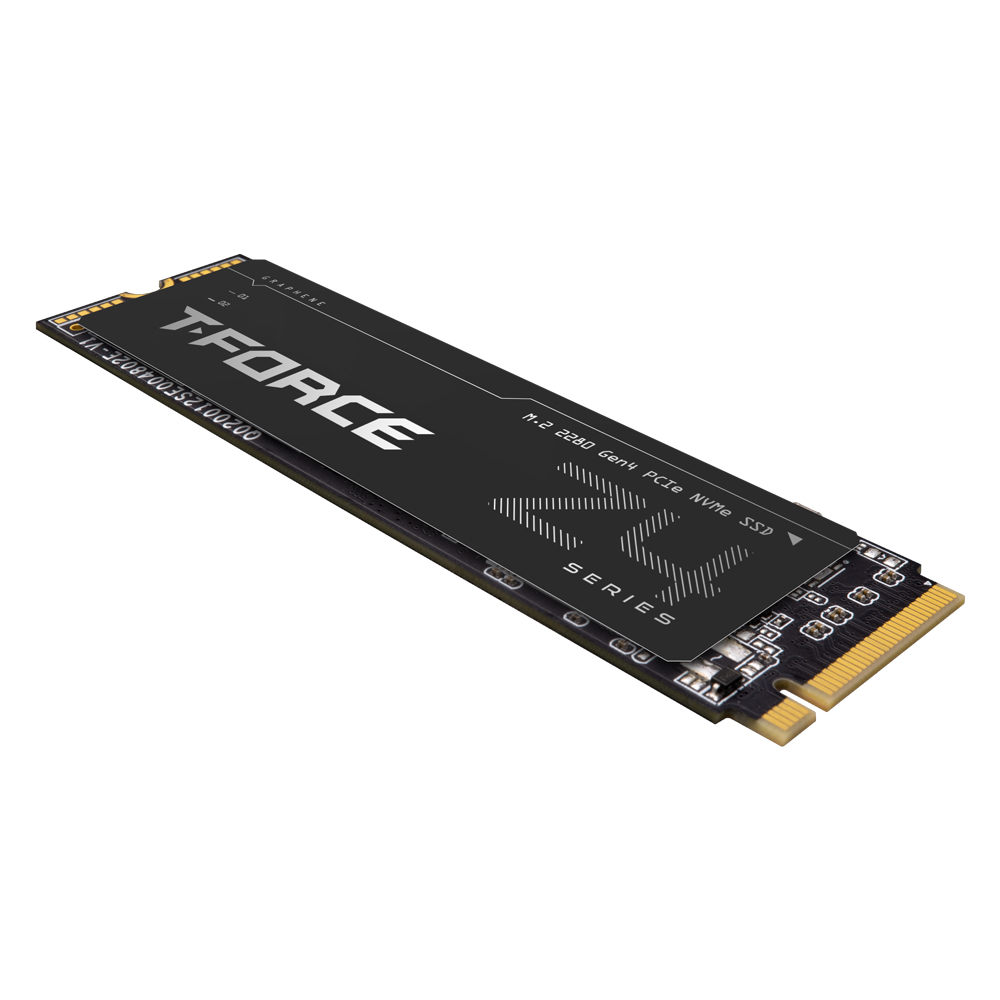

The patented high-strength aluminum heat sink features a unique thermal diversion design, capable of effectively reducing the temperature by up to 15%. The patented ultra-thin graphene heat sink features graphene material with excellent thermal conduction performance, delivering heat dissipation rates of up to 9%. Two patented heat sinks allow for flexible assembly without interference issues.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| CARDEA Z44Q M.2 PCIe SSD | 4TB | up to 5,000 MB/s | up to 4,000 MB/s | 800TBW | NO | TM8FPQ004T0C327 | ADD |
| CARDEA Z44Q M.2 PCIe SSD | 2TB | up to 5,000 MB/s | up to 3,700 MB/s | 400TBW | NO | TM8FPQ002T0C327 | ADD |
| CARDEA Z44Q M.2 PCIe SSD | 1TB | up to 5,000 MB/s | up to 3,500 MB/s | 200TBW | NO | TM8FPQ001T0C327 | ADD |
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
1TB Read/Write: up to 630K/750K
2TB Read/Write: up to 630K/880K
4TB Read/Write: up to 580K/850K
2TB Read/Write: up to 630K/880K
4TB Read/Write: up to 580K/850K
Weight
13g (with Graphene heat sink)
46g (with Aluminum heat sink)
46g (with Aluminum heat sink)
Dimensions
80.0(L) x 22.0(W) x 3.7(H) mm (with Graphene heat sink)
80.0(L) x 23.4(W) x 12.9(H) mm (with Aluminum heat sink)
80.0(L) x 23.4(W) x 12.9(H) mm (with Aluminum heat sink)
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1500G/0.5ms
MTBF
3,000,000 Hours
Operating System
System Requirements:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- M.2 SSD Installation Instructions
