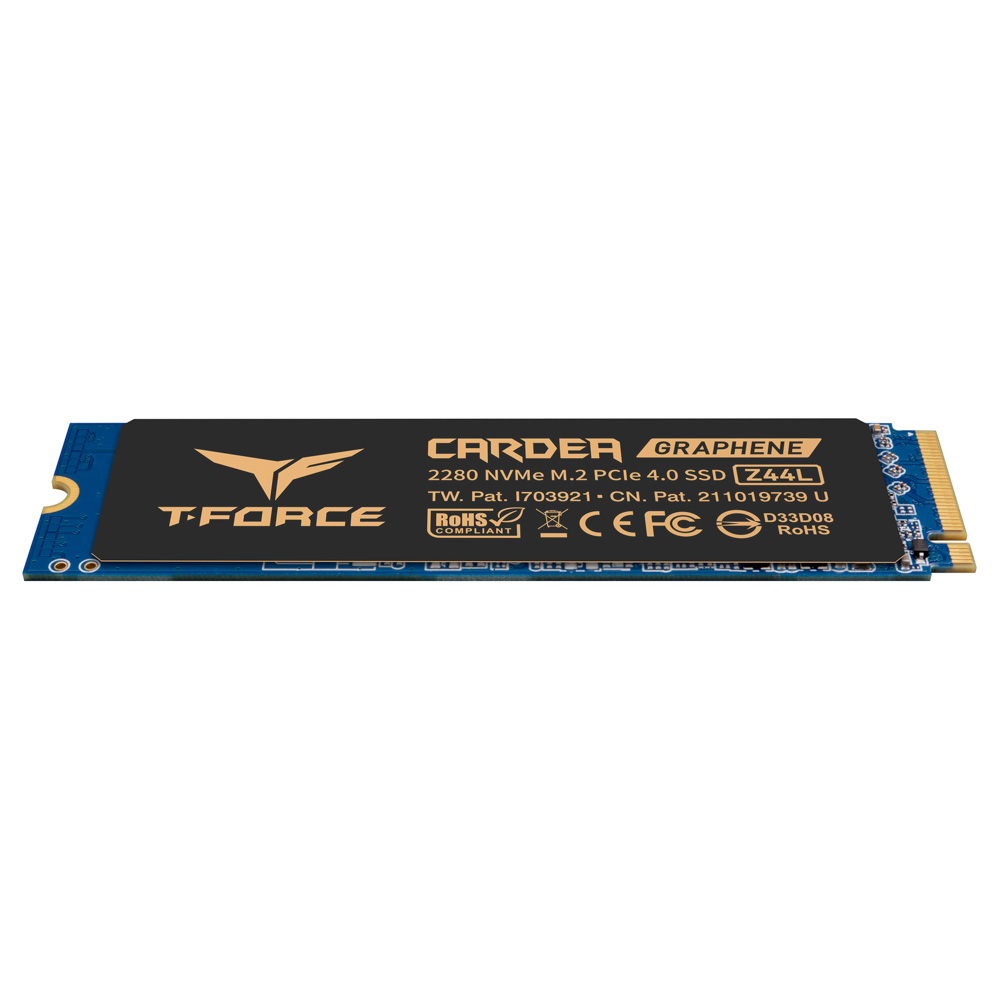

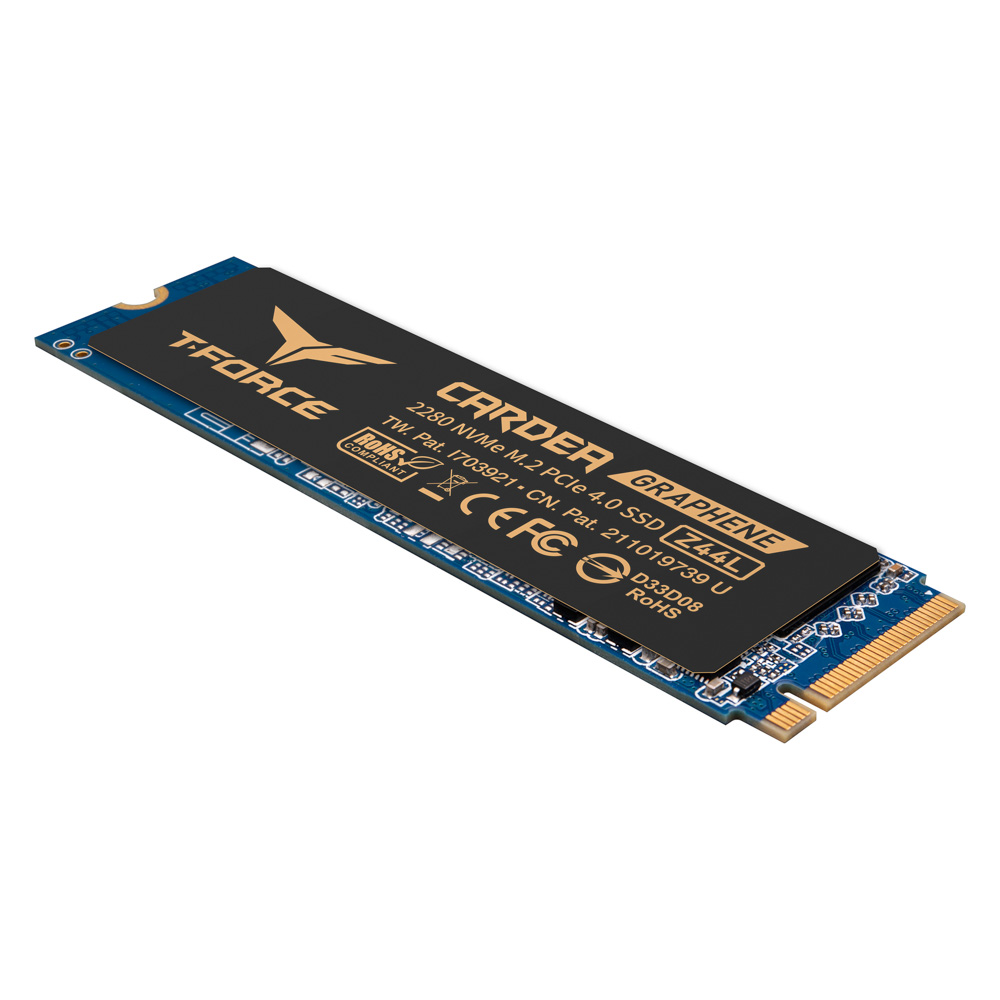

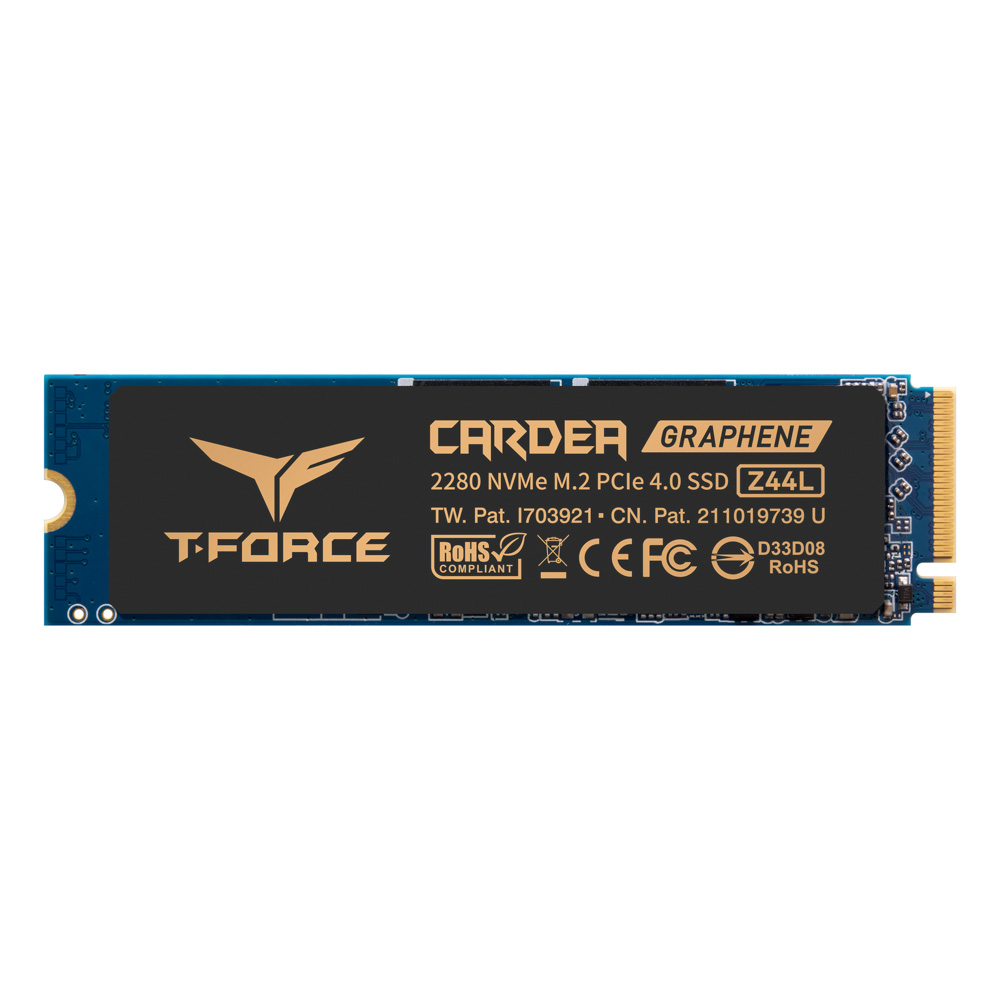

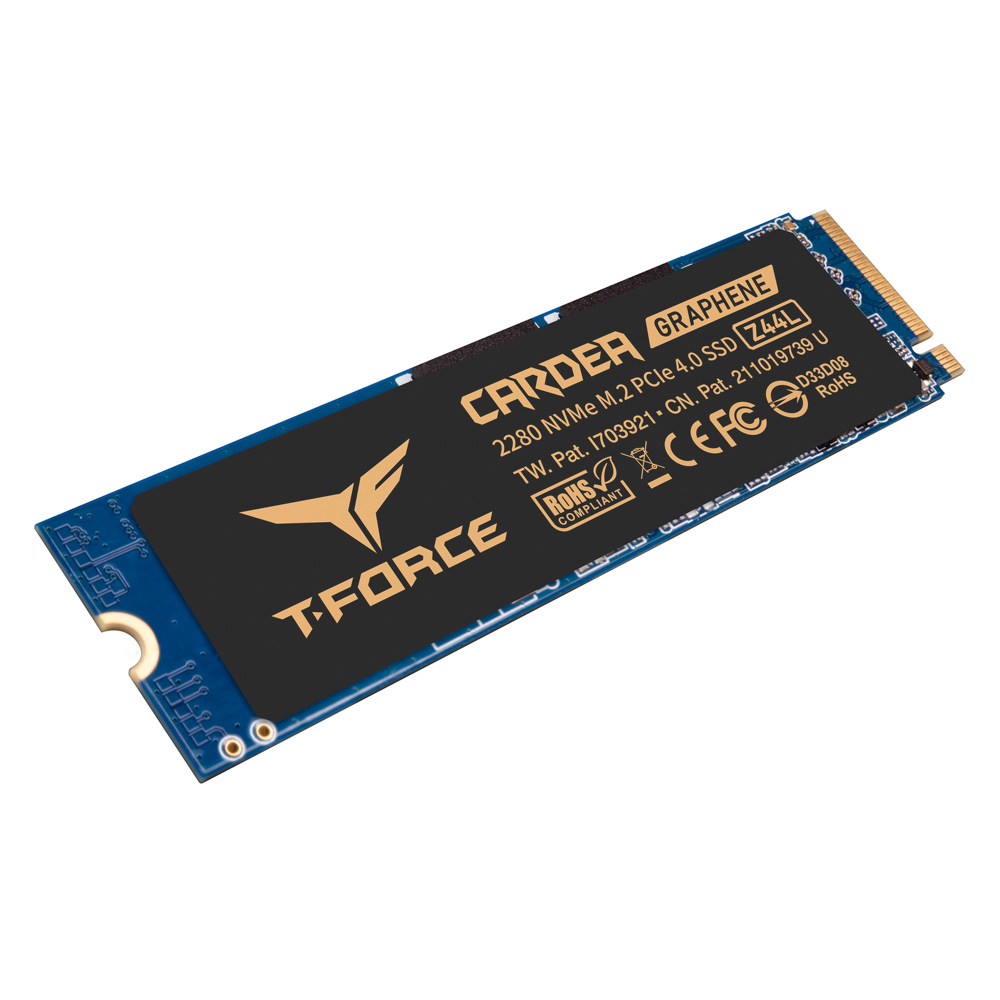

CARDEA Z44L M.2 PCIe SSD
Feature
- Enjoy the read/write performance of PCIe Gen4x4
- Patented ultra-thin graphene heat spreader
- Not only faster but also more stable and durable
- Supports the latest NVMe standard
- SSD smart monitoring software
- Five-year warranty offers you peace of mind
- United States Patent (number：US11051392B2)
- Taiwan Invention Patent (number: I703921)
- China Utility Patent (number: CN 211019739 U)
Introduction
Enjoy the read/write performance of PCIe Gen4x4
It supports the latest PCIe Gen4x4 with up to 3500/3000 MB/s, offering superior performance which is 7 times faster than typical SATA SSD, while also downward compatible with PCIe 3.0 specification.
Patented ultra-thin graphene heat spreader
The use of patented ultra-thin graphene heat spreader provides the best thermal conductivity material and assembly flexibility, allowing gamers to easily DIY on their own, and any motherboard heat spreader can be supported without interference.
Not only faster but also more stable and durable
Supporting SLC Cache technology and smart algorithm management mechanism can help ensure operational efficiency and maximize the performance of SSD. It is a reliable and trustworthy choice for data storage.
Supports the latest NVMe standard
By supporting the latest NVMe specification and optimizing the work division mechanism of NVM Sets and PLM (Predictable Latency Mode), it can effectively reduce latency time and the write loss and improve the QoS of the system. The use of the latest RRL (Read Recovery Level) technology can also improve the service life of SSD.
SSD smart monitoring software
TEAMGROUP provides an exclusive SSD smart monitoring software. It can keep track of the status of the products at any time, monitor their quality and performance, and then perform quick and easy related setup and testing.
Five-year warranty offers you peace of mind
The T-FORCE lab has conducted rigorous quality tests and provides a five-year warranty, so you can use it with peace of mind.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| CARDEA Z44L M.2 PCIe SSD | 2TB | up to 3,500 MB/s | up to 3,000 MB/s | 1200TBW | NO | TM8FPL002T0C127 | ADD |
| CARDEA Z44L M.2 PCIe SSD | 1TB | up to 3,500 MB/s | up to 2,700 MB/s | 600TBW | NO | TM8FPL001T0C127 | ADD |
| CARDEA Z44L M.2 PCIe SSD | 500GB | up to 3,300 MB/s | up to 2,400 MB/s | 300TBW | NO | TM8FPL500G0C127 | ADD |
| CARDEA Z44L M.2 PCIe SSD | 250GB | up to 3,300 MB/s | up to 1,300 MB/s | 150TBW | NO | TM8FPL250G0C127 | ADD |
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
250GB Read/Write: 220K/400K IOPS Max
500GB Read/Write: 400K/550K IOPS Max
1TB Read/Write: 500K/550K IOPS Max
2TB Read/Write: 500K/550K IOPS Max warranty
500GB Read/Write: 400K/550K IOPS Max
1TB Read/Write: 500K/550K IOPS Max
2TB Read/Write: 500K/550K IOPS Max warranty
Weight
7g (PCBA)
Dimensions
80.0(L) x 22.0(W) x 3.7(H)mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1,500G/0.5ms
MTBF
3,000,000 hours
Operating System
System Requirements:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- M.2 SSD Installation Instructions
