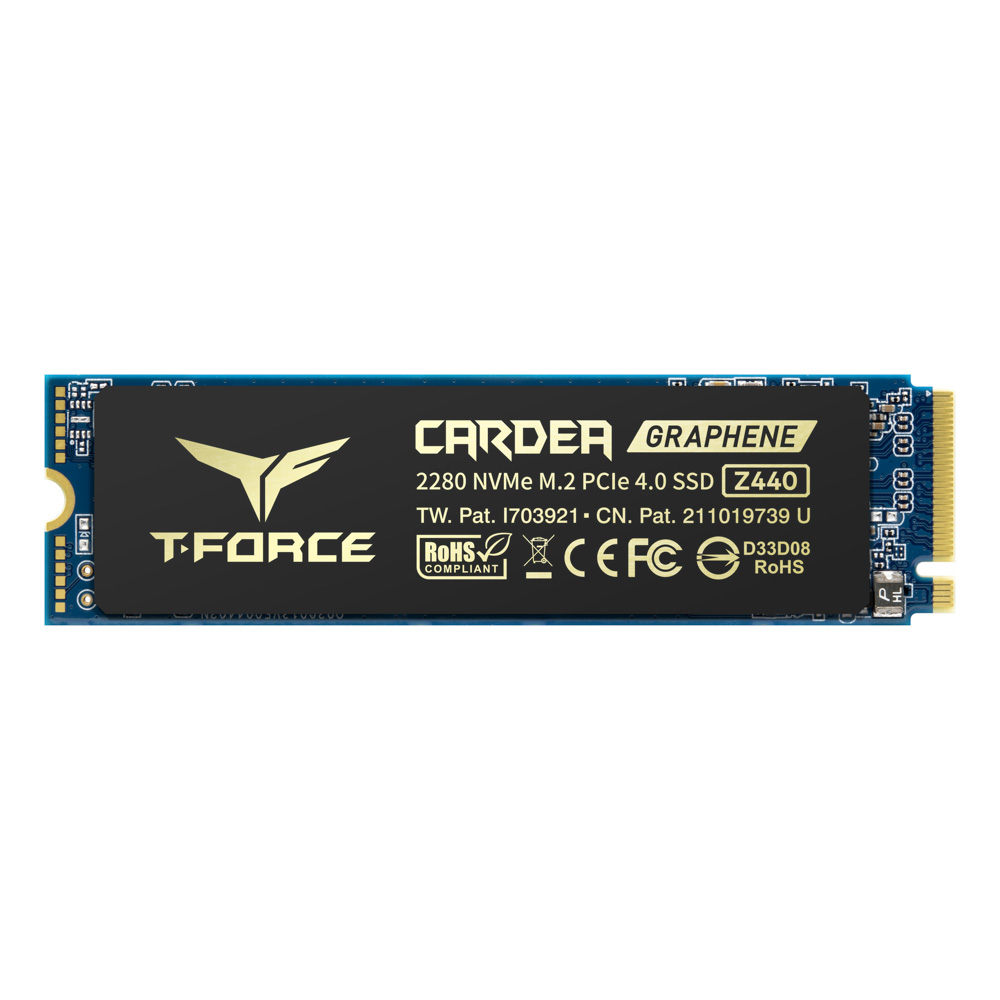

CARDEA ZERO Z440 M.2 PCIe SSD
Feature
- M.2 NVMe PCIe Gen4 x4 solid state drive. Supports the latest platform AMD X570
- Excellent performance – Read speed is up to 5,000 MB/s. Enhances the speed and performance of the overall system
- Patented ultra-thin graphene heat spreader
- Multiple protection, smart management technology – effectively monitors the status of solid state drive and maximizes its performance
- Product warranty – five-year product warranty with free technical support service
- Taiwan Invention Patent (number: I703921)
- China Utility Patent (number: CN 211019739 U)
Introduction
The aesthetic of thinness – releasing the ultimate performance

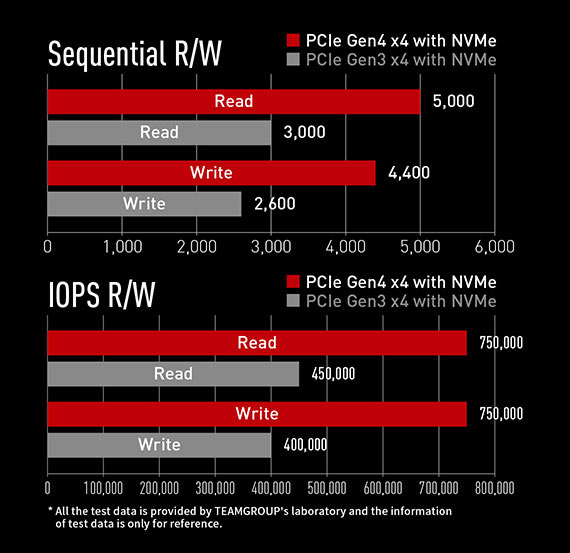

Adopts latest ultra-fast PCIe Gen4 x4 interface, supports NVMe 1.3 specs, and is equipped with DRAM Cache to push read/write speeds to over 5,000/4,400MB/s. Patented ultra-thin graphene heat spreader can effectively eliminate devices interference during installation. It can be installed on all major motherboard and M.2 slots. The aesthetic of thinness of T-FORCE is created and the ultimate performance is also released at the same time.
3D NAND + PCIe4.0 – capacity and performance progress greatly
The 3D flash memory is stacked in a three-dimensional way to offer up to 1TB/2TB of large storage.
In addition, it is downward compatible with the PCIe 3.0 platform, comprehensively improving gamer's gaming experience and satisfying the demand for various large-scale data computing tasks.
In addition, it is downward compatible with the PCIe 3.0 platform, comprehensively improving gamer's gaming experience and satisfying the demand for various large-scale data computing tasks.

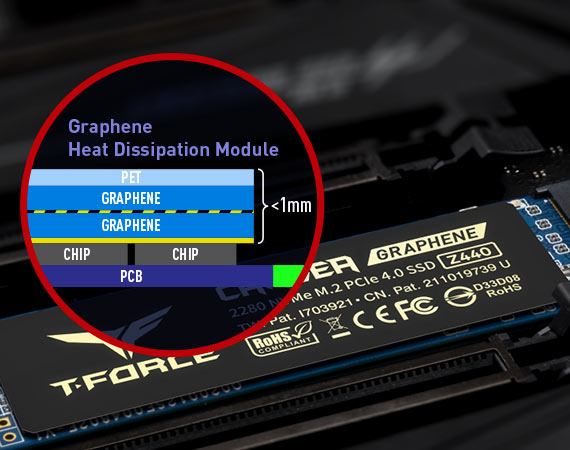

Well-proportioned – transfer heat source together
Patented ultra-thin graphene heat spreader can effectively eliminate both waste heat and device interference during installation. It can be installed on all major motherboard and M.2 slots. Even without the cooling module of the motherboard, it can still transfer heat source effectively, allowing gamers to enjoy high-speed performance.

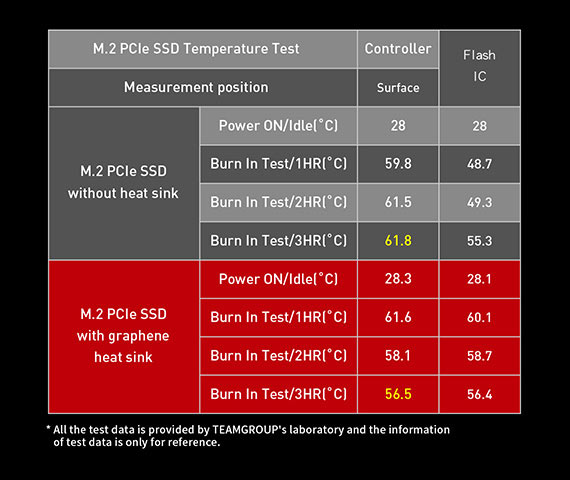

Patented ultra-thin graphene heat spreader – great heat dissipation performance
After T-FORCE’s long-term and rigorous internal laboratory tests and burn-in test, Patented ultra-thin graphene heat spreader has been developed and is able to provide more than 9% of cooling effect during actual continuous reading/writing for over 3 hours, perfectly showcasing an excellent heat dissipation performance.

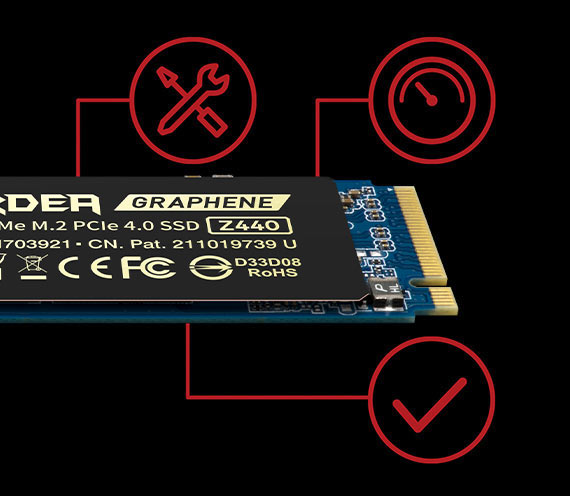

Smart management technology – trustworthy reliability
The built-in smart algorithm management mechanism has functions such as GC (garbage collection), TRIM command, LDPC (Low Density Parity Check Code) error correction mechanism, E2E Data Protection, etc. which are able to help in operation efficiency, prolong the service life of the SSD, while also allowing gamers to ensure data security, maximize its performance and the stability of data transfer.
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
1TB Read/Write: 750K/750K IOPS Max
2TB Read/Write: 750K/750K IOPS Max
2TB Read/Write: 750K/750K IOPS Max
Weight
9g
Dimensions
80.0(L) x 22.0(W) x 3.7(H)mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1500G/0.5ms
MTBF
1,700,000 Hours
Operating System
System Requirement:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- M.2 SSD Installation Instructions
