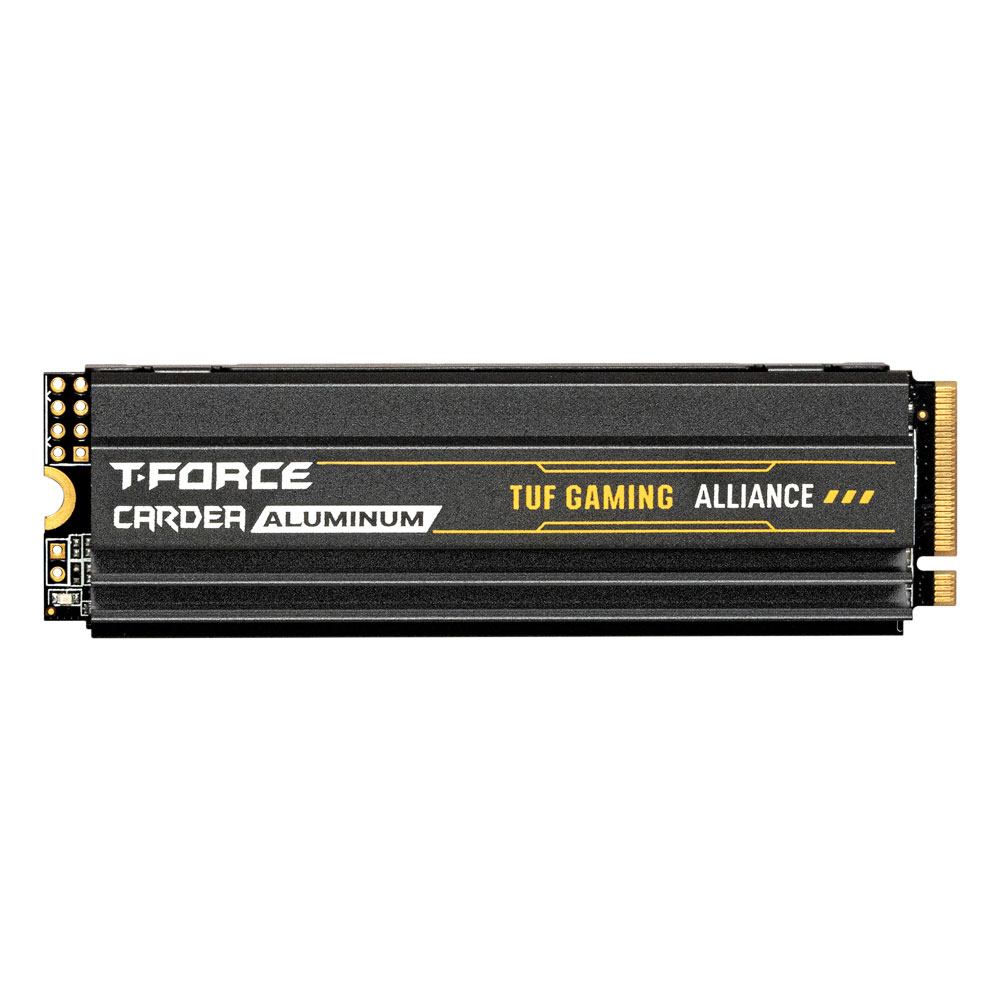

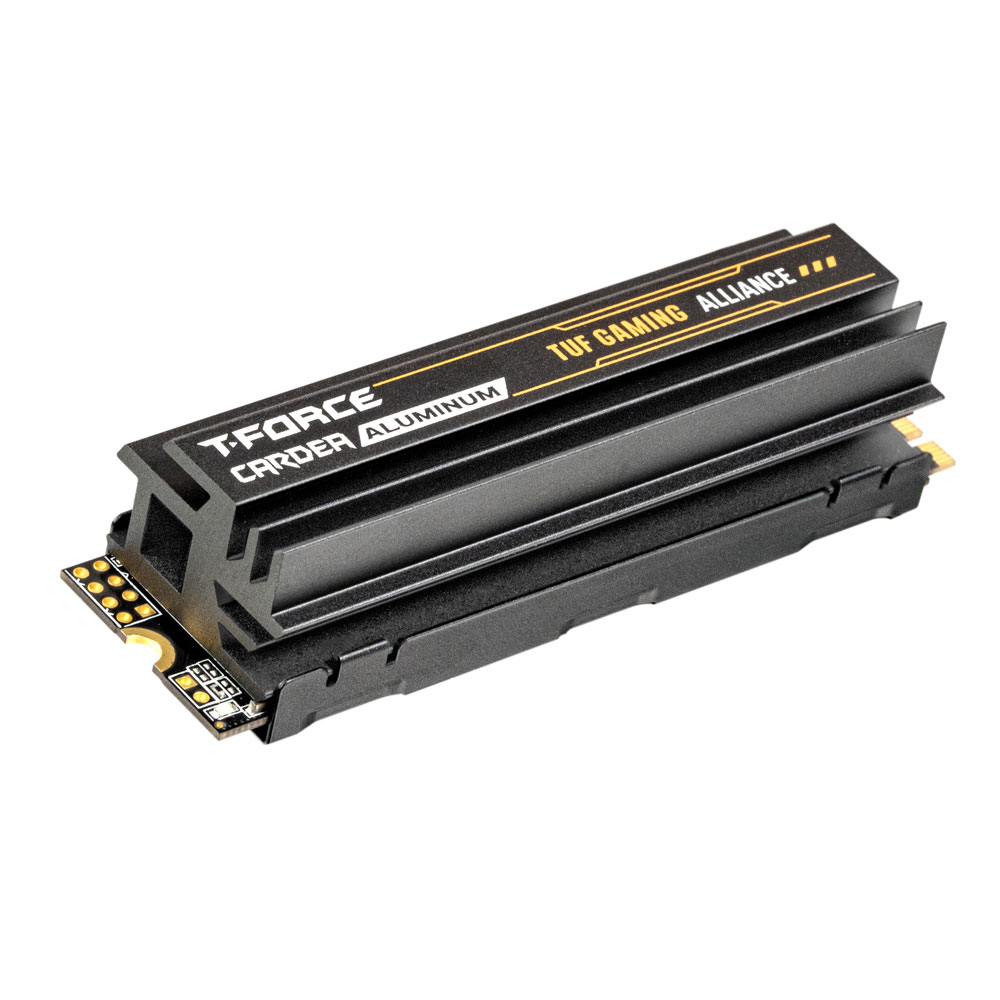

CARDEA Z440 TUF Gaming Alliance M.2 PCIe SSD
Feature
- First M.2 PCIe4.0 SSD Certified by TUF Gaming Alliance
- Reinforced Aluminum Heat Sink Effectively Reduces Temperature by 48% for Fast Performance
- Ultimate Performance Unleashed
- Smart Algorithm for Reliable Performance
- Five-year Warranty for Maximum Protection
Introduction
First M.2 PCIe4.0 SSD Certified by TUF Gaming Alliance
The T-FORCE x ASUS TUF Gaming Alliance collaboration is launching their first M.2 PCIe4.0 SSD with ASUS TUF Gaming Alliance certification. The M.2 PCIe4.0 SSD has undergone rigorous testing and is imbued with unique TUF Gaming design elements. Gamers looking for a new addition to their TUF mainframe can't miss out on the M.2 PCIe4.0 SSD.
Ultimate Performance Unleashed
M.2 PCIe4.0 SSD supports the latest ultra-fast PCIe Gen4x4 interface and NVMe specs. The M.2 PCIe4.0 SSD is also equipped with DRAM Cache that delivers superior performance in continuous read/write speed of 5,000/4,400MB/s and IOPS of 750K/750K to help gamers beat out opponents in key moments.

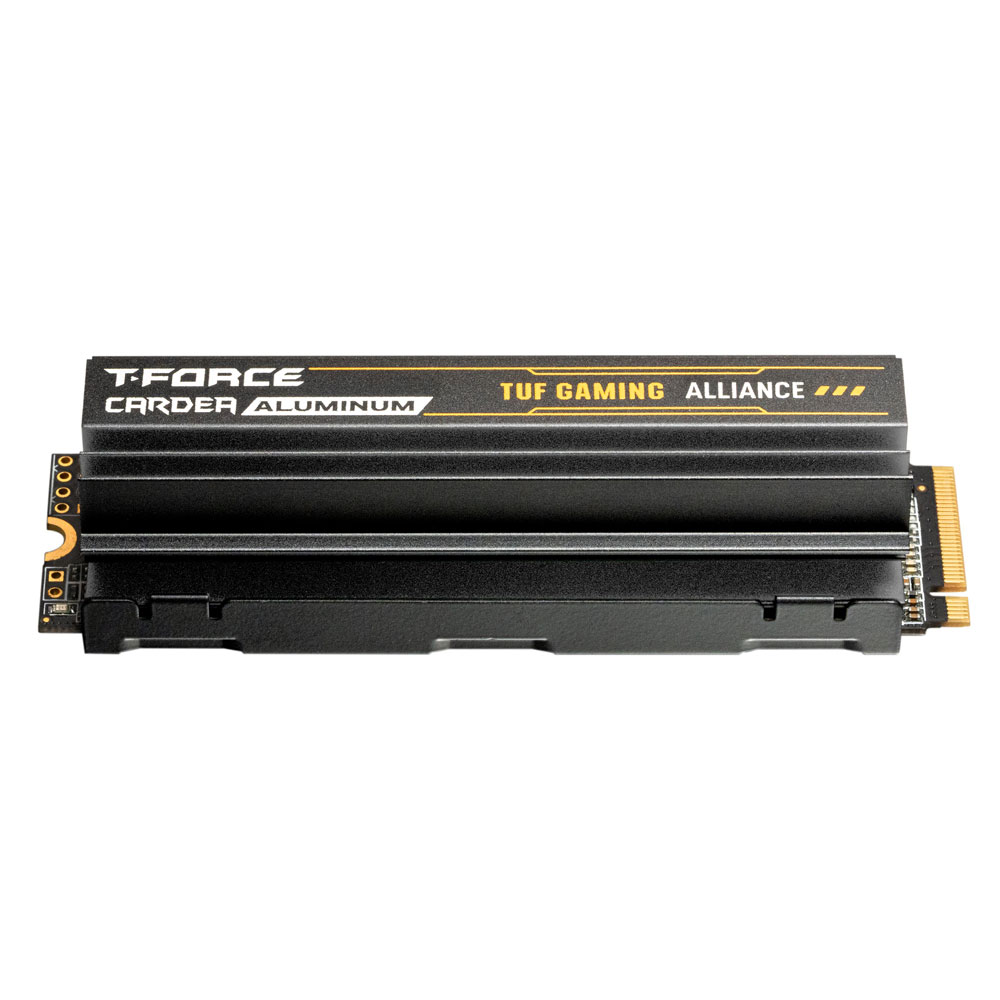

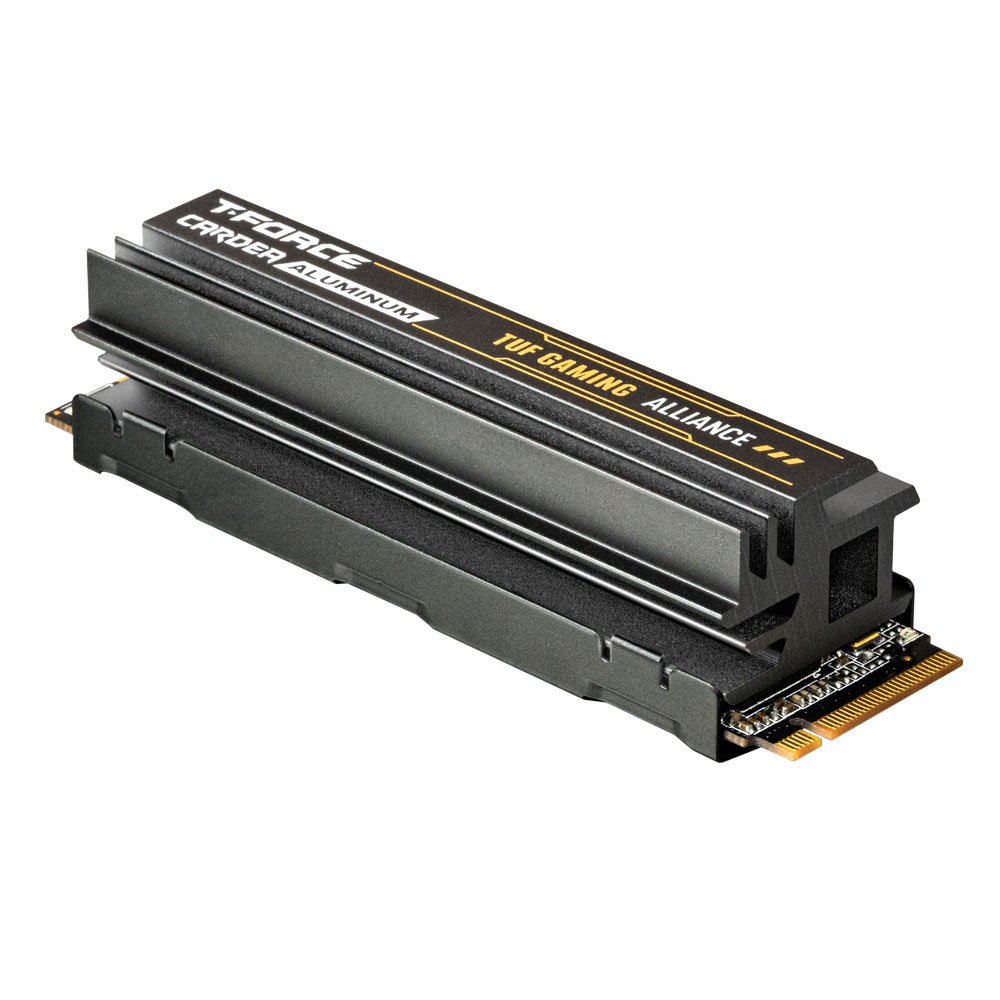

Reinforced Aluminum Heat Sink Effectively Reduces Temperature by 48% for Fast Performance
Equipped with reinforced aluminum Heat Sink that can effectively reduce temperatures by 48% with its special thermal conductive design. The M.2 PCIe4.0 SSD is, therefore, able to better prevent slow speeds from overheating than other SSDs and can offer more reliable read/write speeds.
Smart Algorithm for Reliable Performance
Built-in smart algorithm mechanisms such as GC (garbage collection), TRIM commands, LDPC (Low Density Parity Check) error correction codes, E2E Data Protection, and other technologies can ensure efficient data operations, extend service life, and help gamers ensure information security, optimal performance, and stable transmissions.
Five-year Warranty for Maximum Protection
The M.2 PCIe4.0 SSD has undergone rigorous testing and T-FORCE is offering a five-year warranty for maximum protection.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| CARDEA Z440 TUF Gaming Alliance M.2 PCIe SSD | 1TB | up to 5,000 MB/s | up to 4,400 MB/s | 1800TBW | YES | TM8FPC001T0C128 | ADD |
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
1TB Read/Write: 750K/750K IOPS Max
Weight
48g
Dimensions
80.0(L) x 23.0(W) x 19(H) mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1500G/0.5ms
MTBF
1,700,000 Hours
Operating System
System Requirements:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
04.Jan.2022
