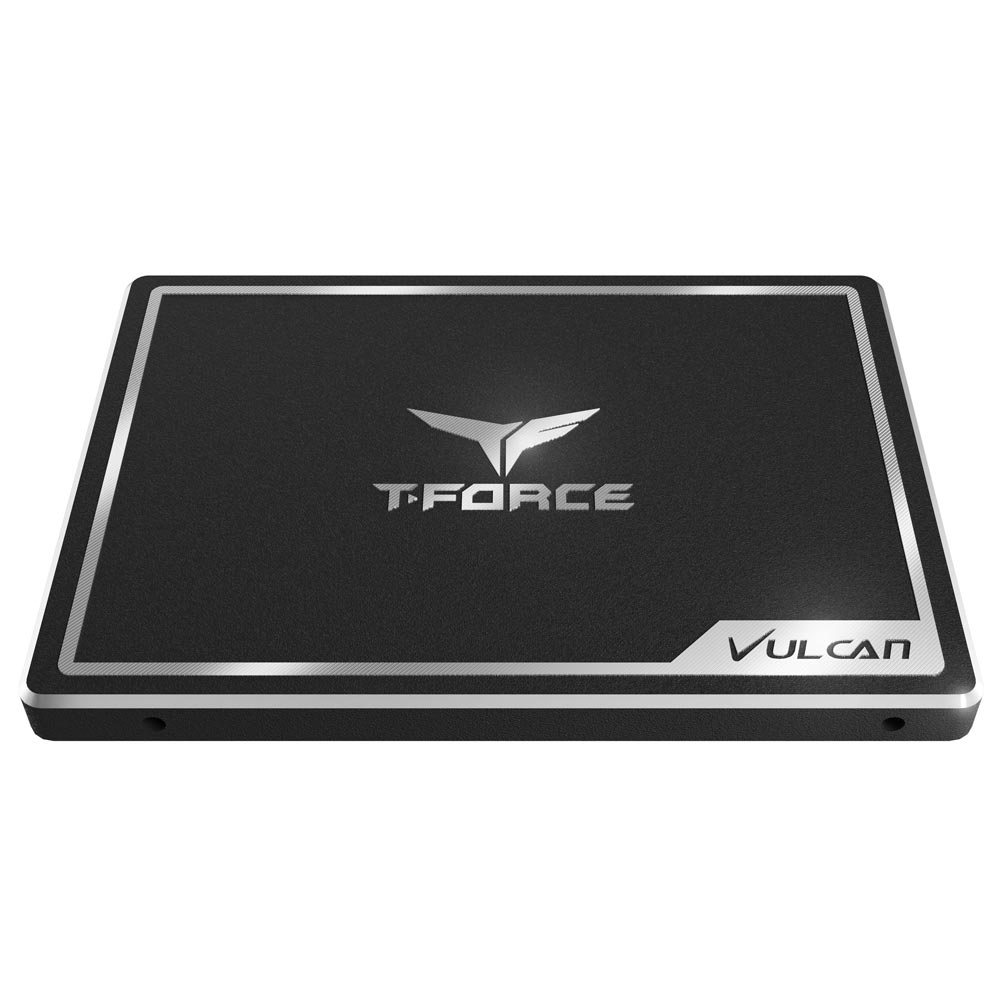

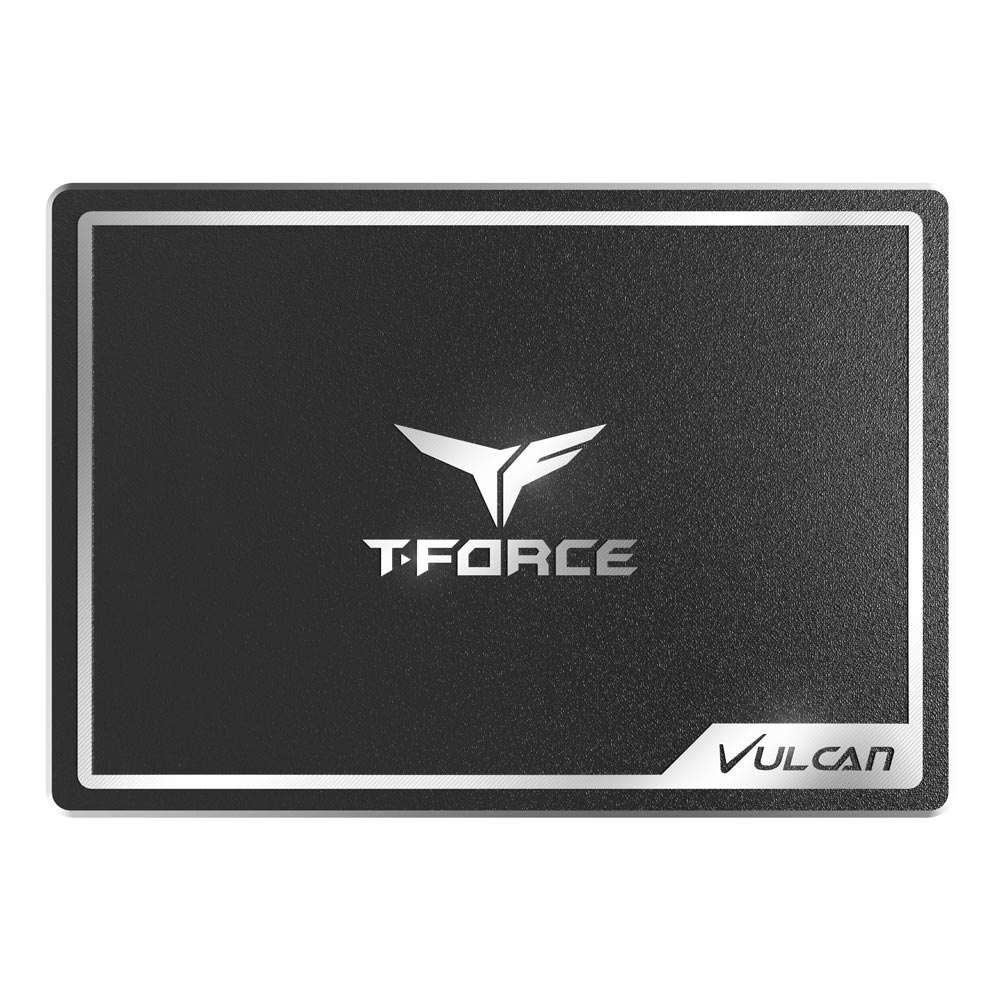

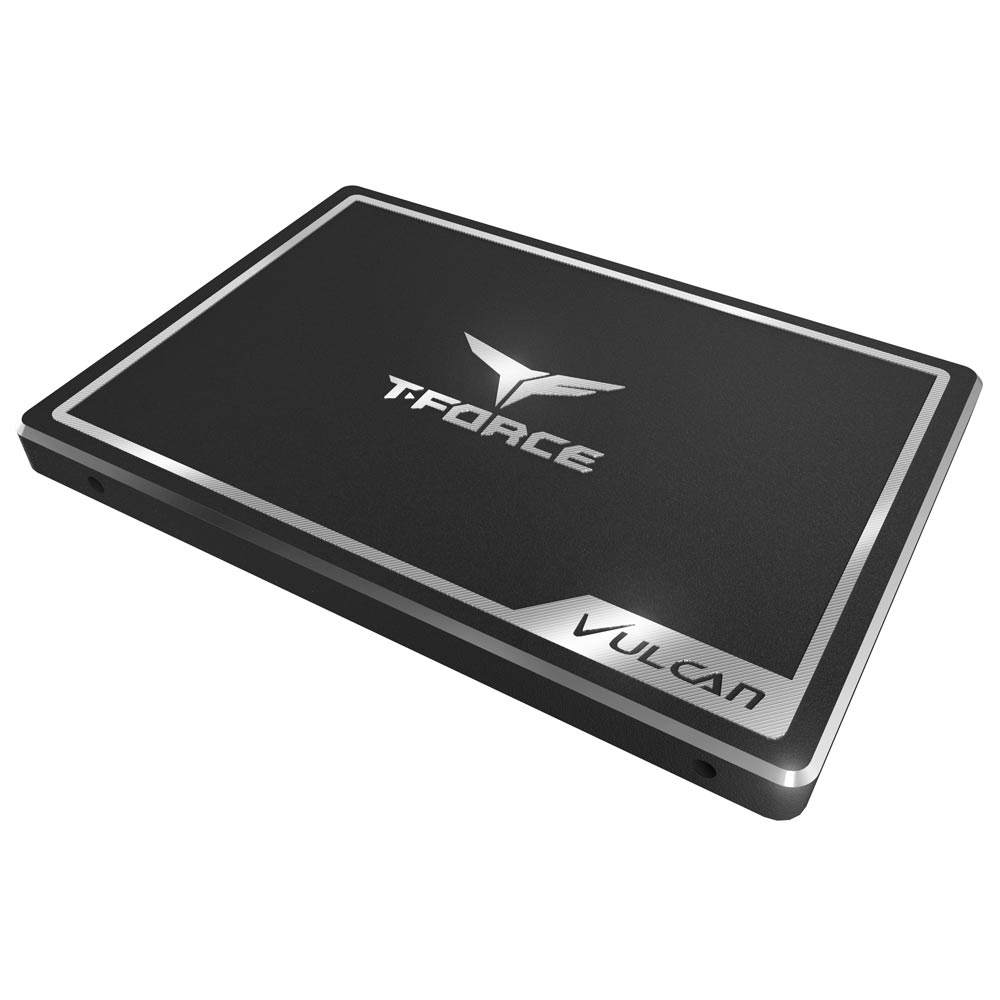

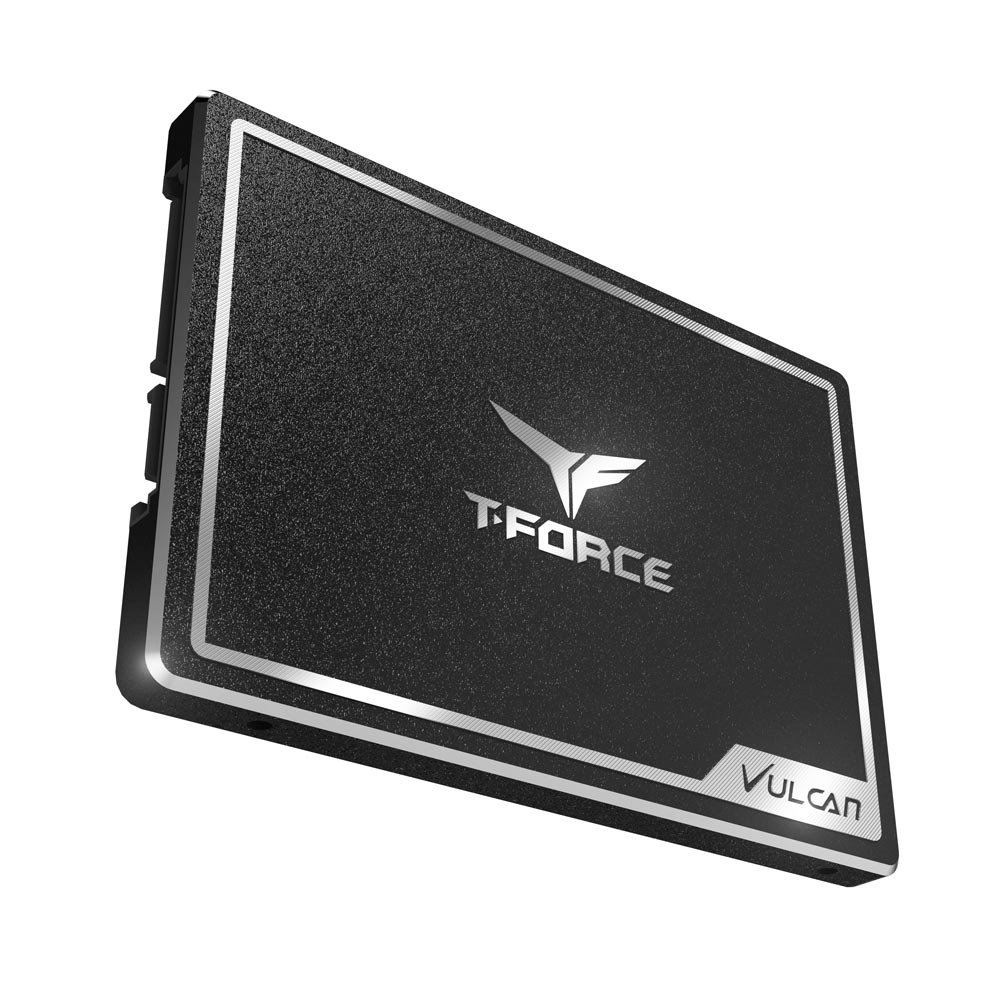

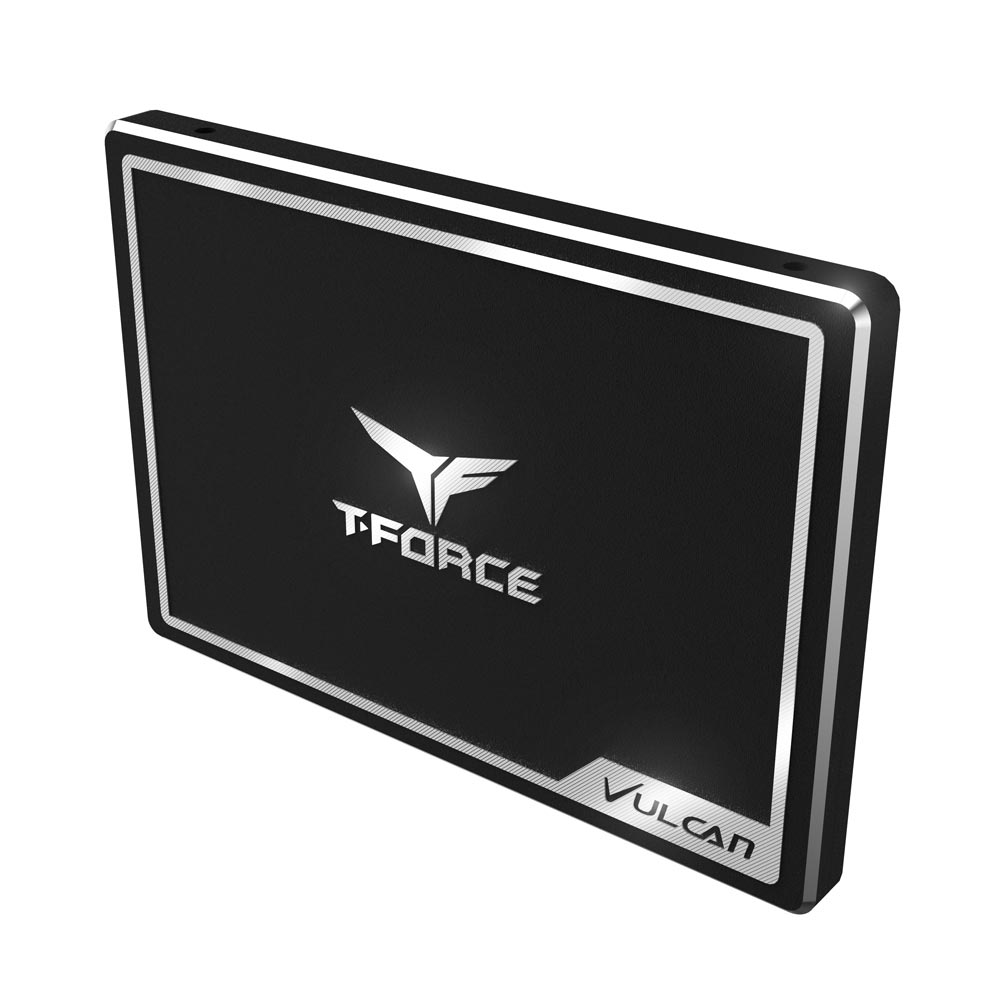

VULCAN SSD
Feature
- 3D NAND technology–the capacity has been expanded more than ever, which is capable of storing more games and data.
- High speed transfer: the excellent experience in terms of booting, data adding, and gaming reaction requirement bring all incredible read write speed.
- Extremely lightweight and thin. 2.5-inch drive with 7mm in height
- Support S.M.A.R.T. technology – monitoring hard drive status efficiently.
- Support TRIM – bring out its best performance on the compatible operating system.
- Product warranty – three years product warranty with free technical support service
Introduction
High speed transfer with full capacity
Up to maximum 1TB capacity of solid state drive is available for gamers to choose from. Equipped with DRAM Cache and can reach over 560MB/s read/write speed for the ultimate gaming experience!
Extremely thin and detail focused
With only 7mm in thickness, the simple and exquisite aluminum alloy case creates the perfect texture. Whether it is for gaming laptop or gaming desktop, the upgrade can be done fast and effortlessly.
3D NAND technology. Tough protection
Using 3D NAND flash memory chip to overall improve the capacity, durability, shockproof offers comprehensive solid protection for the data.
It supports Windows TRIM optimization command which is able to release free blocks, allowing the operating system to use them immediately when writing data.
It supports Windows TRIM optimization command which is able to release free blocks, allowing the operating system to use them immediately when writing data.
Optimized performance for long term operation
The optimized access control technology of NCQ can speed up the transfer and write performance, prolonging the service life of the SSD perfectly.
Error correction mechanism. Durable and reliable
The built-in smart algorithm management mechanism has functions such as garbage collection, Wear-Leveling technology and ECC (Error Correction Code) to ensure the correctness and security of data transfer.
SSD exclusive monitoring software
More Product Specifications
Interface
SATA III 6Gb/s
Voltage
DC +5V
Operation Temperature
0˚C ~ 70˚C
IOPS
500GB 4K Random Read/Write: 90K/80K IOPS Max
1TB 4K Random Read/Write: 90K/80K IOPS Max
1TB 4K Random Read/Write: 90K/80K IOPS Max
Dimensions
100(L) x 69.9(W) x 7(H)mm
Humidity
0°C to 55°C / 5% ~ 95% RH,non-condensing
Vibration
20G (non-operating)
Shock
1500G/0.5ms
MTBF
1,000,000 Hours
Operating System
- Windows 11 / 10 / 8.1 / 8 / 7
- MAC OS 10.4 or later
- Linux 2.6.33 or later
Warranty
3-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
