SATA III 6Gb/s
RGB Signal: USB Micro B type

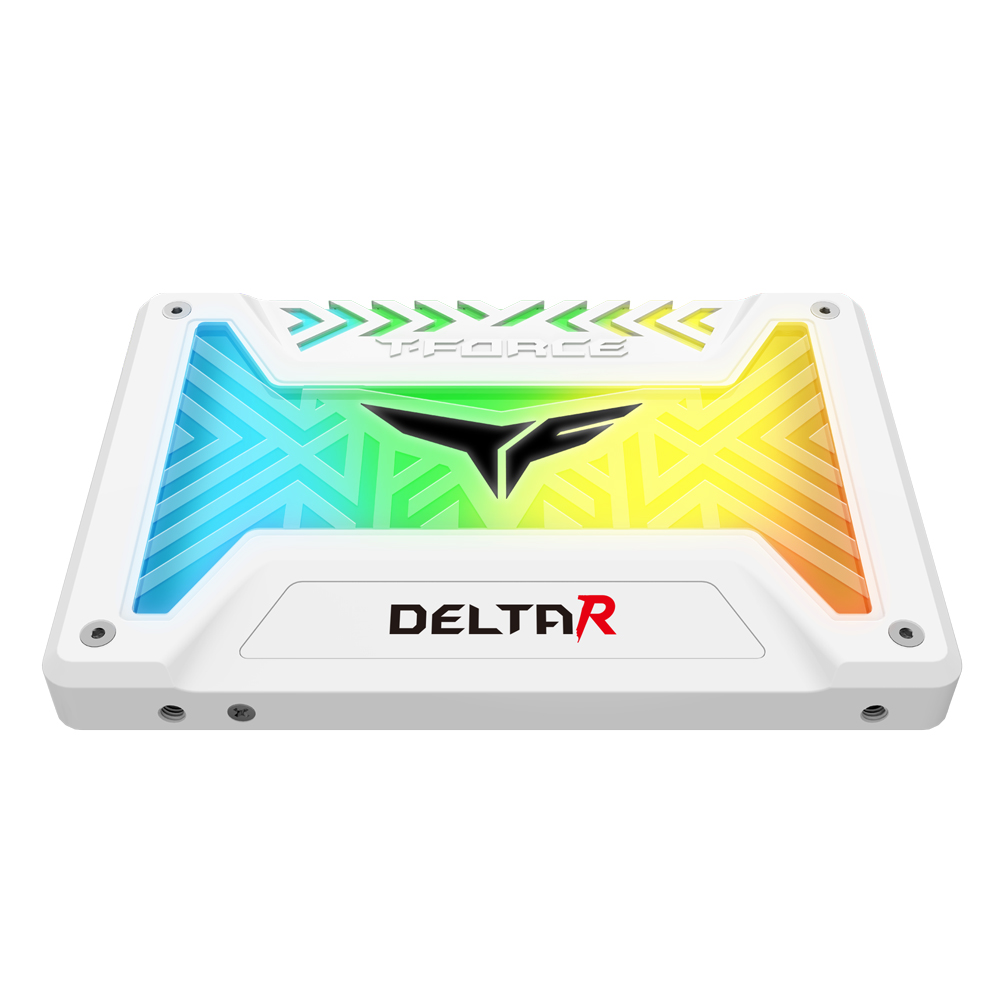

DELTA R RGB SSD (Rainbow/USB 9pin) WHITE
Feature
- Largest luminous RGB area with the ratio of 5:3
- Built-in water flowing lighting with RAINBOW mixed color effect (Can't be controlled or synchronized by other software)
- Suitable for motherboards with USB 9PIN headers
- Read/write speed up to 560 MB/s. 4 times faster than traditional HDD
- 2.5-inch hard drive with 9.5mm in height
- Support S.M.A.R.T. technology
- Support TRIM
- Three years product warranty with free technical support service.
- Chinese Utility PATENT (number: CN 207676655 U)
Introduction
Colorful visual feast
With 5:3 high ratio luminous area and the 16.8 million color LED, it brings a new colorful design to the boring solid state drive. Light up your storage device and make your computer more outstanding than other gamers.
RAINBOW lighting effect
All it takes is to connect the USB 9PIN header of the motherboard, then you are able to enjoy the fun of RAINBOW lighting effect immediately and possess the unique RGB high-speed solid state drive.
Compact, stylish and outstanding performance
With industry-standard 2.5” form factor and only 9.5mm in thickness, computer upgrade can be done effortlessly. Equipped with DRAM Cache to push read/write speeds to over 560MB/s. SSD capacities are available in 250GB, 500GB, 1TB, etc. for gamers to choose from.
Tough protection
Using 3D NAND flash memory chip to overall improve the capacity, durability, shockproof offers comprehensive solid protection for the data.
Durable and reliable
The built-in smart algorithm management mechanism has functions such as garbage collection, Wear-Leveling technology and ECC (Error Correction Code) to ensure the correctness and security of data transfer.
re operation efficiency. The powerful Wear-Leveling technology and ECC (Error CORRECTION CODE) function enhance the reliability of data transfer. It supports Windows TRIM optimization command which is able to release free blocks, allowing operating system to use them immediately when writing data. The optimized access control technology of NCQ can speed up the transfer and write performance of the SSD, and effectively reduces performance degradation and wear and tear of the drive. This can prolong the service life of the SSD perfectly.
re operation efficiency. The powerful Wear-Leveling technology and ECC (Error CORRECTION CODE) function enhance the reliability of data transfer. It supports Windows TRIM optimization command which is able to release free blocks, allowing operating system to use them immediately when writing data. The optimized access control technology of NCQ can speed up the transfer and write performance of the SSD, and effectively reduces performance degradation and wear and tear of the drive. This can prolong the service life of the SSD perfectly.

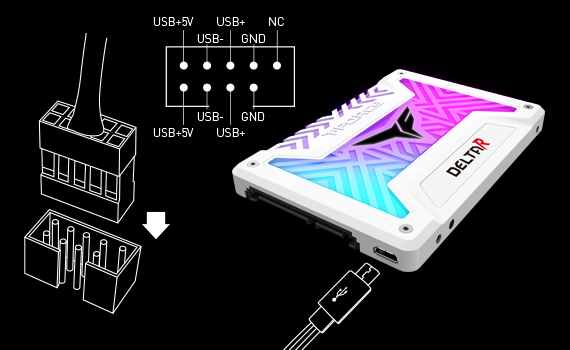

T-FORCE DELTA R RGB SSD (RAINBOW) USB 9PIN header
It's suitable for the majority of the motherboards with USB 9PIN headers (as shown). Upgrade is easy. Just connect motherboard's USB 9PIN header and your PC is ready to perform better than ever.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| DELTA R RGB SSD (Rainbow/USB 9pin)-WHITE | 1TB | up to 560 MB/s | up to 510 MB/s | 800TBW | YES | T253TR001T3C415 | ADD |
| DELTA R RGB SSD (Rainbow/USB 9pin)-WHITE | 500GB | up to 560 MB/s | up to 510 MB/s | 400TBW | YES | T253TR500G3C415 | ADD |
More Product Specifications
Interface
Voltage
DC +5V
Operation Temperature
0˚C ~ 70˚C
IOPS
500GB 4K Random Read/Write: 90K/80K IOPS Max
1TB 4K Random Read/Write: 90K/80K IOPS Max
1TB 4K Random Read/Write: 90K/80K IOPS Max
Weight
78g

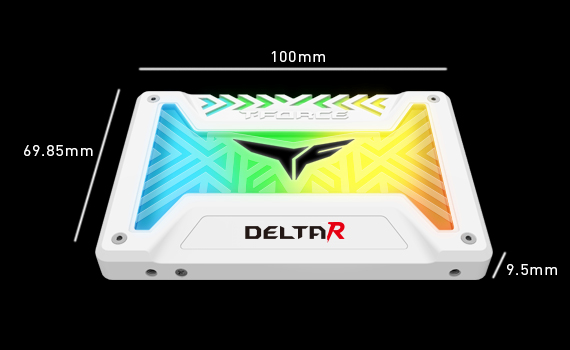

Dimensions
100(L) x 69.85(W) x 9.5(H)mm
Humidity
0°C ~ 55°C / 5% ~ 95% RH,non-condensing
Vibration
20G (non-operating)
Shock
1500G
MTBF
1,000,000 Hours
Operating System
- Windows 10 / 8.1 / 8 / 7
- MAC OS 10.4 or later
- Linux 2.6.33 or later
Warranty
3-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- Note that it is not possible to connect to the 12V RGB Header, which will cause damage to the product and will lose the warranty.
- DELTA R RGB SSD (RAINBOW) currently has built-in water flowing lighting with RAINBOW mixed color effect. It can't be controlled or synchronized by other software.
The light effects depend entirely on the signal coming from the motherboard. The light effects will vary depending on the signal provided by the different motherboards. - Please make sure your motherboard has USB 9PIN header before purchasing DELTA R RGB SSD (RAINBOW). The warranty will void if DELTA R RGB SSD (RAINBOW) is damaged due to connecting with other headers (improper use).

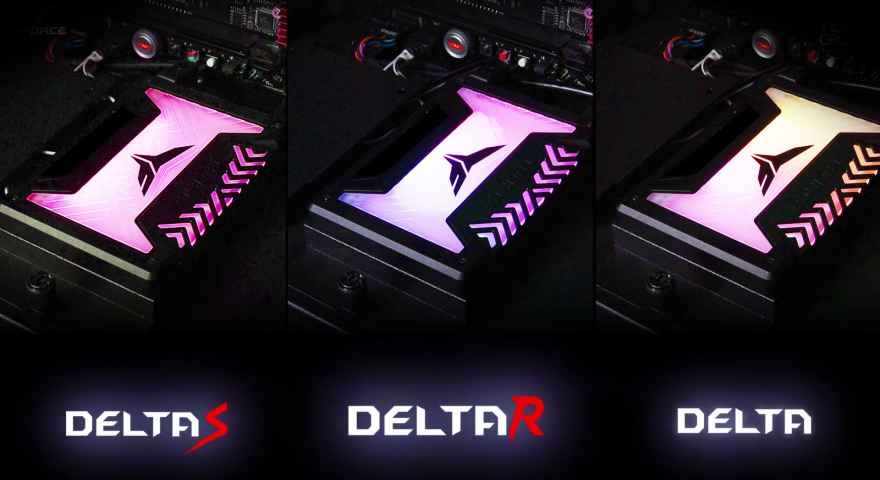

- T-FORCE DELTA RGB SSD is available in three versions. We sincerely recommend you contact the local distributor or retailer to confirm the current product specifications and styles available.
- Due to different photo lighting or screen setting, the product image and the color of the package may vary from the actual product.
- Please make sure your motherboard has USB 9PIN header before purchasing DELTA R RGB SSD (RAINBOW). The warranty will void if DELTA R RGB SSD (RAINBOW) is damaged due to connecting with other headers (improper use).
