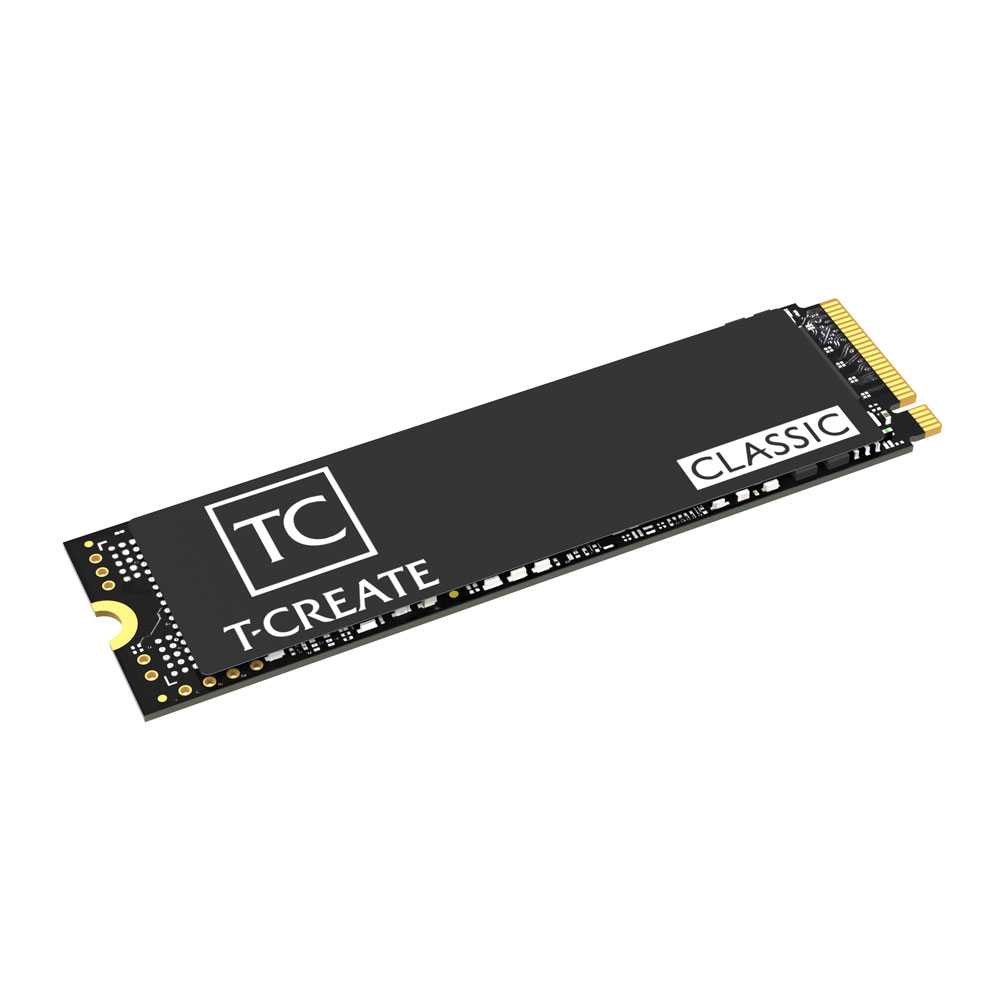

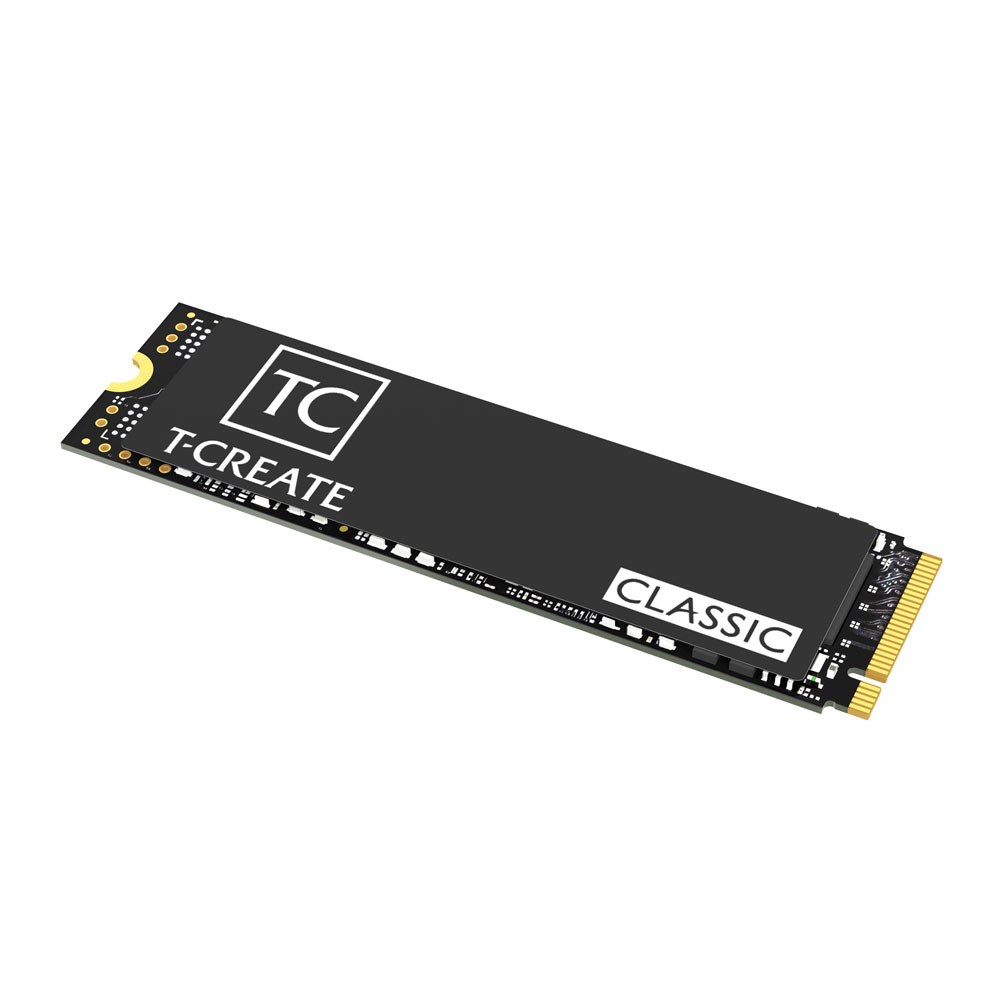

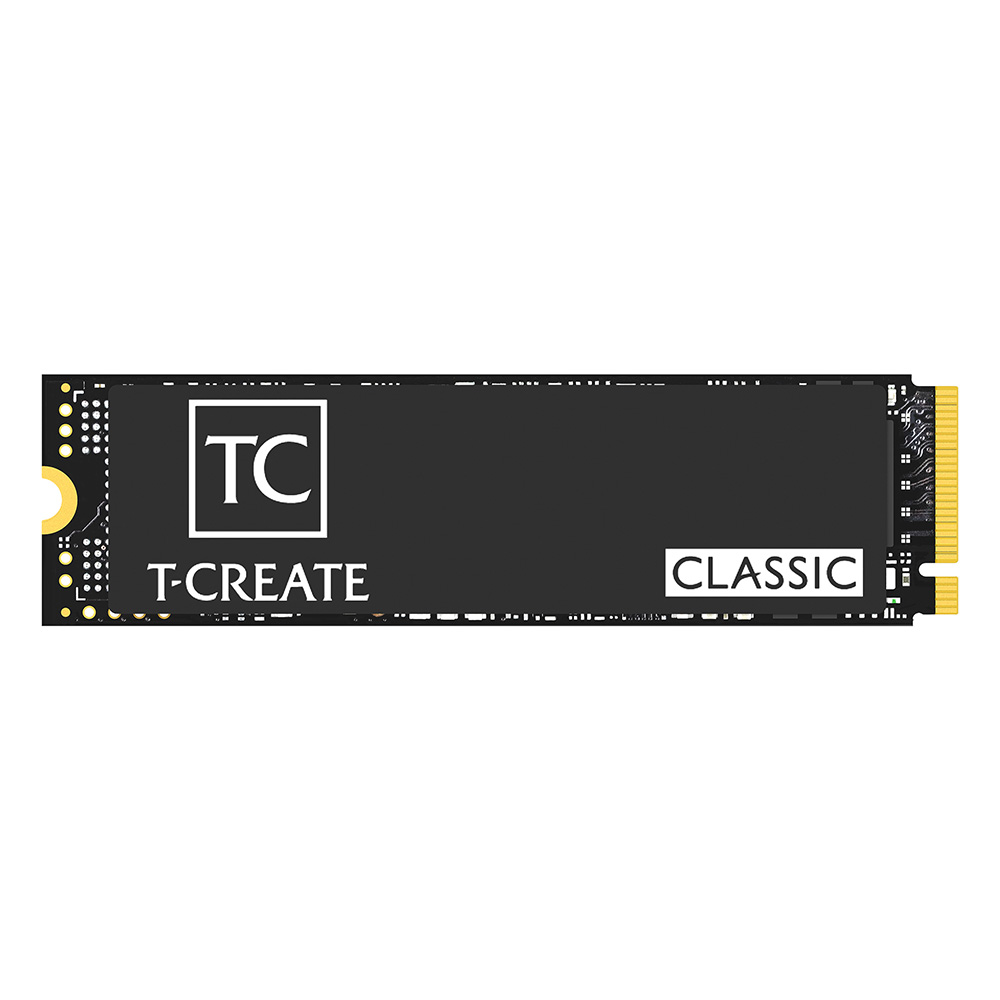

CLASSIC I45 PCIe 4.0 SSD
Feature
- Innovative Technology Ensures High Stability for Secure Storage of Precious Creativity
- Multiple Selections of Specification and Capacity for Creative Freedom
- Ultra-Thin Patented Graphene Heat Sink for Worry-Free Creating
- Excellent Data Intelligent Management and Error Correction Mechanism
- SSD Condition Monitoring Offers Safer Creating Process
- Eco-friendly and Sustainable to Conserve the Earth
- Patented Graphene Heat Sink
Invention patent number in the US: US11051392B2
Invention patent number in Taiwan: I703921
Utility model patent number in China: CN 211019739 U - Patented S.M.A.R.T. Software
Invention patent number in Taiwan: I751753
Introduction
Innovative Technology Ensures High Stability for Secure Storage of Precious Creativity
T-CREATE CLASSIC I4 Series PCIe 4.0 SSD utilizes InnoGrit controller chips and supports SLC Caching technology. Paired with high-stability controllers and firmware solutions, T-CREATE ensures that creators' precious works can be securely stored.
Multiple Selections of Specification and Capacity for Creative Freedom
T-CREATE CLASSIC I4 Series PCIe 4.0 SSD comes in two models: I45 and I47, with maximum read speeds of 5,000 MB/s and 7,400 MB/s, respectively. It offers maximum storage capacities of 2 TB and 4 TB. Users can choose speed and storage capacity according to their needs, meeting various requirements for creative endeavors.
Ultra-Thin Patented Graphene Heat Sink for Worry-Free Creating
The exclusive patented ultra-thin graphene heat dissipation solution effectively addresses high temperatures generated during high-speed read and write operations, ensuring stable system operation.
Excellent Data Intelligent Management and Error Correction Mechanism
Supporting intelligent algorithm and advanced LDPC (Low Density Parity Check) error correction mechanism, the product effectively enhances data operation efficiency and accuracy, ensuring the stability and integrity of file transmission.
SSD condition monitoring offers safer creating process
Offers TEAMGROUP’s exclusive patented intelligent SSD monitoring software, S.M.A.R.T, which monitors product status at all times. It also monitors product quality and performance effortlessly through fast and easy setting and inspection to allow for a safer creating process.
Eco-friendly and sustainable to conserve the Earth
The entire production is lead-free and halogen-free, RoHS-compliant, and adopts recyclable environmentally friendly materials for packaging to conserve Earth by being eco-friendly and sustainable.
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
Weight
7g
Dimensions
80.0(L) x 22.0(W) x 3.7(H) mm
Vibration
80Hz~2,000Hz/20G
Shock
1,500G/0.5ms
MTBF
3,000,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the foll owing operating systems:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- MAC OS 10.4 or later
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference. We reserve the right to modify product specifications without prior notice.
- The warranty is based on TBW or Warranty period whichever happened first.
