Home Product SSD T-CREATE CLASSIC PCIe 4.0 DL SSD 2TB

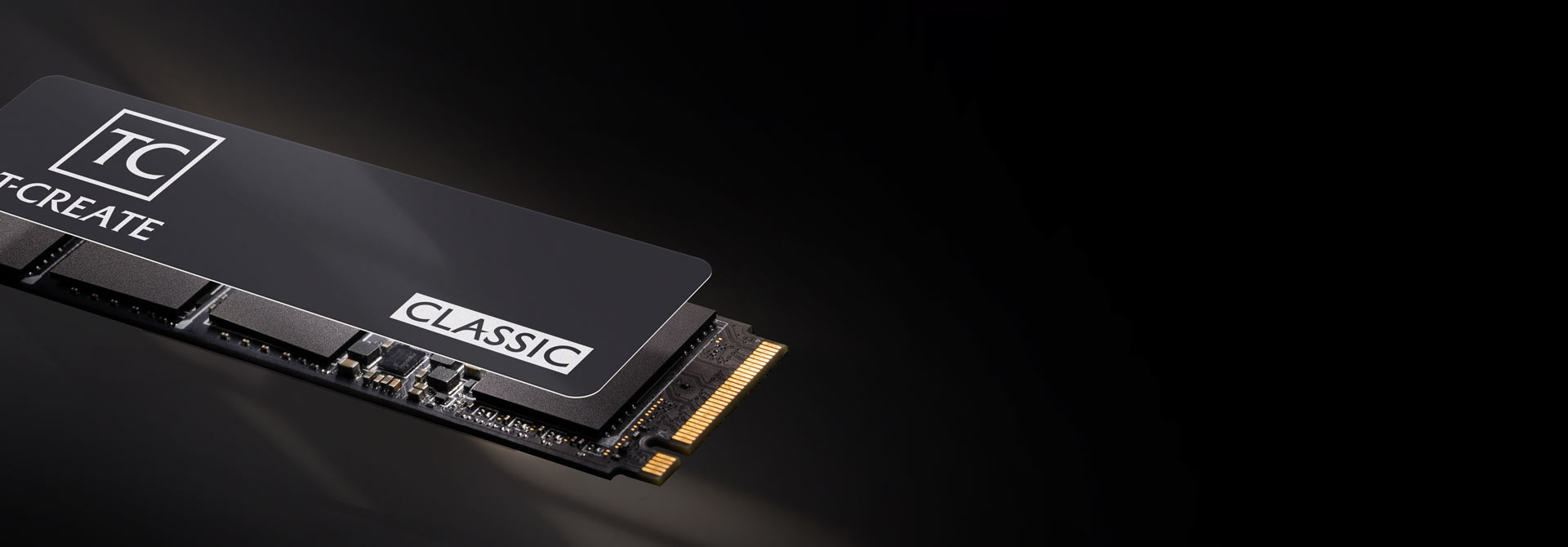

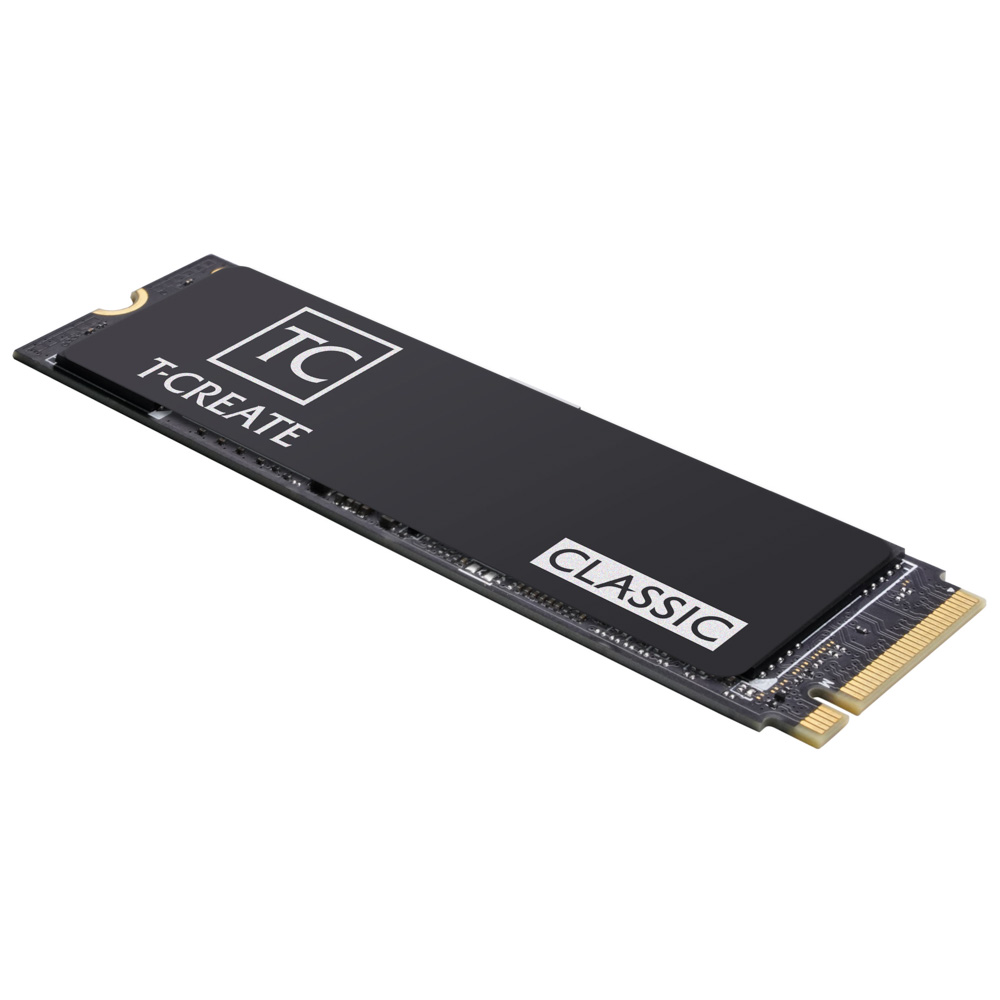

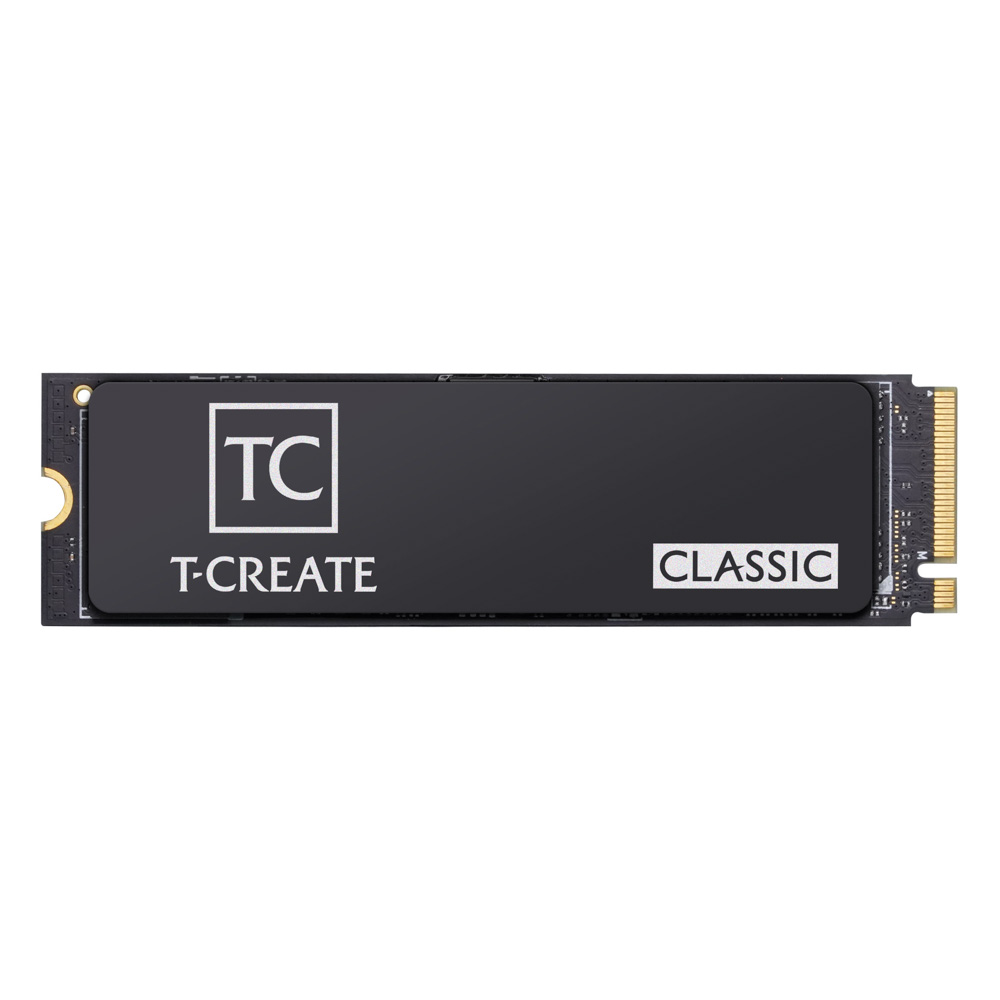

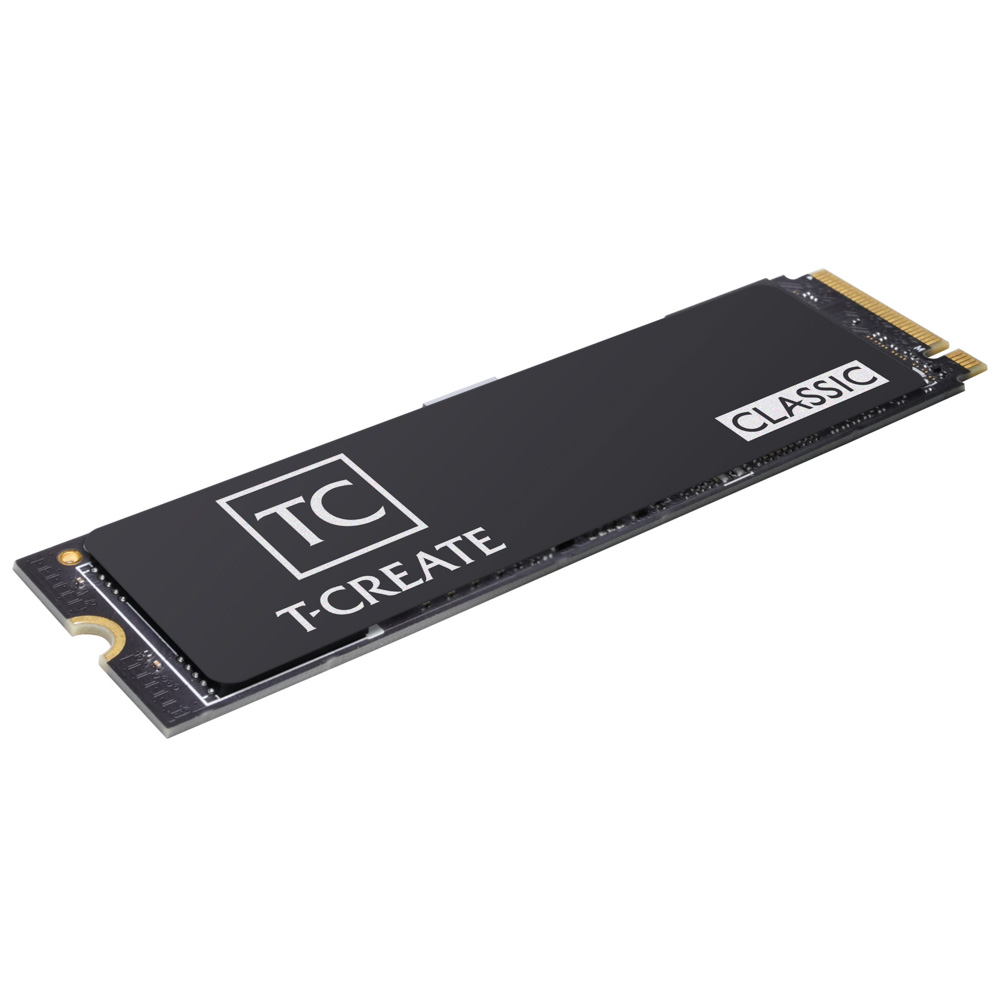

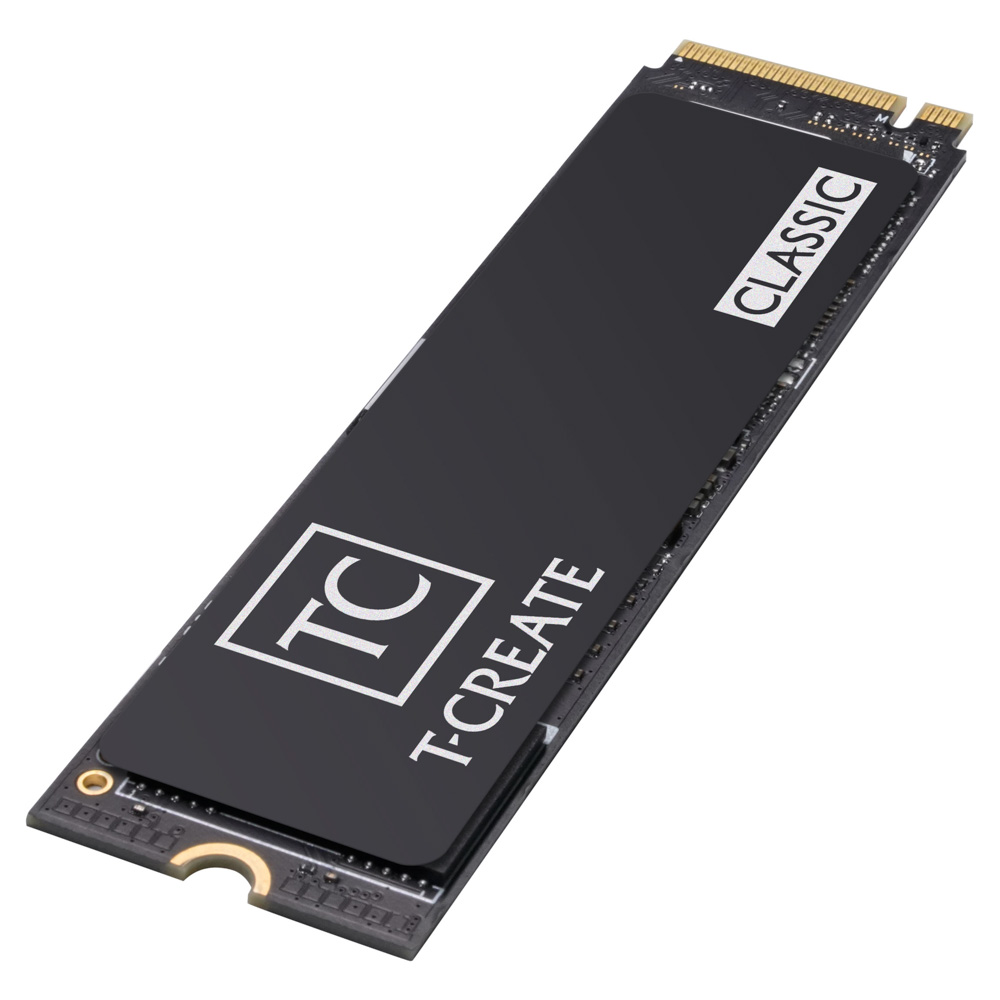

CLASSIC PCIe 4.0 DL SSD

Feature

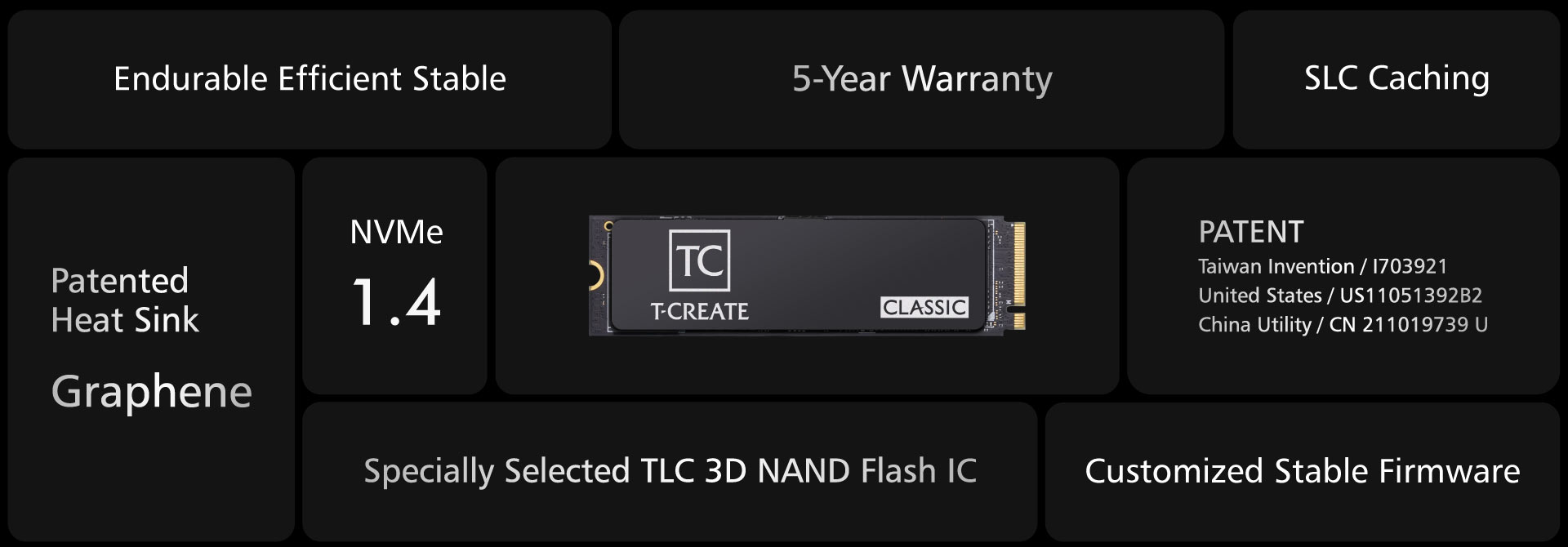

  • Transformative access experience with zero waste of time
  • Ultra-thin patented heat dissipating graphene for worry-free creating process
  • Customized stable firmware for secure storage
  • Rigorously selected flash IC to unleash creativity
  • 5-year warranty for reassurance
  • U.S. invention patent (certificate number: US11051392B2)
  • Taiwan invention patent (certificate number: I703921)
  • Utility model patent in China (certificate number: CN 211019739 U)
5-year limited warranty
LDPC
Graphene Heat Dissipation Solution
Garbage Collection
E2E Data Protection
Transformative access experience with zero waste of time

Transformative access experience with zero waste of time

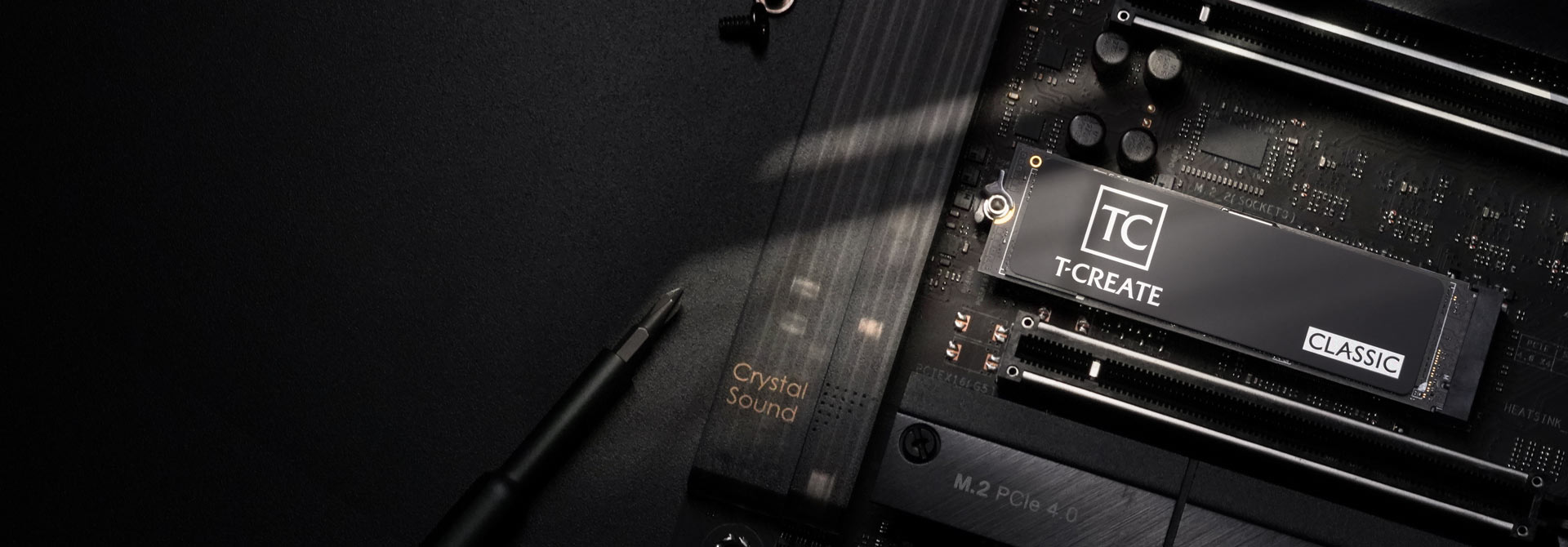

T-CREATE CLASSIC PCIe 4.0 DL SSD adopts PCIe Gen4x4 interface and NVMe 1.4 specifications. It boasts high reading and writing speeds of 7,400MB/s and 6,400MB/s, delivering a faster and smoother streaming experience. The processing time for converting files is significantly reduced to ensure minimum waste of time for creators.
Ultra-thin patented heat dissipating graphene for worry-free creating process

Ultra-thin patented heat dissipating graphene for worry-free creating process

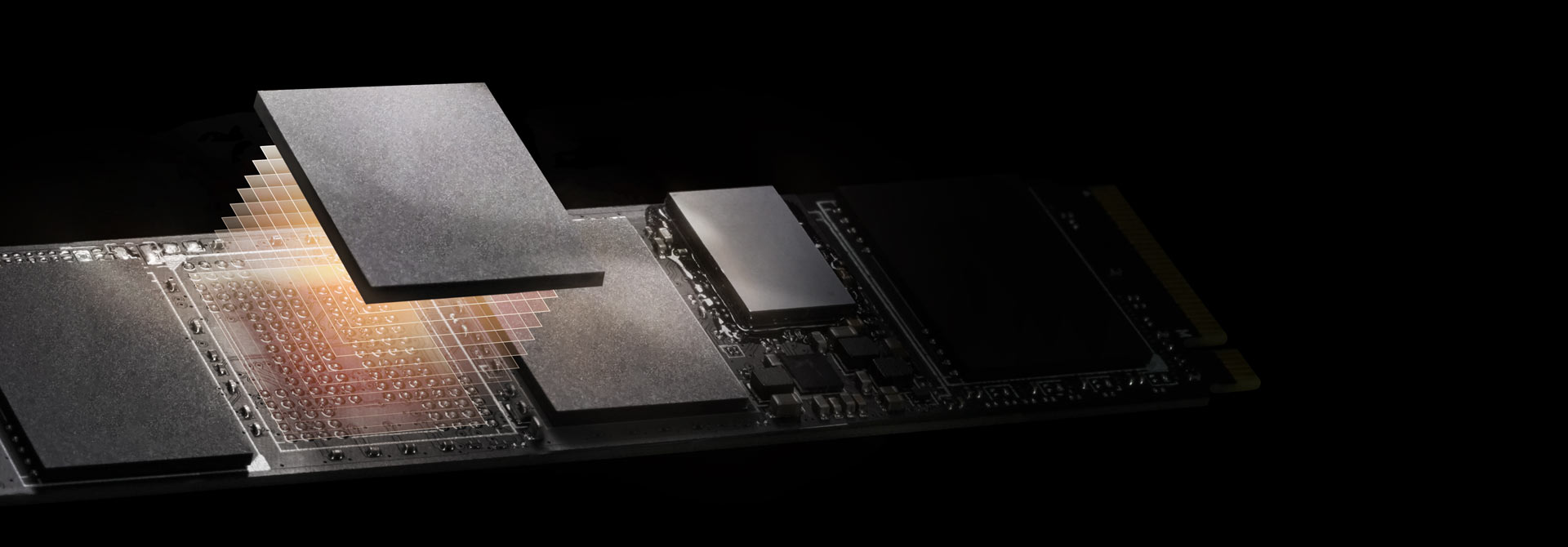

The ultra-thin patented heat dissipating graphene effectively solves the heat problem resulted from high performance. It enables stable system operation and a worry-free experience for creators working long hours.
Customized stable firmware for secure storage

Customized stable firmware for secure storage

T-CREATE CLASSIC PCIe 4.0 DL SSD supports SLC Caching and uses an exceptionally stable controller with customized stable firmware to create the superb high-stability SSD, offering creators assuredly storing precious works.
Rigorously selected flash IC to unleash creativity

Rigorously selected flash IC to unleash creativity

The specially selected TLC 3D NAND Flash IC is tested through rigorous procedures. It provides exceptional operation and storage solutions to the system, creating a reign for creators to unleash creativity.
5-year warranty for reassurance

5-year warranty for reassurance

T-CREATE CLASSIC PCIe 4.0 DL SSD offers a five-year warranty along with convenient after-sales services. Creators need not worry about warranty at all.
06
Model Capacity Sequential Read Sequential Write Terabyte Written DRAM Cache TEAM P/N Compare
CLASSIC PCIe 4.0 DL SSD 2TB up to 7,400 MB/s up to 6,400 MB/s 1200TBW NO TM8FPM002T0C329 ADD
CLASSIC PCIe 4.0 DL SSD 1TB up to 7,200 MB/s up to 6,200 MB/s 600TBW NO TM8FPM001T0C329 ADD
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
Weight
7g
Dimensions
80.0(L) x 22.0(W) x 3.7(H)mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1500G/0.5ms
MTBF
1,500,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the following operating systems:
  • Windows 11 / 10 / 8 / 7 / Vista
  • Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
  • 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
  • Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
  • Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
  • All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
  • M.2 SSD Installation Instructions
