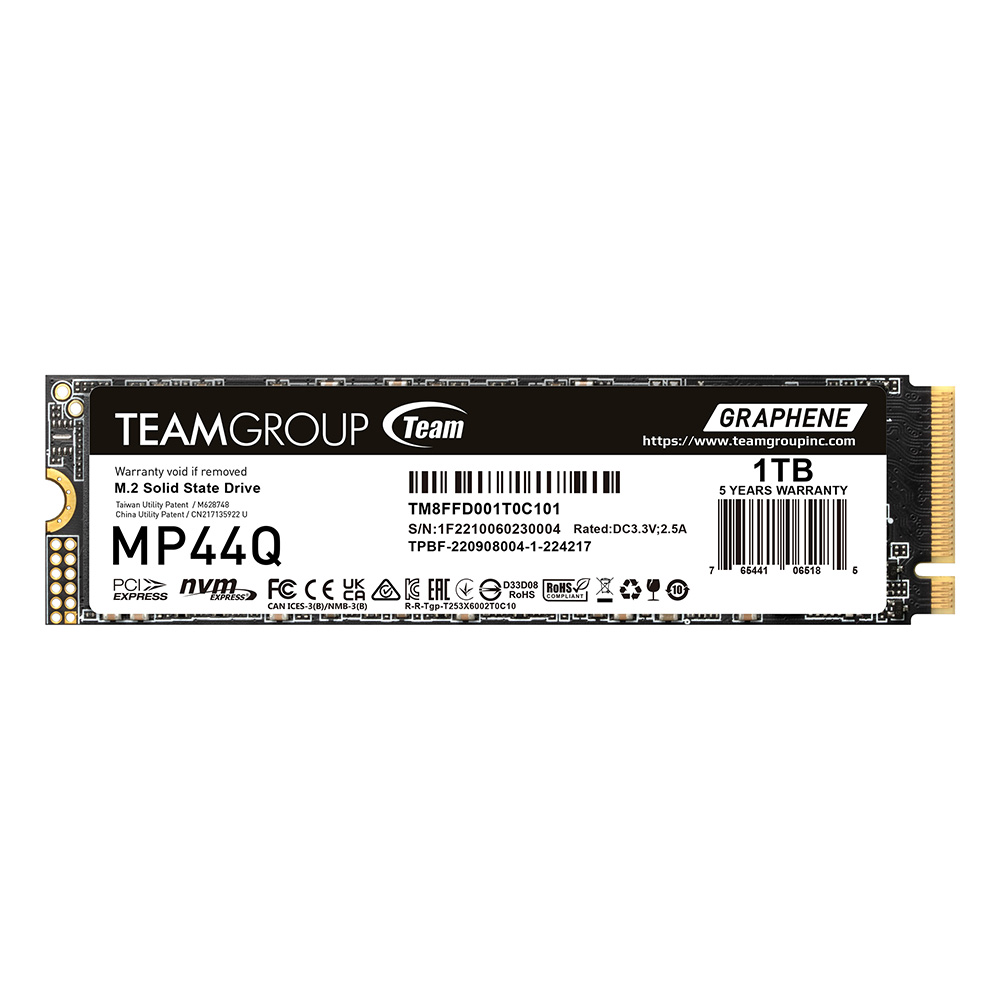

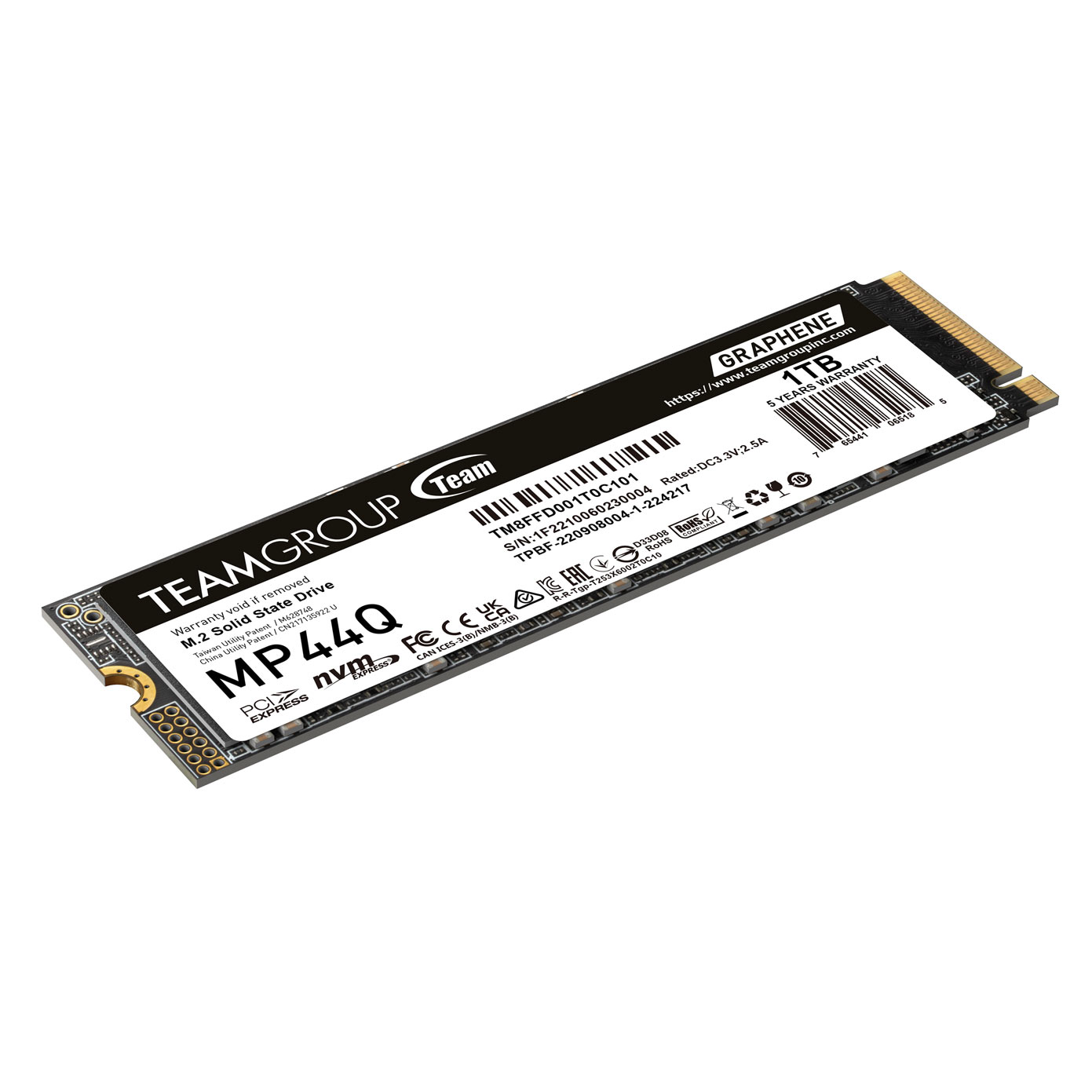

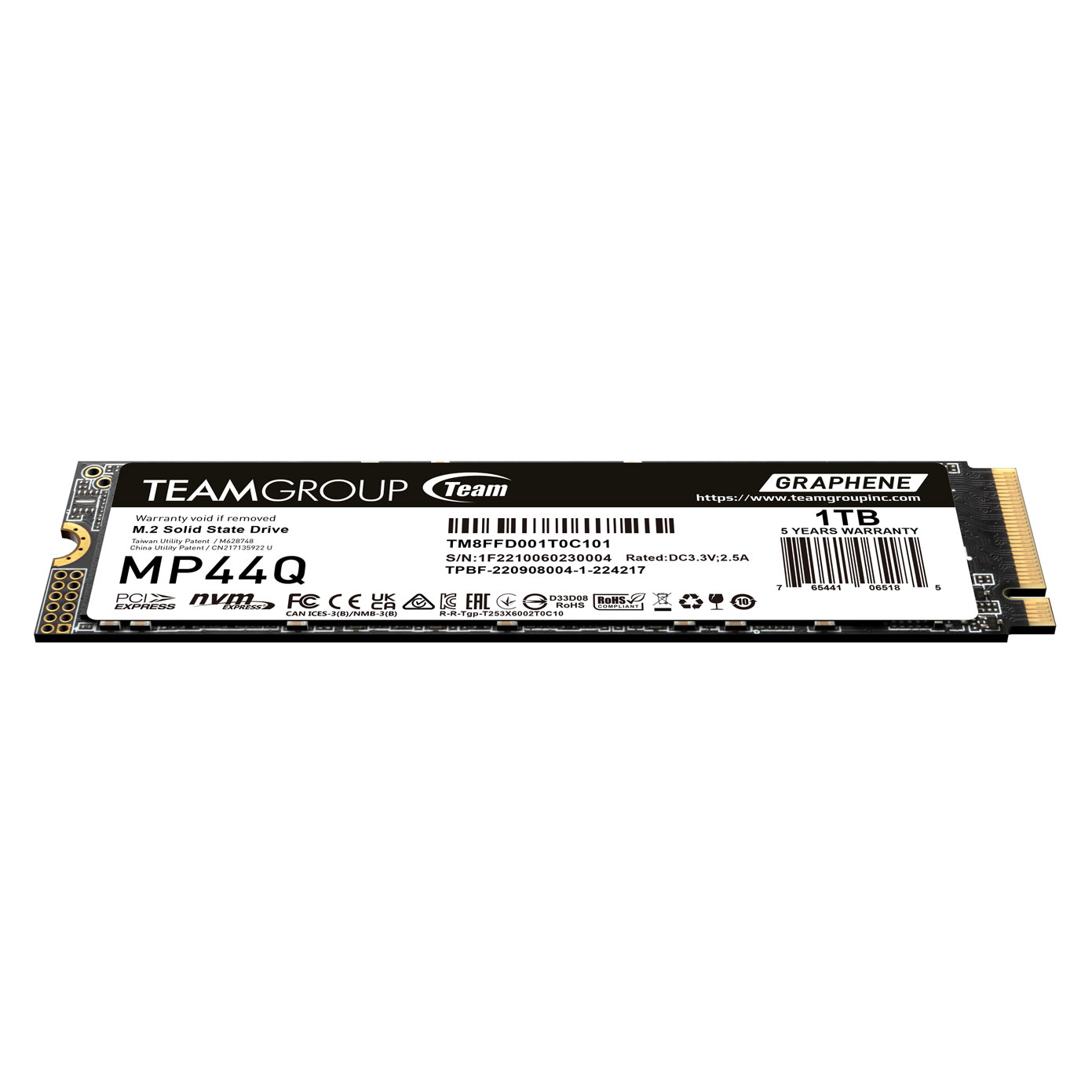

MP44Q M.2 PCIe 4.0 SSD
Feature
- Outstanding Performance Exceeding 7,000MB/s Transmission Speed
- Effortless Storage Expansion with 3D QLC NAND
- Exclusive Intelligent S.M.A.R.T. Monitoring Software
- Graphene Heat Dissipation Label
- Recyclable Packaging Materials
- Five-year Warranty
- Heat dissipating graphene label patents:
Taiwan utility patent (No.: M628748)
China utility patent (No.: CN 217135922 U) - Patented S.M.A.R.T. software
Taiwan invention patent (No.: I751753)
Introduction
Outstanding Performance Exceeding 7,000MB/s Transmission Speed
Featuring a PCIe Gen4 x4 interface and SLC Caching technology, the SSD delivers ultra-fast sequential read and write speeds of up to 7,400 MB/s and 6,500 MB/s respectively, facilitating high-speed file transfers and significantly boosting work efficiency.
Effortless Storage Expansion with 3D QLC NAND
The product adopts 3D QLC NAND, offering selections of capacity up to 4TB. It supports PCIe Gen4 x4 interface and NVMe specifications, ensuring high-speed data transmission while expanding and upgrading storage capacity to meet all document processing and storage needs.
Exclusive Intelligent S.M.A.R.T. Monitoring Software
Team Group Inc. has exclusively-patented SSD monitoring software S.M.A.R.T., which enables quick and easy setup and detection, making SSD quality and performance monitoring an effortless task.
Graphene Heat Dissipation Label
Incorporating Team Group Inc. exclusively-patented graphene heat dissipation label with a thickness less than 1mm, the SSD effectively eliminates any potential interference with assembly mechanisms. Together with the motherboard's native heat sink, the graphene dissipation label effectively addresses the heat generated by the SSD running in high speed.
Recyclable Packaging Materials
By using Recyclable packaging materials and obtaining environmental protection certifications such as RoHS, REACH, ESG, we contribute to realizing sustainable living.
Five-year Warranty
Users enjoy a 5-year warranty for the SSD. The product is subjected to rigorous quality control and inspection at every stage, ensuring excellent quality.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| MP44Q M.2 PCIe 4.0 SSD | 4TB | 7,400 MB/s | 6,500 MB/s | 2048TBW | NO | TM8FFD004T0C101 | ADD |
| MP44Q M.2 PCIe 4.0 SSD | 2TB | 7,400 MB/s | 6,500 MB/s | 1024TBW | NO | TM8FFD002T0C101 | ADD |
| MP44Q M.2 PCIe 4.0 SSD | 1TB | 7,400 MB/s | 6,200 MB/s | 512TBW | NO | TM8FFD001T0C101 | ADD |
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
Weight
7g
Dimensions
80.0(L) x 22.0(W) x 3.7(H)mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2,000Hz/20G
Shock
1,500G/0.5ms
MTBF
1,600,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the foll owing operating systems:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista or later
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written) are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference. We reserve the right to modify product specifications without prior notice.
