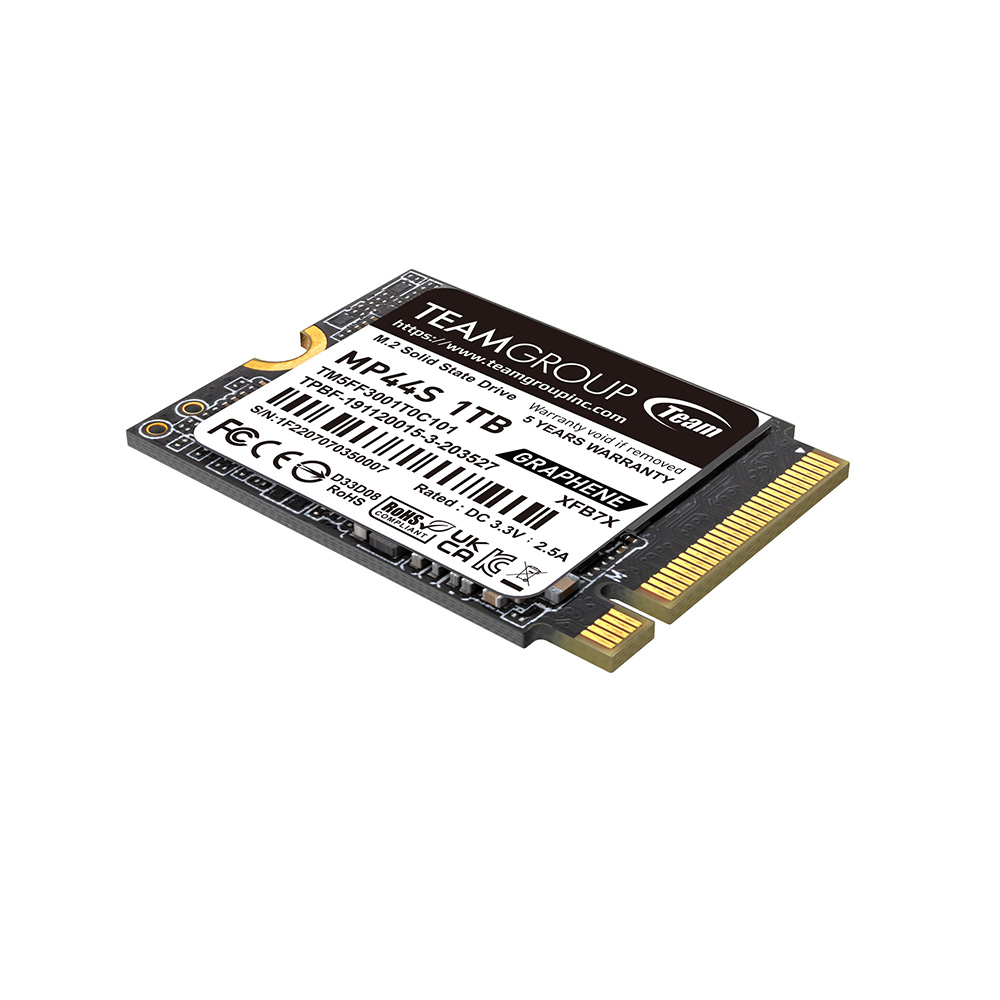

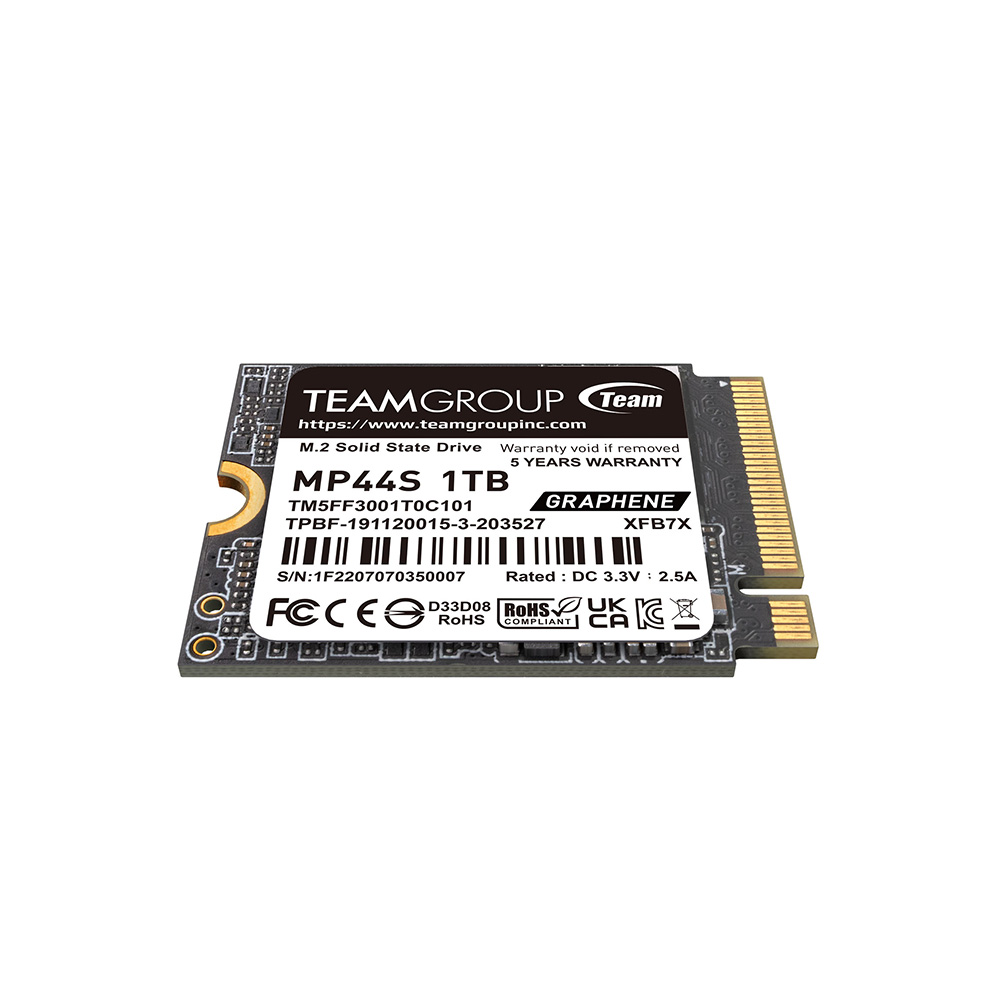

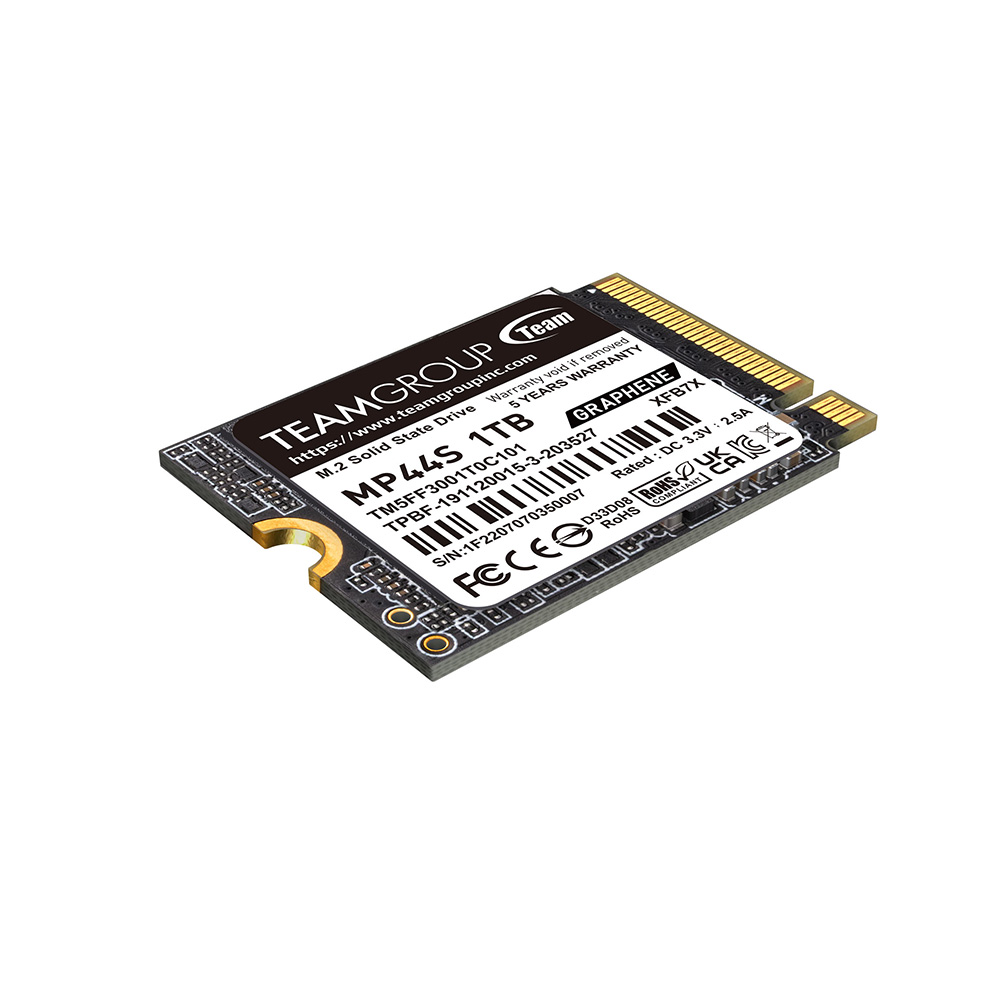

MP44S M.2 PCIe 4.0 SSD
Feature
- Top choice for STEAM Deck capacity upgrade
- Top choice for capacity upgrade on lightweight devices
- Heat dissipating graphene label for enhanced heat dissipation and system operating stability
- Small-size solution offering TB-grade massive capacity
- Gen4 read/write speed compatible with PCIe Gen3 interface
- Recyclable packaging contributing to sustainability endeavors
- TEAMGROUP’s exclusive patented S.M.A.R.T. monitoring software
- Five-year warranty for reassurance
- Heat dissipating graphene label patents
- Taiwan utility patent (No.: M628748)
- China utility patent (No.: CN 217135922 U)
- S.M.A.R.T. software patent
- Taiwan invention patent (No.: I751753)
Introduction
Top choice for capacity upgrade on lightweight devices
MP44S M.2 PCIe 4.0 SSD adopts the 22mm x 30mm size specification. It is perfectly compatible with products including STEAM Deck and ROG FLOW Z13. It is without a doubt the top choice for capacity upgrade on lightweight devices.
Heat dissipating graphene label for enhanced heat dissipation and system operating stability
MP44S M.2 PCIe 4.0 SSD adopts TEAMGROUP’s exclusive patented heat dissipating graphene label which enhances heat dissipation performance and enables better system operating stability. Less than 1mm thick, it perfectly eradicates any possible mechanical interference.
Small-size solution offering TB-grade massive capacity
It is less merely 3 cm in length with a maximum storage capacity of up to 2TB. Users can save games, high-resolution videos and pictures, and gargantuan data with ease.
Gen4 read/write speed compatible with PCIe Gen3 interface
MP44S M.2 PCIe 4.0 SSD adopts the PCIe Gen4x4 interface, featuring read/write speeds of up to 5,000 MB/s and 3,500MB/s. It is also backward compatible with PCIe Gen3 M.2 sockets.
Recyclable packaging contributing to sustainability endeavors
MP44S M.2 PCIe 4.0 SSD uses recyclable packaging and has passed environmental protection certifications including RoHS, REACH, and ESG standards, contributing to sustainability endeavors.
TEAMGROUP’s exclusive patented S.M.A.R.T. monitoring software
It is equipped with TEAMGROUP's exclusive patented S.M.A.R.T. monitoring software that monitors product status at all times. It also monitors product quality and performance through fast and easy setting and inspection.
Five-year warranty for reassurance
MP44S M.2 PCIe 4.0 SSD comes with a five-year warranty. It has been through rigorous testing and quality control to ensure fine quality for your reassurance.
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
Read up to 480K ; Write up to 500K IOPS Max
Weight
3g
Dimensions
30(L) x 22(W) x 3.7(H) mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1,500G/0.5ms
MTBF
1,500,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the following operating systems:
- Windows 11/ 10 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- M.2 SSD Installation Instructions
