MP44L M.2 PCIe 4.0 SSD
Feature
- Heat dissipating graphene SSD label.
- Supporting SLC Cache enhancing work efficiency drastically.
- Diversified optimization technology for stability, durability, and enhanced reliability.
- Supporting the latest NVMe standards.
- S.M.A.R.T. monitoring software.
- Trustworthy and reliable five-year warranty.
- Taiwan Utility Patent (number: M628748)
- China Utility Patent (number: CN 217135922 U)
Introduction

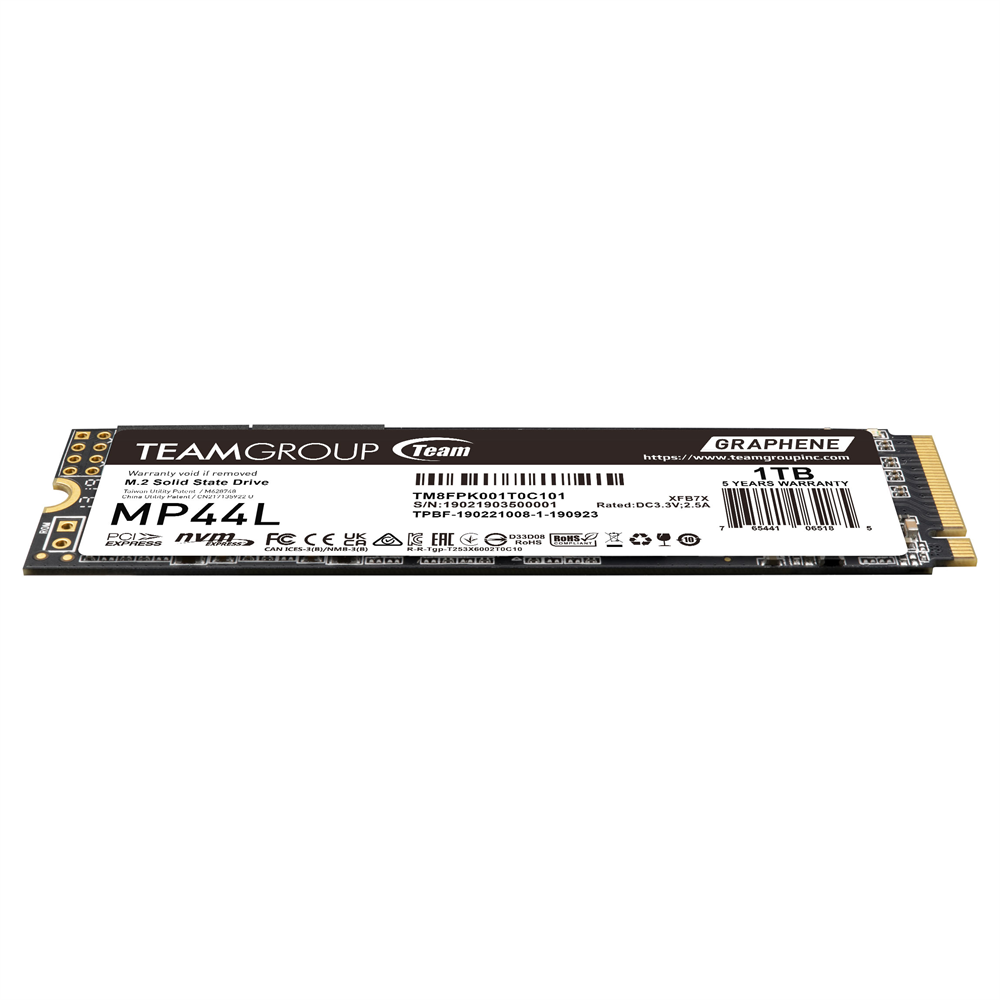

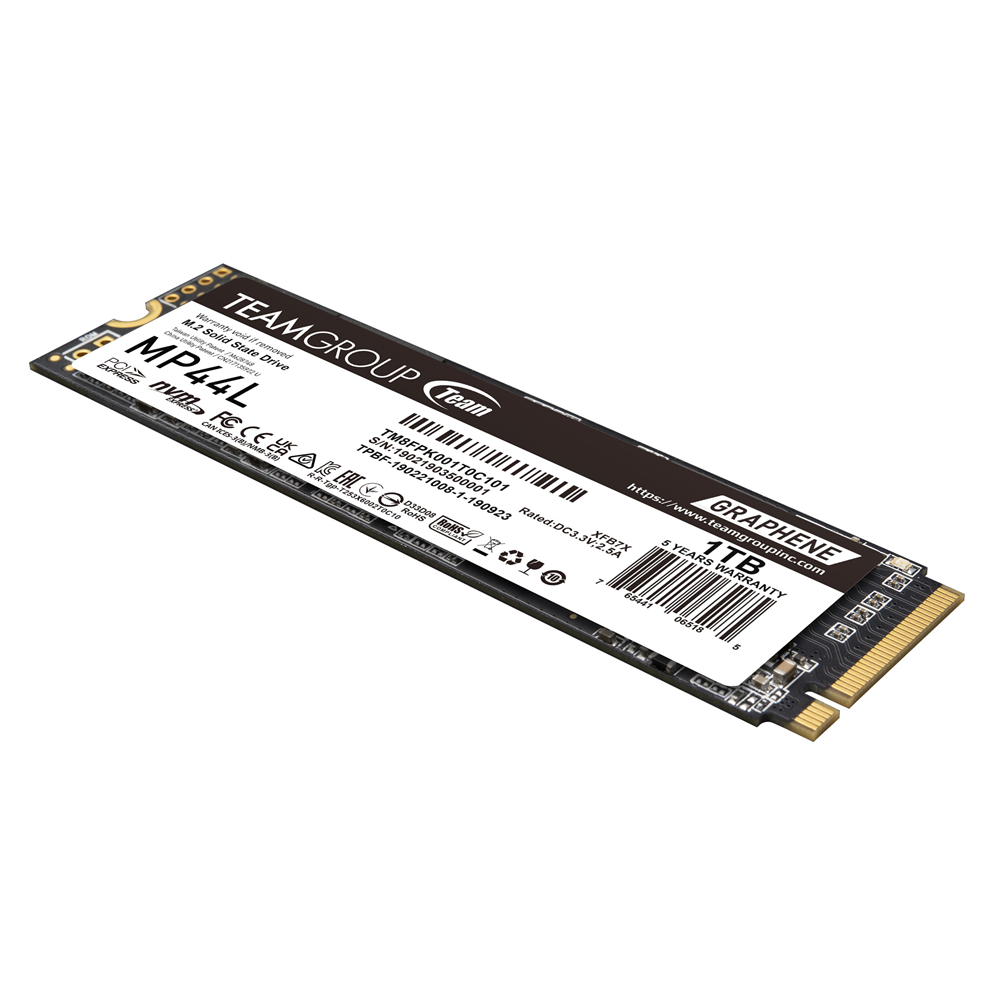

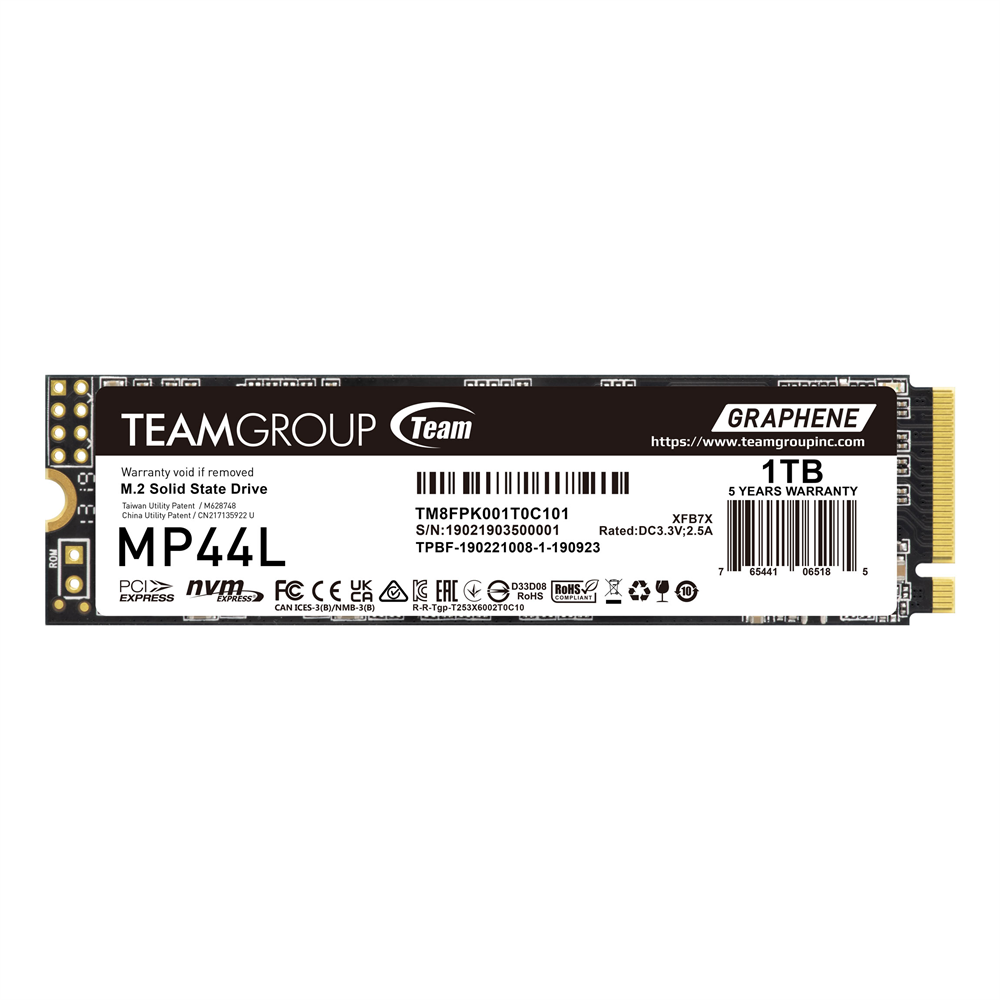

Heat dissipating graphene SSD label
MP44L M.2 PCIe SSD is the first product to introduce conductive graphene coating on aluminum foil to the SSD label. Less than 1mm thick, the new label design eradicates mechanical interference when assembling. Moreover, together with the onboard M.2 heat sink, the heat dissipating performance is doubled!
Supporting SLC Cache enhancing work efficiency drastically
MP44L M.2 PCIe SSD adopts the PCIe Gen4x4 interface and supports SLC Cache. It delivers read/write speeds of up to 5,000/4,500MB/s . Compared with the PCIe Gen3 interface, the performance is more than doubled,and drastically enhances work efficiency.
Diversified optimization technology for stability, durability, and better reliability
It supports Windows TRIM optimization option and Low Density Parity Check Code (LDPC) , reducing wearing on SSD during high-speed read/write duties. It also features precise error correction capability, enabling MP44L M.2 PCIe SSD to operate at high speed with stability, durability, and reliability.
Supporting the latest NVMe standards
MP44L M.2 PCIe SSD supports the latest NVMe standards. Through NVM Sets, predictable latency mode (PLM), and the latest read recovery level (RRL) technology, wearing and latency on SSDs is reduced, expanding lifespan effectively.
S.M.A.R.T. monitoring software
The S.M.A.R.T. monitoring software exclusively developed by TEAMGROUP monitors product status at all times. Through fast and easy setting and inspection, it monitors product quality and performance.
Trustworthy and reliable five-year warranty
MP44L M.2 PCIe SSD has been through rigorous testing and quality control procedures. It comes with a five-year warranty to ensure users of product quality.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| MP44L M.2 PCIe 4.0 SSD | 2TB | 4,800 MB/s | 4,400 MB/s | 1200TBW | NO | TM8FPK002T0C101 | ADD |
| MP44L M.2 PCIe 4.0 SSD | 1TB | 5,000 MB/s | 4,500 MB/s | 600TBW | NO | TM8FPK001T0C101 | ADD |
| MP44L M.2 PCIe 4.0 SSD | 500GB | 5,000 MB/s | 2,500 MB/s | 300TBW | NO | TM8FPK500G0C101 | ADD |
| MP44L M.2 PCIe 4.0 SSD | 250GB | 4,650 MB/s | 1,900 MB/s | 200TBW | NO | TM8FPK250G0C101 | ADD |
More Product Specifications
Interface
PCIe Gen4x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
250GB Read/Write：up to 220K / 470K IOPS Max
500GB Read/Write：up to 440K / 545K IOPS Max
1TB Read/Write：up to 525K / 550K IOPS Max
2TB Read/Write：up to 525K / 550K IOPS Max
500GB Read/Write：up to 440K / 545K IOPS Max
1TB Read/Write：up to 525K / 550K IOPS Max
2TB Read/Write：up to 525K / 550K IOPS Max
Weight
7g
Dimensions
80(L) x 22(W) x 2.25(H) mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1,500G/0.5ms
MTBF
1,500,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the following operating systems:
- Windows 11 / 10 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- M.2 SSD Installation Instructions
