MP34S M.2 PCIe SSD
Feature
- Master of SLC Caching
- Master magician of capacity
- Master of impeccable compatibility
- Master of environmental protection, guardian of Earth
- Master of intelligent health monitoring
- Master of after-sales services
Introduction

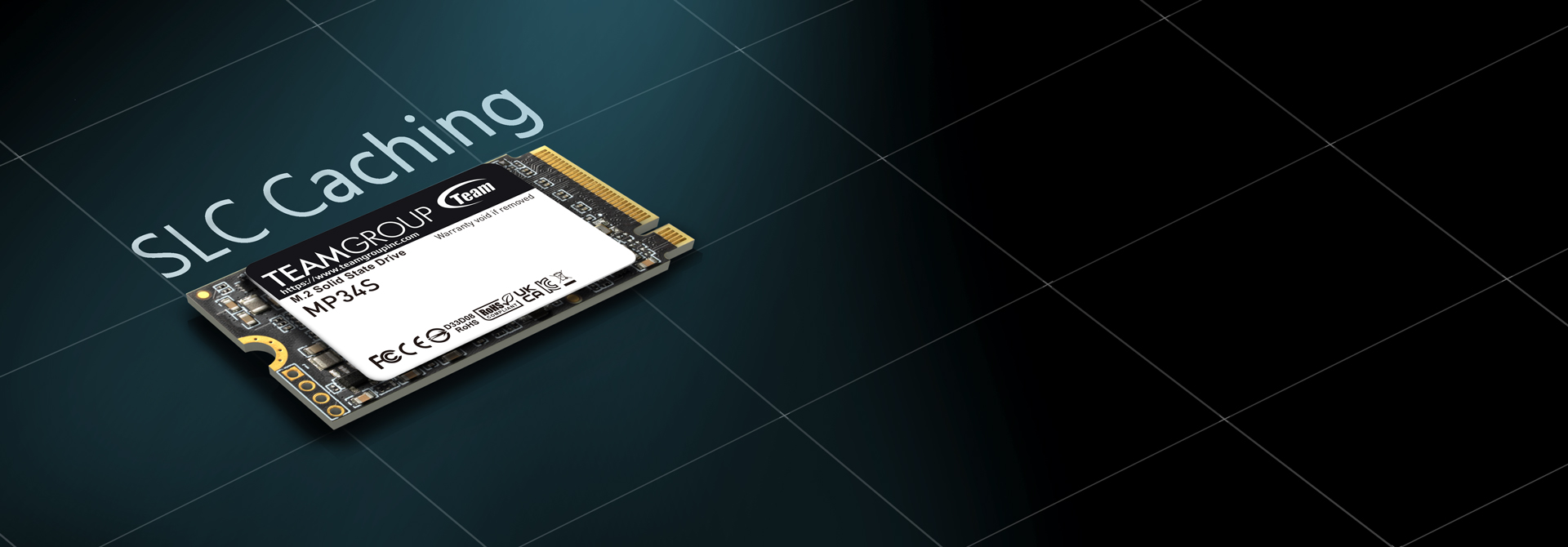

Master of SLC Caching

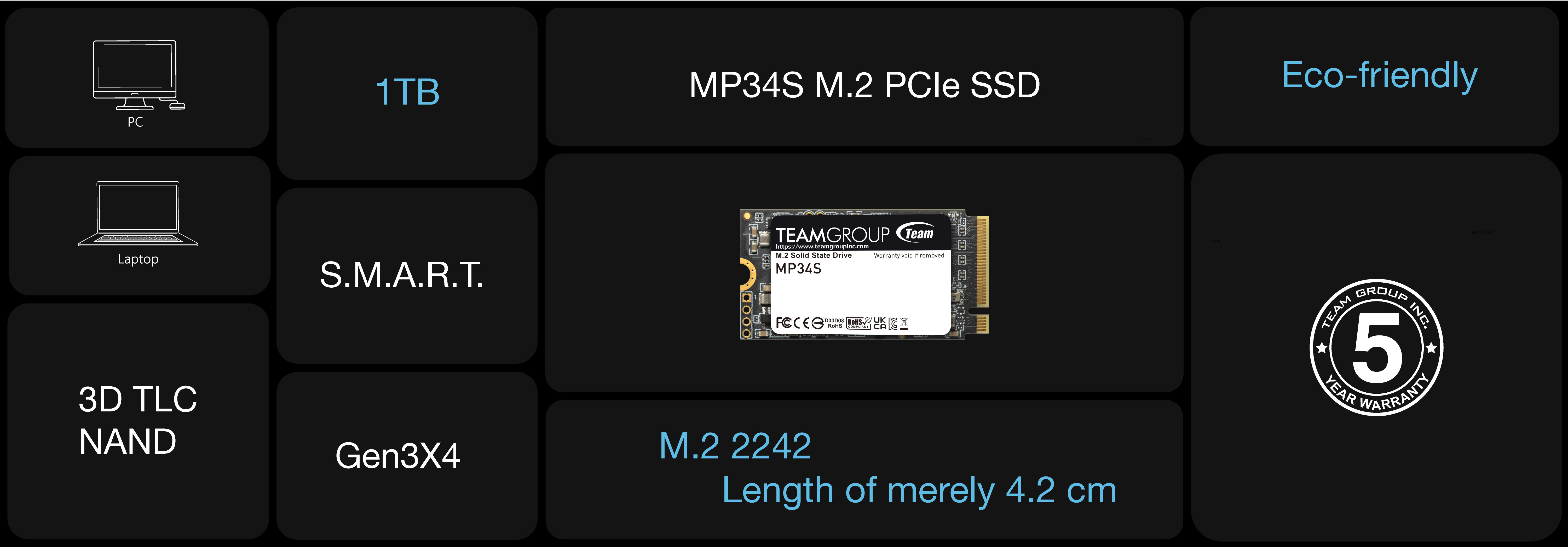

MP34S M.2 2242 PCIe SSD adopts the PCIe Gen3x4 interface and supports SLC Caching and NVMe 1.3 standards. It delivers exceptional continuous read/write speeds of up to 2,500/2,200 MB/s, offering a smooth user experience.

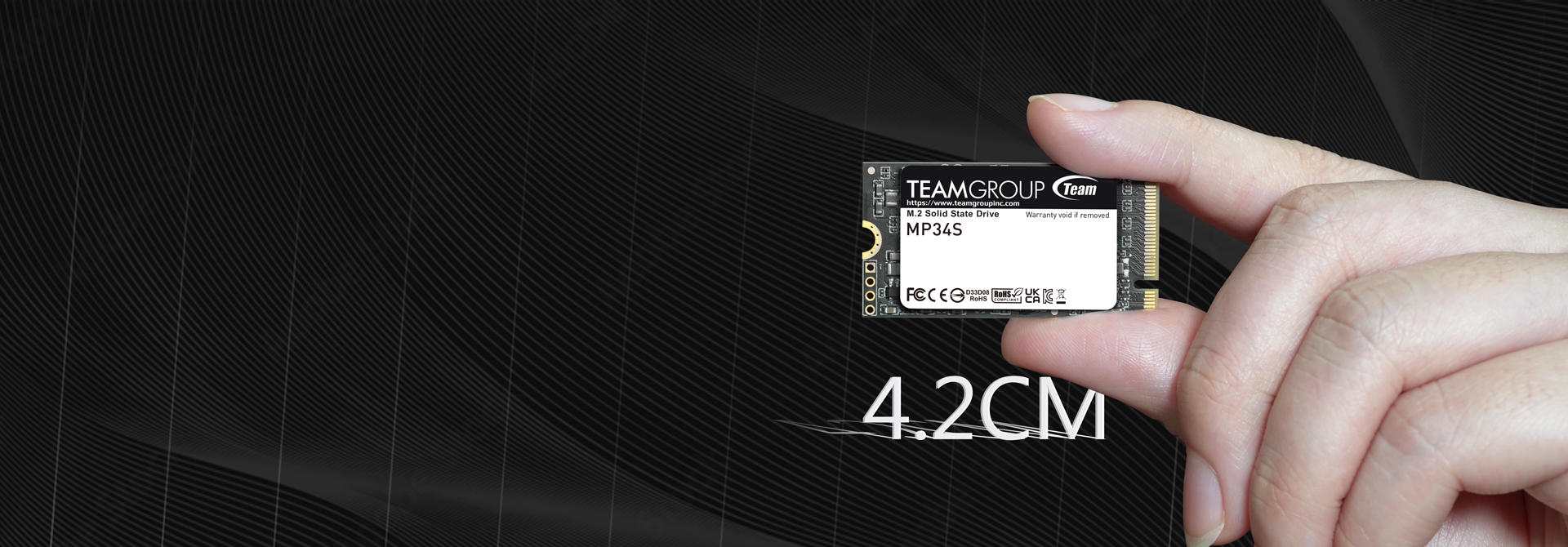

Master magician of capacity
MP34S M.2 2242 PCIe SSD adopts 3D TLC flash memory with a length of merely 4.2 cm. It comes in a variety of storage capacity options of 256GB, 512GB, 1TB and 2TB. It is a master magician of capacity catering to varying needs in all fields.

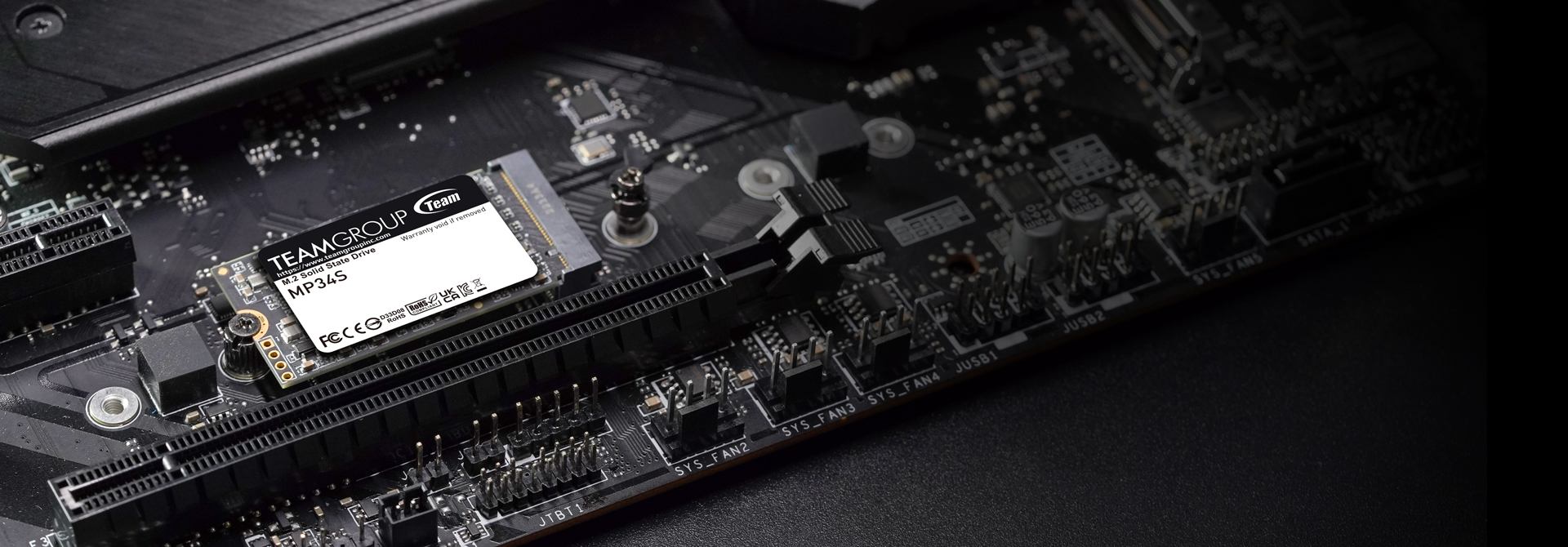

Master of impeccable compatibility
MP34S M.2 2242 PCIe SSD is compatible with handheld game consoles, tablet computers, touchscreen laptops, lightweight laptops, NUC gadgets, and all mainstream motherboards. It is a master of impeccable compatibility applicable to every device.
Master of environmental protection, guardian of Earth
It is a master of environmental protection contributing to conserving Earth. All manufacturing processes take place in a lead-free eco-friendly environment in compliance with RoHS, REACH, and ESG standards. The packaging is made with 100% recyclable eco-friendly materials.

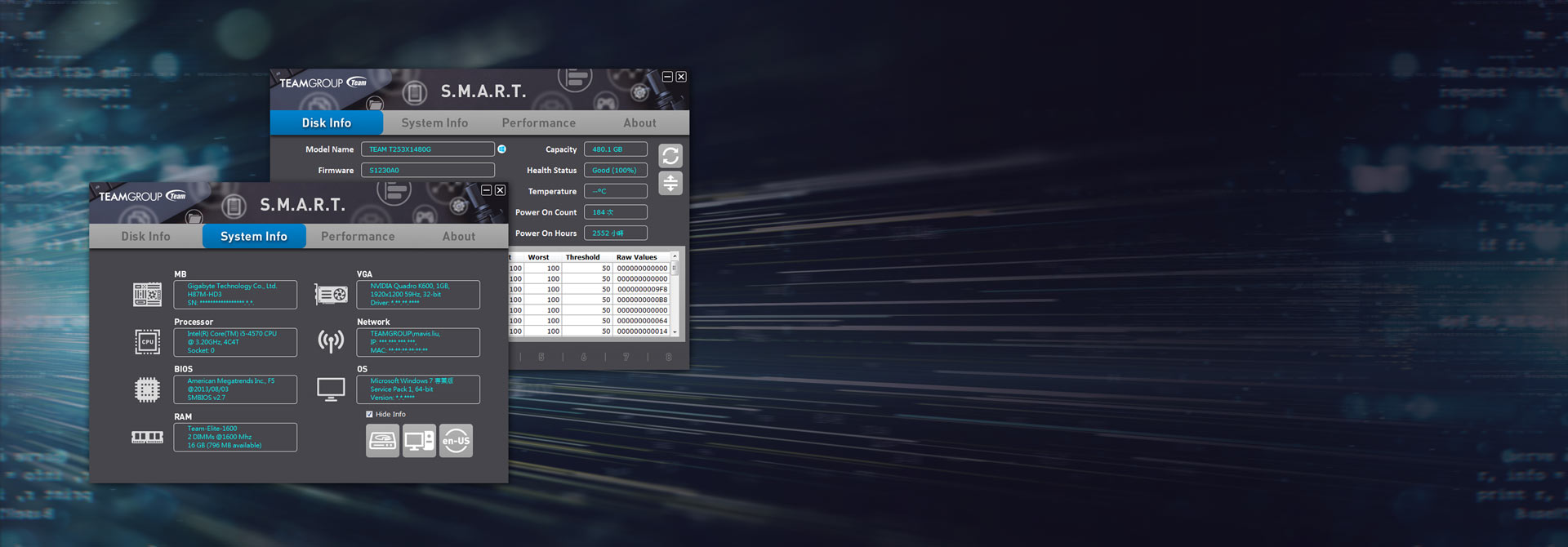

Master of intelligent health monitoring
It is equipped with the exclusive patented S.M.A.R.T. intelligent monitoring software to monitor SSD status at all times. Through fast and easy setting and inspection, it monitors SSD quality and performance.
Master of after-sales services
MP34S M.2 2242 PCIe SSD comes with a five-year warranty. It is a master of after-sales services that has been through rigorous testing and quality control to ensure fine quality for your reassurance.
More Product Specifications
Interface
PCIe Gen3x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
512GB Read/Write：up to 210K / 380K
1TB Read/Write：up to 250K / 400K
1TB Read/Write：up to 250K / 400K
Weight
5g
Dimensions
42(L) x 22(W) x 3.7(H) mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1,500G/0.5ms
MTBF
1,500,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the following operating systems:
- Windows 11/ 10 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
