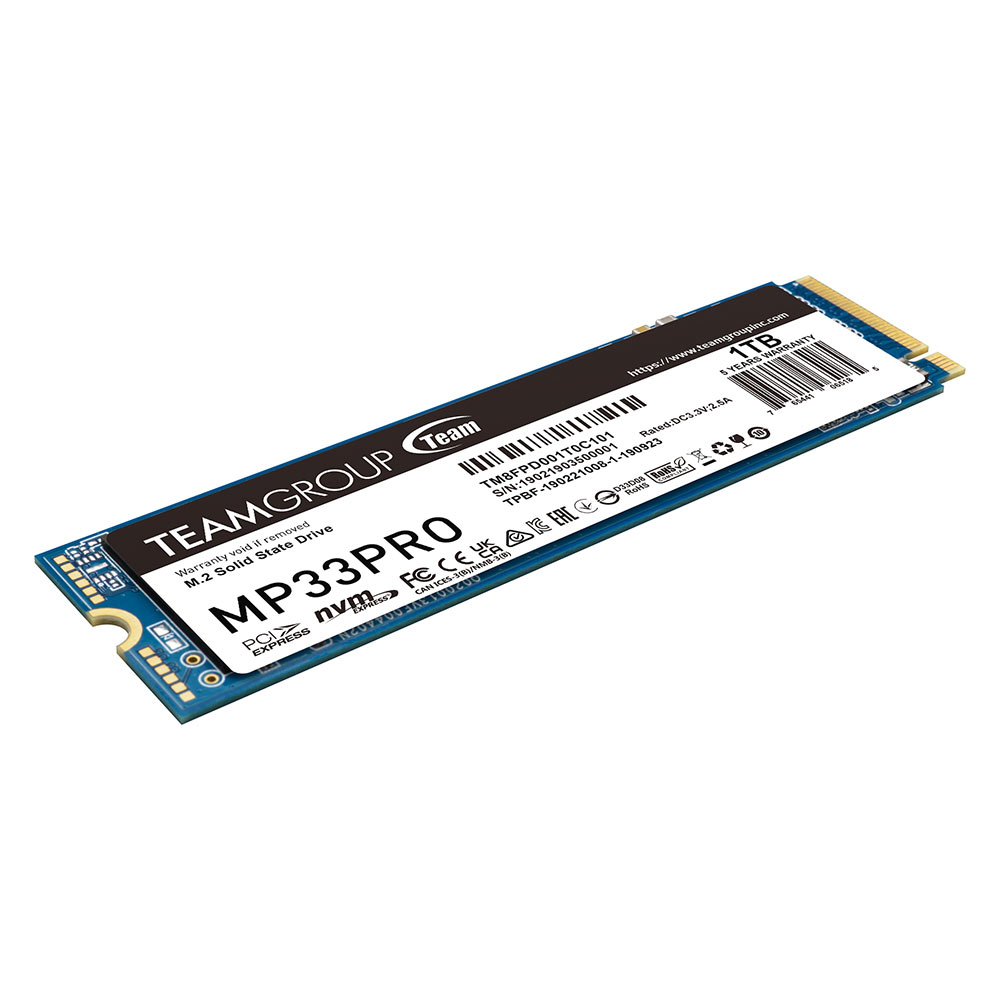

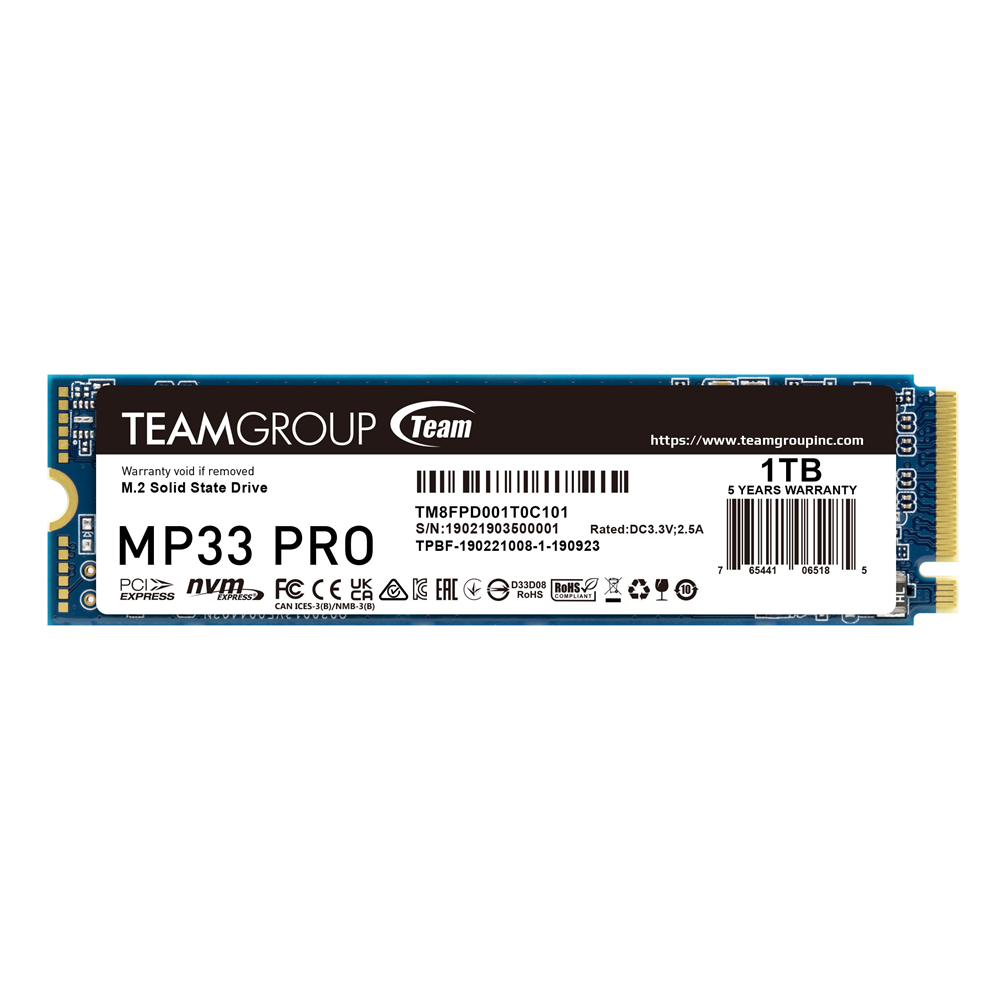

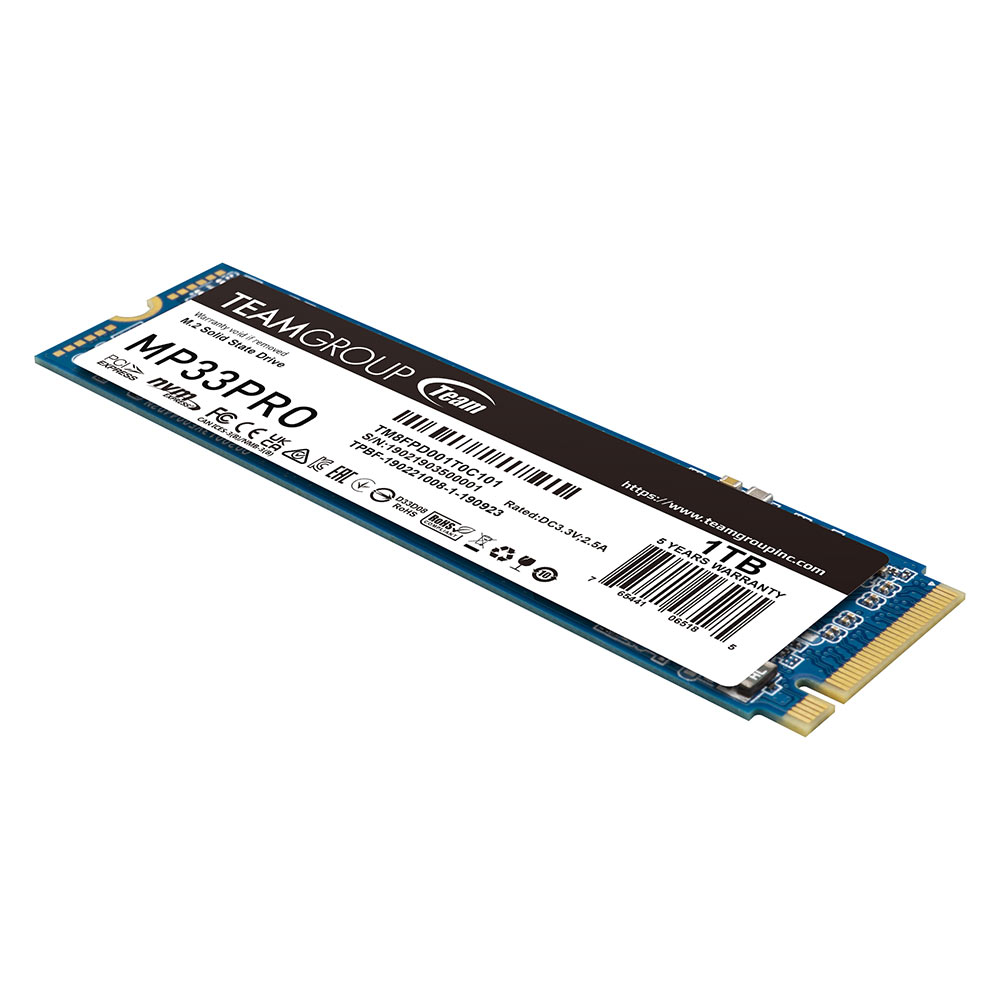

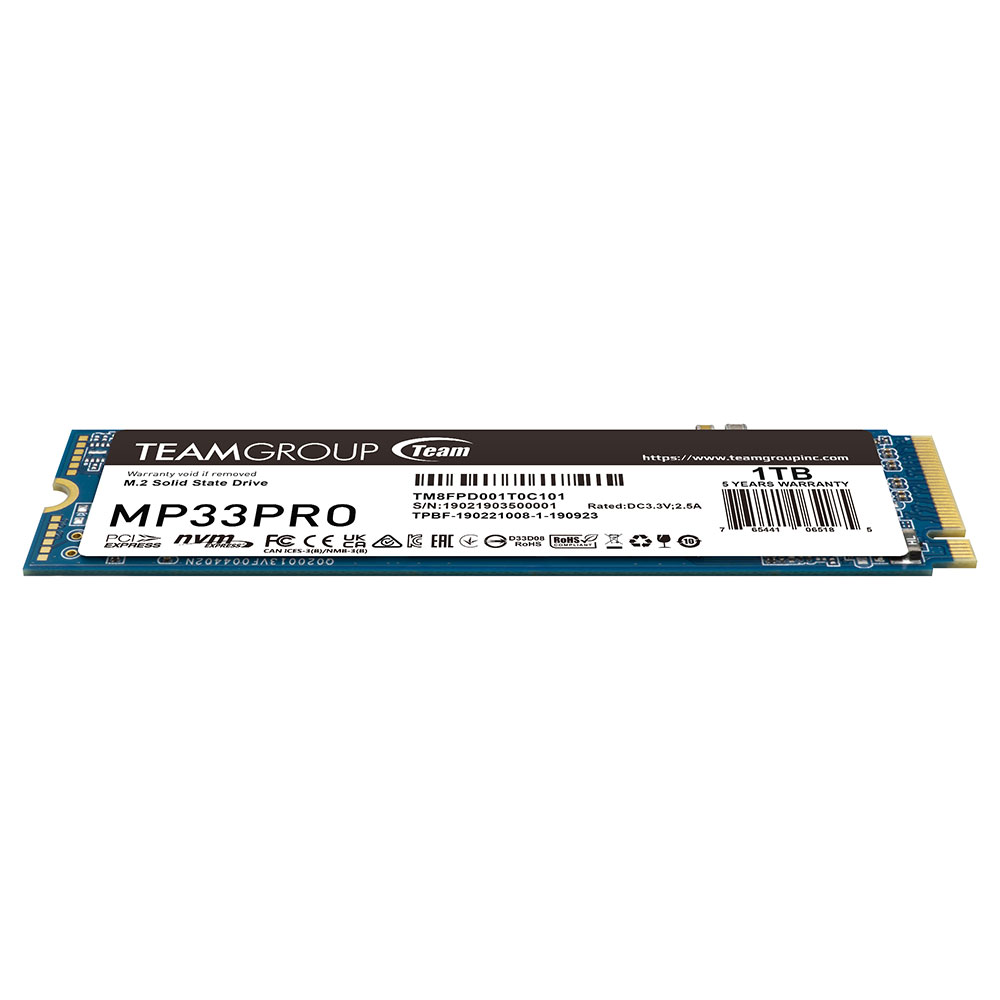

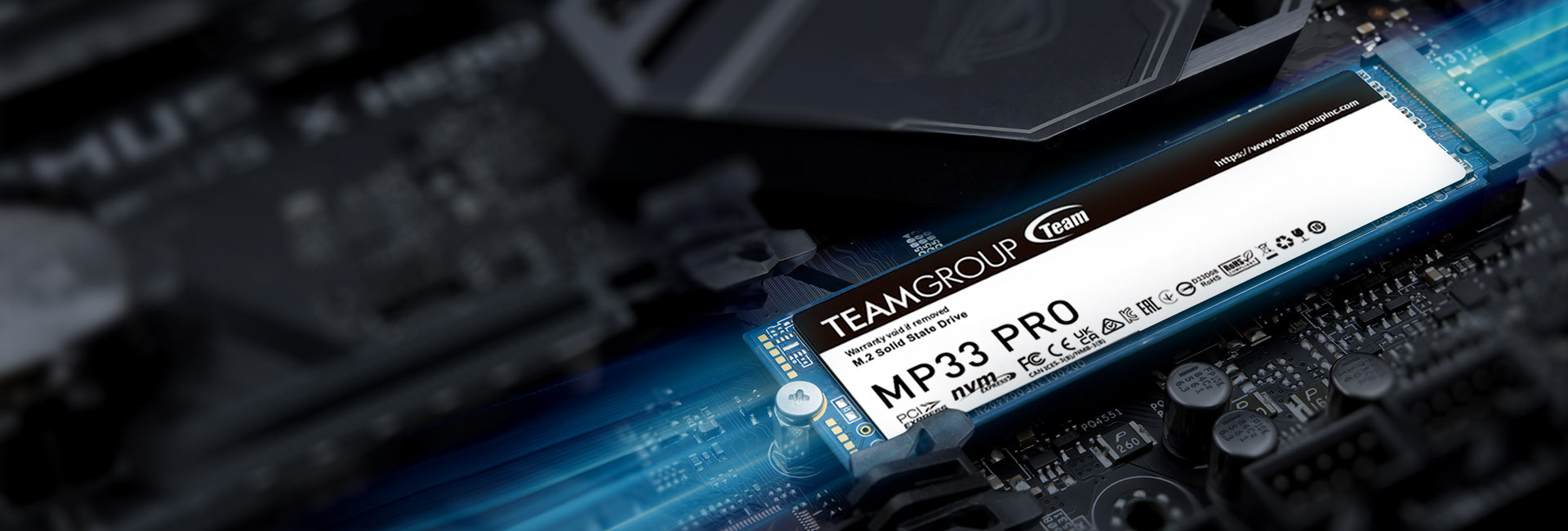

MP33 PRO M.2 PCIe SSD
Feature
- Once you've used the high-speed PCIe, you will never go back
- High-speed reading and writing for more efficiency
- Stable and durable- Not only fast, but reliable
- Up to 2TB of storage capacity
- Five year warranty providing customers with peace of mind
Introduction
What are you waiting for? Experience PCIe right now!
With the highly compatible M.2 2280 specification and PCIe Gen3 x4 interface, it is three to four times faster than SATA SSD, perfect for DIY enthusiasts and gamers who want to experience the ultimate performance of PCIe.

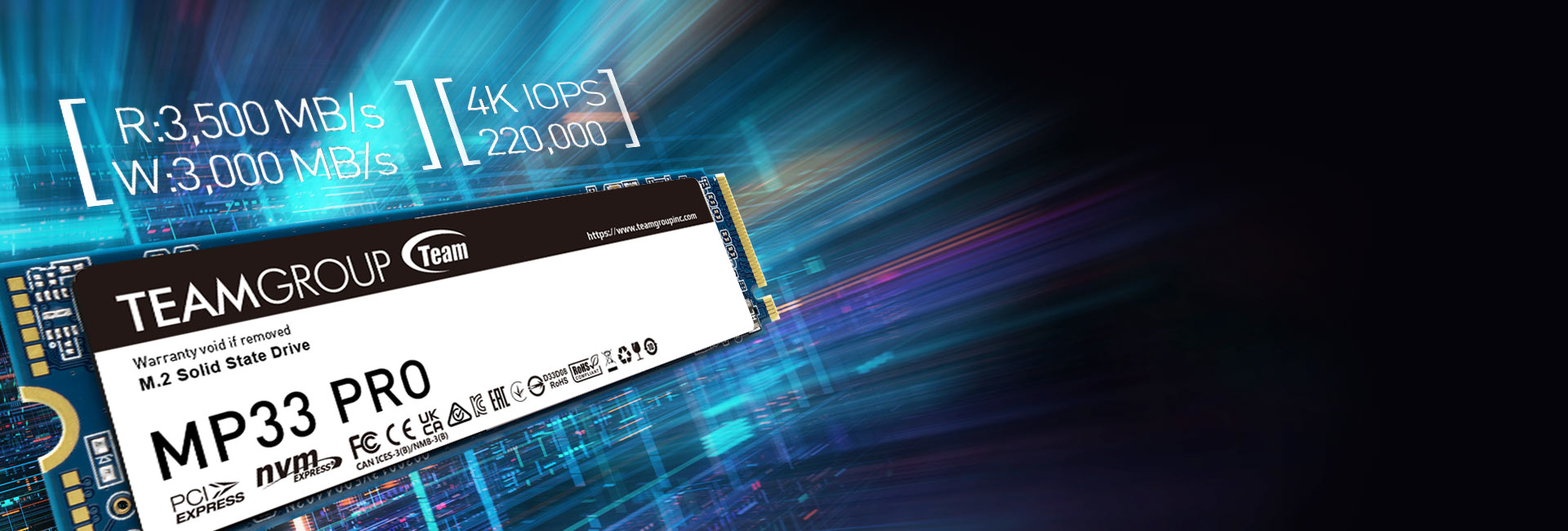

Processing massive amount of data every second- Working more efficiently
With a powerful high-speed of up to 3,500/3,000 MB/s and 4K IOPS 220,000 random read/write capability, you will be more efficient and confident in every case, whether you are creating video/audio contents or loading games.

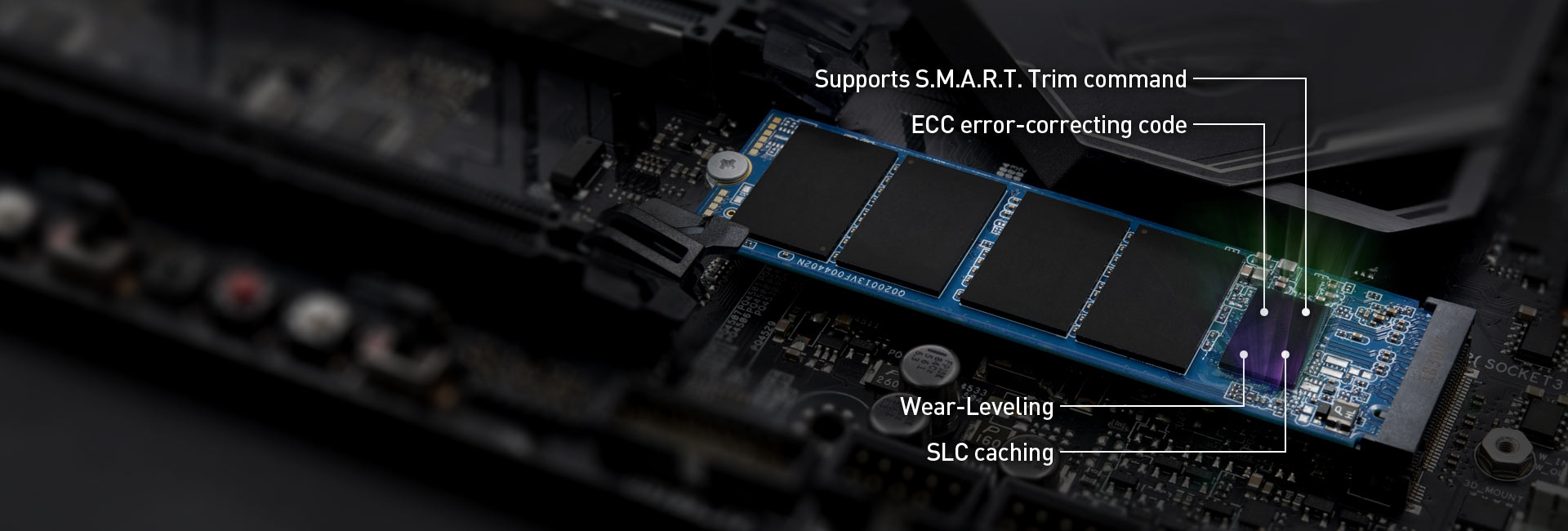

Stable and durable- Not only fast, but reliable
The smart algorithm management mechanism are able to ensure operation efficiency, prolong the service life of the solid state drive and bring it to its maximum performance. It is a reliable and trustworthy choice for data storage.
Up to 2TB of storage capacity
The mainstream capacity up to 2TB is specially designed for professional users, allowing you to store a large amount of high quality materials when making video/audio creation and graphic design, effectively expanding your storage space.
Five year warranty providing customers with peace of mind
MP33 PRO has passed TEAMGROUP's rigorous quality testing, and the five year warranty will give you peace of mind.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| MP33 PRO M.2 PCIe SSD | 2TB | 3,500 MB/s | 3,000 MB/s | 1000TBW | NO | TM8FPD002T0C101 | ADD |
| MP33 PRO M.2 PCIe SSD | 1TB | 3,500 MB/s | 3,000 MB/s | 600TBW | NO | TM8FPD001T0C101 | ADD |
| MP33 PRO M.2 PCIe SSD | 512GB | 3,500 MB/s | 3,000 MB/s | 400TBW | NO | TM8FPD512G0C101 | ADD |
More Product Specifications
Interface
PCIe Gen3x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
Weight
6g
Dimensions
80(L) x 22(W) x 3.8(H) mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1,500G/0.5ms
MTBF
2,000,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the following operating systems:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- M.2 SSD Installation Instructions
18.Jan.2021
