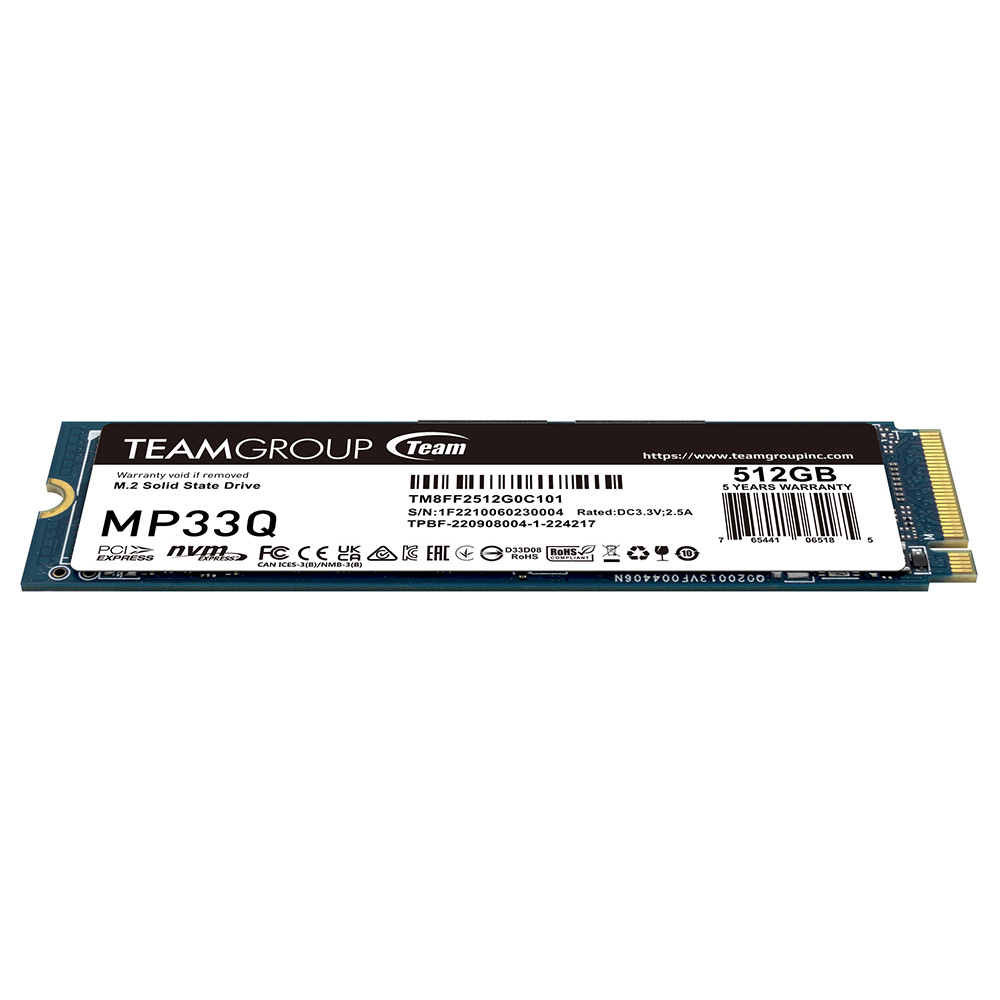

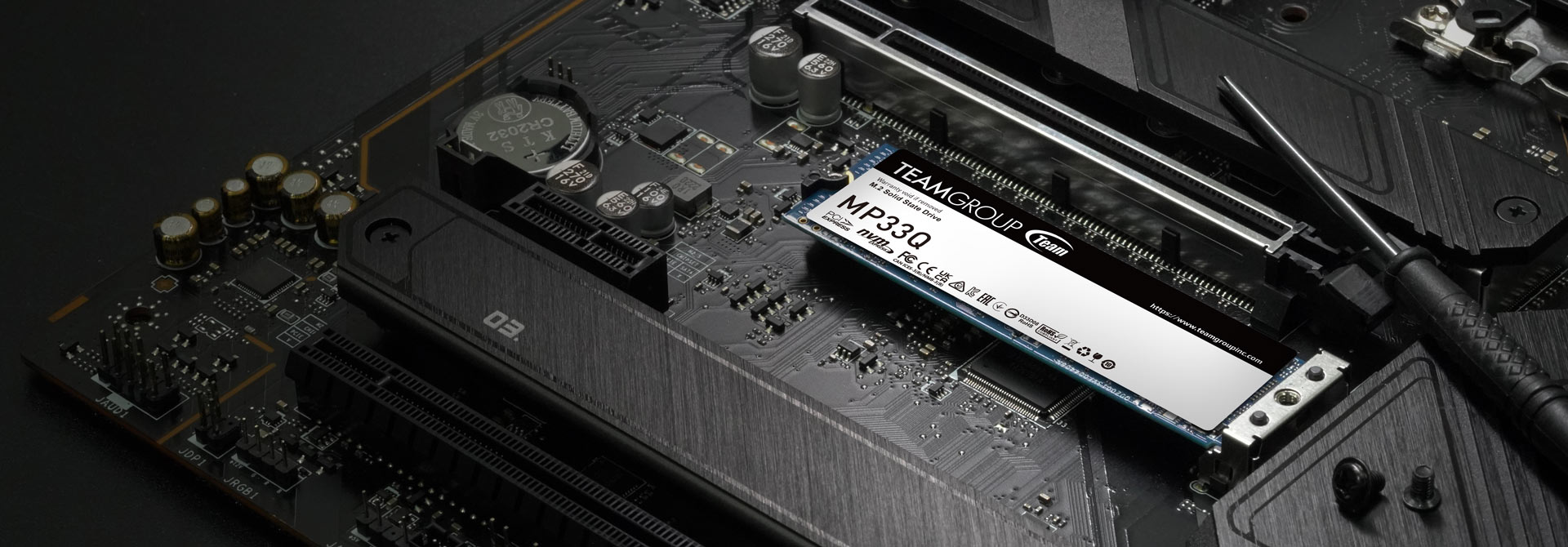

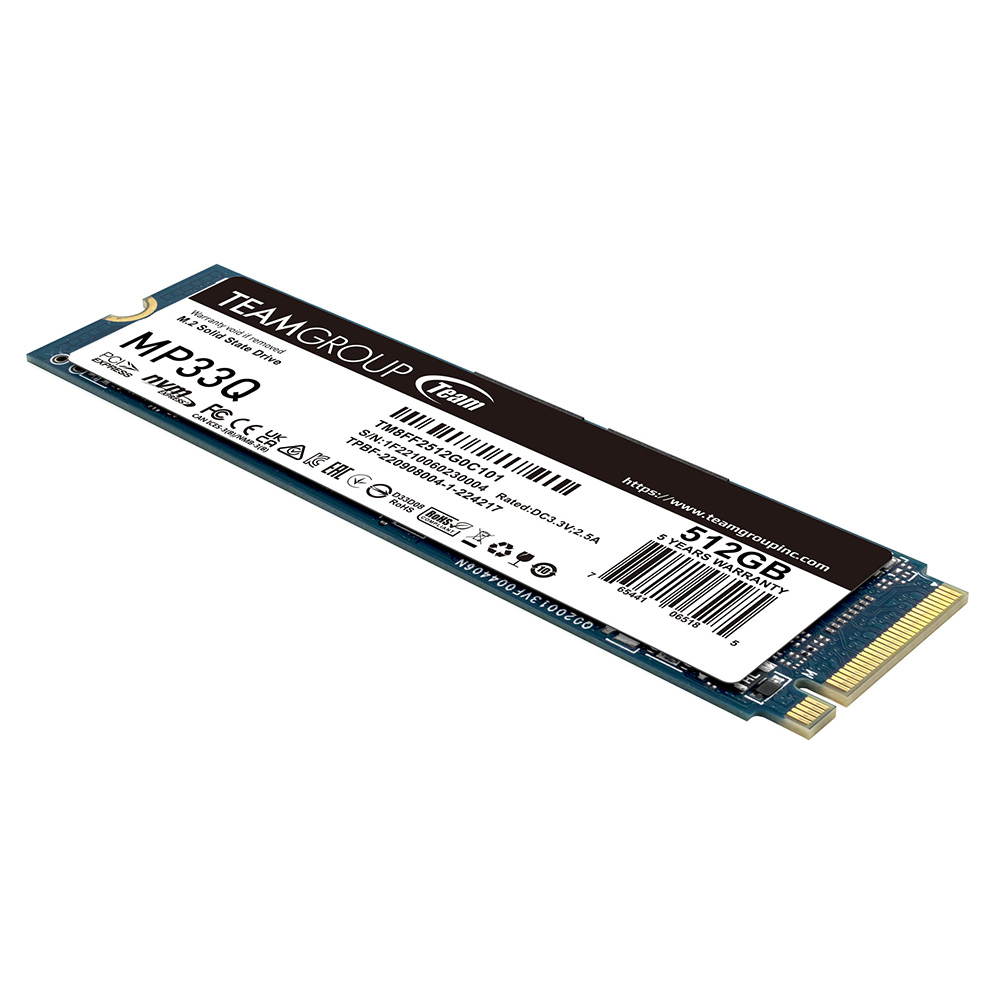

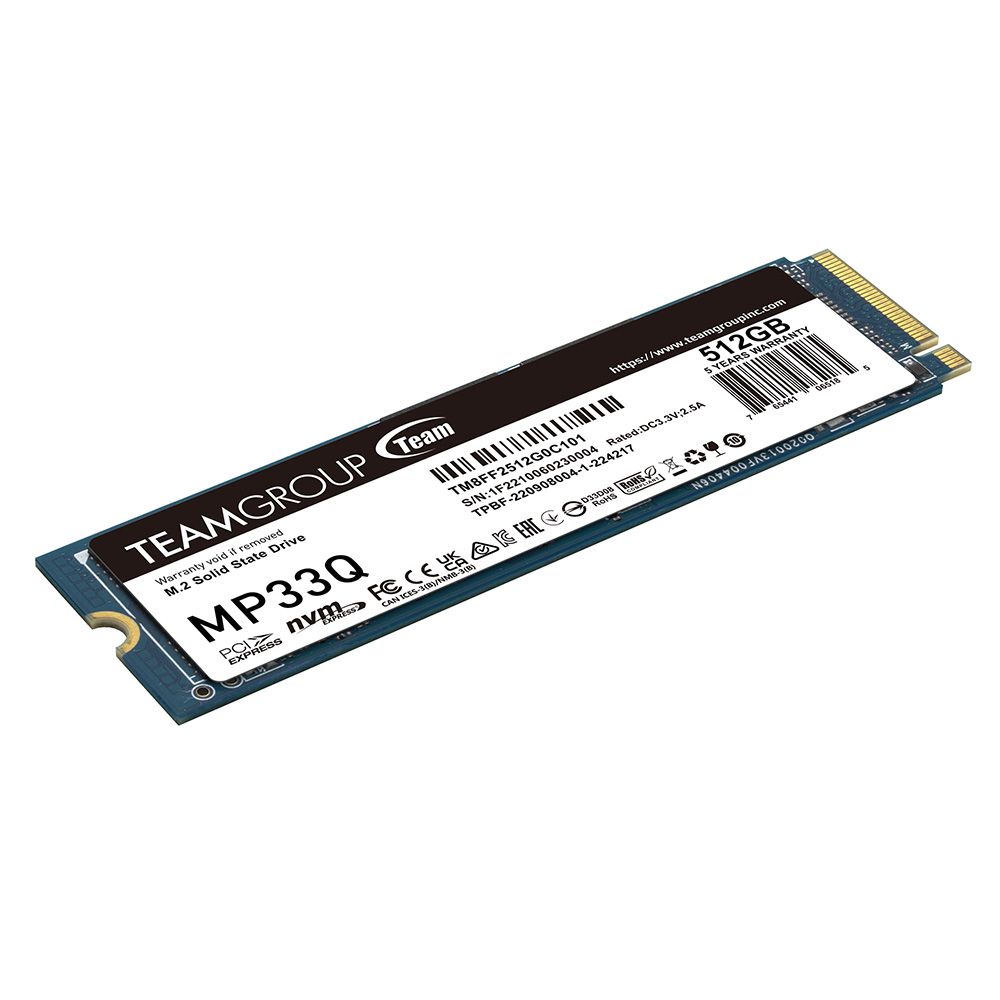

MP33Q M.2 PCIe SSD
Feature
- Enjoy PCIe performance at an affordable price
- Expanded 3D QLC storage space
- TEAMGROUP exclusive intelligent monitoring
- Eco-friendly material contributing to environmental protection
- Five-year warranty as a sturdy backup
- Where to buyProduct compare
Introduction

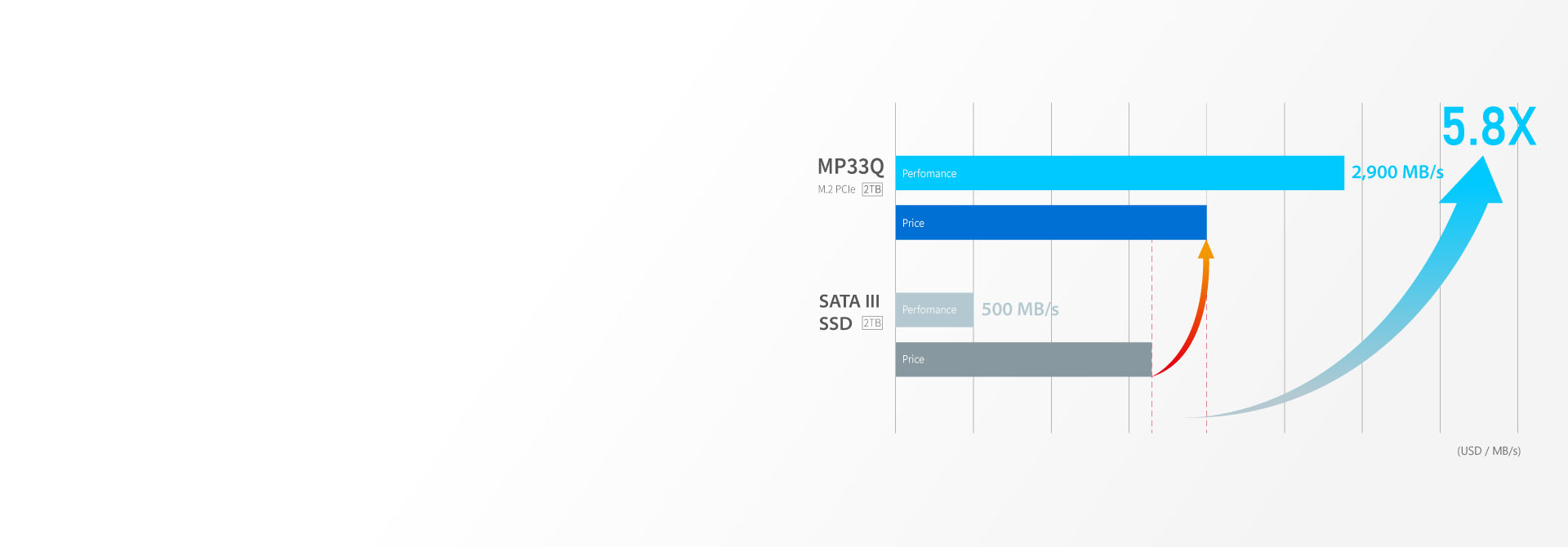

Enjoy PCIe performance at an affordable pric
MP33Q M.2 PCIe SSD adopts SLC Caching technology, featuring read/write speeds of up to 2,900 MB/s and 1,850 MB/s. It is an affordable choice for users to enjoy the performance fivefold superior to SATA III SSD.
Expanded 3D QLC storage space
It adopts 3D QLC flash memory, PCIe Gen3x4 interface and NVMe standards. The maximum capacity is 2TB, making it a prime expanded storage solution for installation and storage systems, programs, games and files.
TEAMGROUP exclusive intelligent monitoring
TEAMGROUP's exclusively developed SSD intelligent monitoring software S.M.A.R.T. monitors SSD status at all times. Also, through fast and easy setting and inspection, it monitors SSD quality and performance.

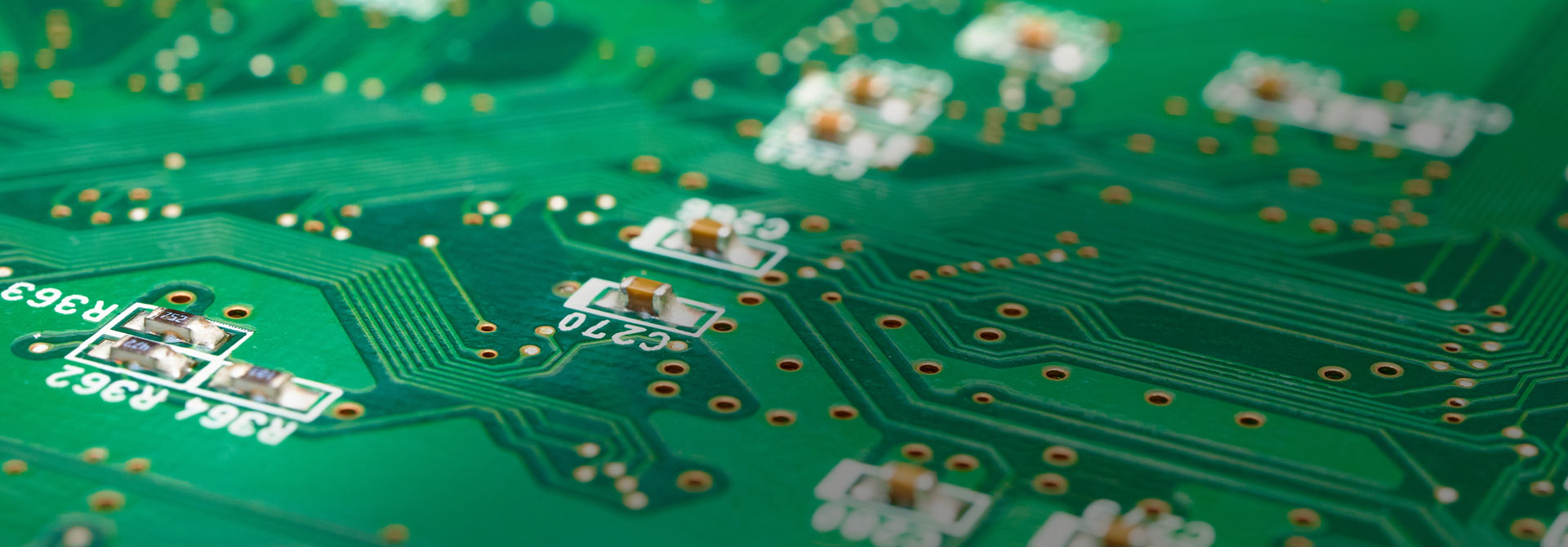

Eco-friendly material contributing to environmental protection
MP33Q M.2 PCIe SSD uses a lead-free PCB and has passed environmental protection certifications, including RoHS, REACH, and ESG, contributing to sustainability endeavors.
Five-year warranty as a sturdy backup
MP33Q M.2 PCIe SSD comes with a five-year warranty. It has been through rigorous testing and quality control to ensure fine quality. We went the extra mile just for your reassurance.
| Model | Capacity | Sequential Read | Sequential Write | Terabyte Written | DRAM Cache | TEAM P/N | Compare |
|---|---|---|---|---|---|---|---|
| MP33Q M.2 PCIe SSD | 2TB | 2,900 MB/s | 1,850 MB/s | 480TBW | NO | TM8FF2002T0C101 | ADD |
| MP33Q M.2 PCIe SSD | 1TB | 2,900 MB/s | 1,850 MB/s | 240TBW | NO | TM8FF2001T0C101 | ADD |
| MP33Q M.2 PCIe SSD | 512GB | 2,750 MB/s | 1,350 MB/s | 120TBW | NO | TM8FF2512G0C101 | ADD |
More Product Specifications
Interface
PCIe Gen3x4 with NVMe
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 85˚C
IOPS
512GB：Read up to 80K ; Write up to 240K
1TB：Read up to 130K ; Write up to 370K
2TB：Read up to 220K ; Write up to 410K
1TB：Read up to 130K ; Write up to 370K
2TB：Read up to 220K ; Write up to 410K
Weight
7g
Dimensions
80(L) x 22(W) x 3.7(H) mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
1,500G/0.5ms
MTBF
1,800,000 Hours
Operating System
Compatible with Intel and AMD platforms and has one of the foll owing operating systems:
- Windows 11 / 10 / 8.1 / 8 / 7 / Vista
- Linux 2.6.33 or later
Warranty
5-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
