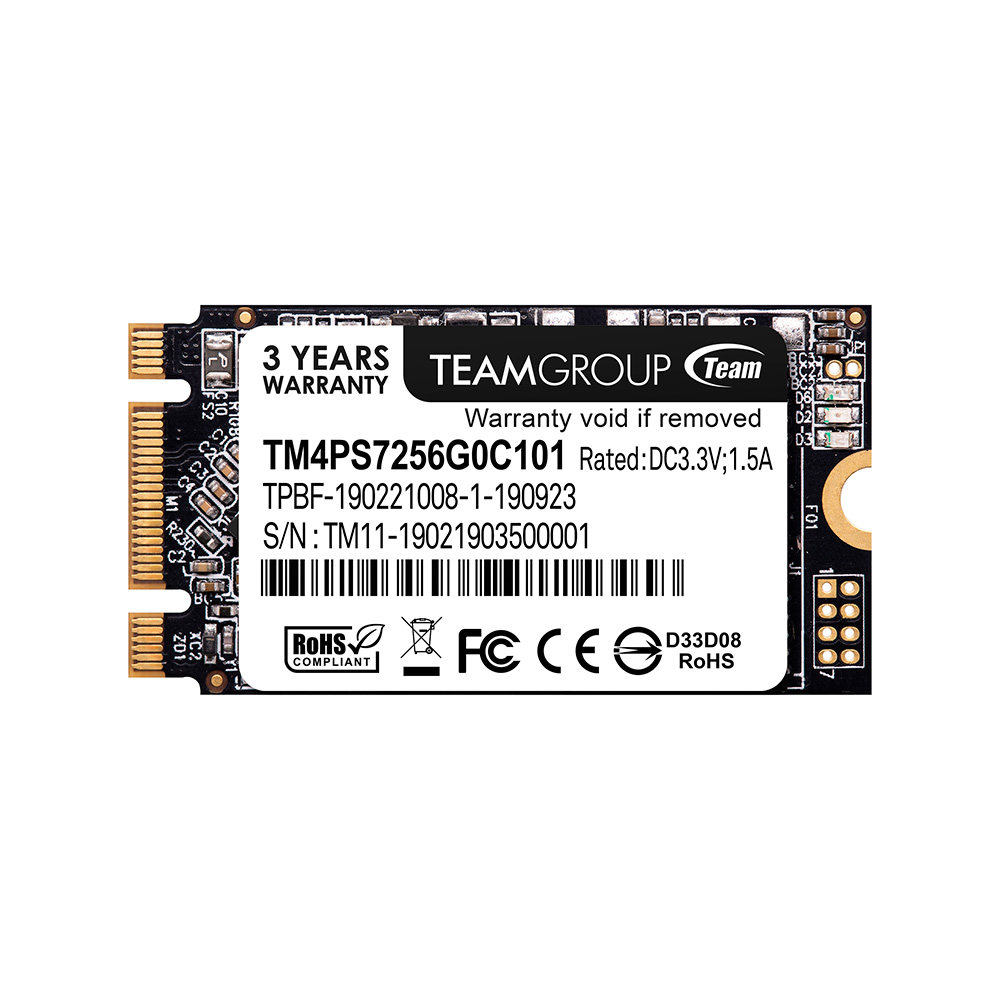

MS30 M.2 2242 SATA SSD
Feature
- Supports Intel's SRT
- Supports S.M.A.R.T.
- Supports TRIM
- New Generation power saving technology that extends the battery life
- 3-year product warranty. Free technical support service
Introduction
Next generation M.2 SATA solid state drive

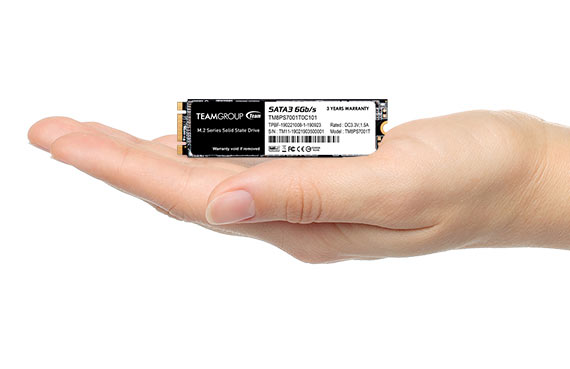

TEAMGROUP MS30 M.2 SATA solid state drive is the next generation M.2 (NGFF, Next Generation Form Factor) high speed solid state drive. It provides mobile computing devices an excellent storage performance with ultra-compact size and lightweight.
High speed transfer, high compatibility and high capacity

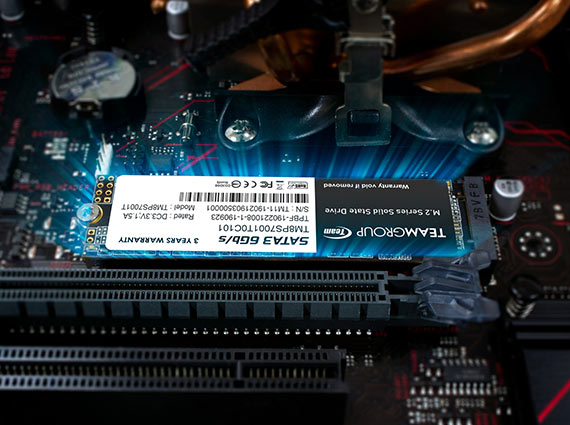

MS30 M.2 SATA solid state drive uses the latest SATA III 6Gb/s transfer interface and offers excellent transfer efficiency and compatibility. For different environment usage, MS30 comes in two sizes, 22x80mm and 22x42mm, and both of them are fully compliant with the M.2 specification. In addition, the capacity is increased to 2TB, which is capable of satisfying all kinds of specification requirements for motherboards, laptops, mobile devices and developing embedded devices.
Smart Response Technology

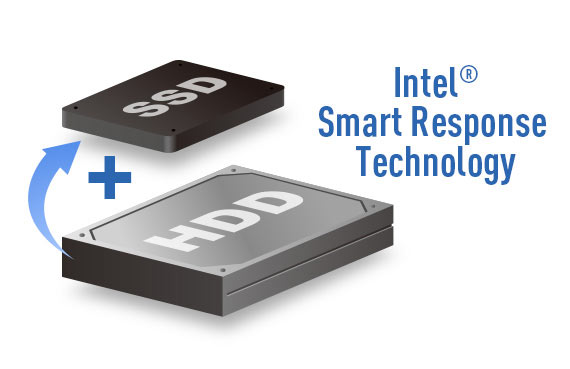

Intel Smart Response Technology is supported. MS30 M.2 SATA solid state drive allows user to set the solid state drive as the cache memory between the hard disk drive (HDD) and the computer, so the hard drive with high capacity can have a fast response time like the system of solid state drive and improves the overall working efficiency.
Comprehensive smart technology

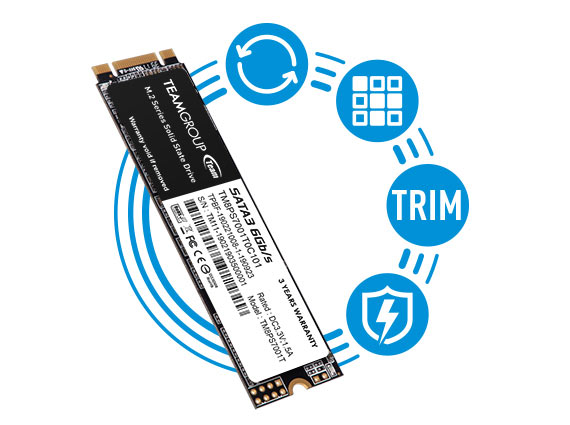

MS30 M.2 SATA solid state drive supports advanced garbage collection, wear leveling, TRIM command and power saving function of the next generation. It provides excellent solution for performance, power efficiency and service life.
Model |
Capacity |
Sequential Read |
Sequential Write |
Terabyte Written |
DRAM Cache |
TEAM P/N |
Compare |
---|---|---|---|---|---|---|---|
MS30 M.2 2242 SATA SSD | 512GB | up to 500 MB/s | up to 430 MB/s | 256TBW | NO | TM4PS7512G0C101 | ADD |
MS30 M.2 2242 SATA SSD | 256GB | up to 500 MB/s | up to 400 MB/s | 128TBW | NO | TM4PS7256G0C101 | ADD |
MS30 M.2 2242 SATA SSD | 128GB | up to 500 MB/s | up to 300 MB/s | 64TBW | NO | TM4PS7128G0C101 | ADD |
More Product Specifications
Interface
SATA III 6Gb/s
Voltage
DC +3.3V
Operation Temperature
0˚C ~ 70˚C
Storage Temperature
-40˚C ~ 80˚C
Weight
5g
Dimensions
42(L) x 22(W) x 3.5(H) mm
Humidity
RH 90% under 40°C (operational)
Vibration
80Hz~2000Hz/20G
Shock
500 G, 2 m/sec
MTBF
1,500,000 Hours
Operating System
System Requirements:
- Windows 11 / 10 / 8.1 / 8 / 7
- Linux 2.6.33 or later
Warranty
3-year limited warranty
Notes
- 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
- Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard.
- Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
- All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.We reserve the right to modify product specifications without prior notice.
- M.2 SSD Installation Instructions
